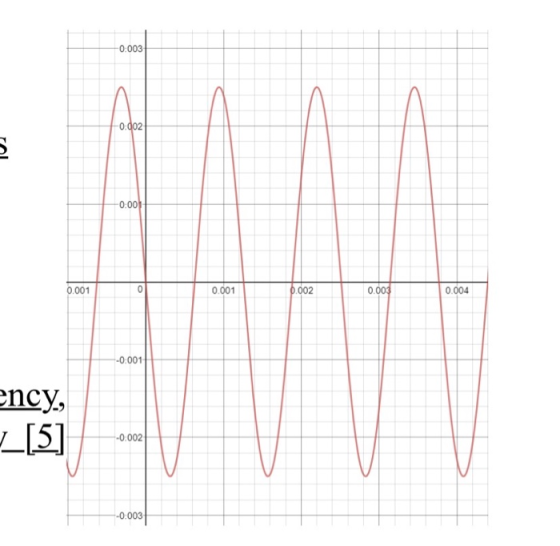

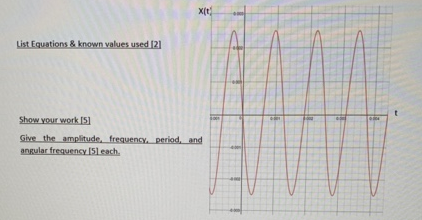

Given the Graph below, Find the amplitude of oscillation, frequency, period and angular frequency.
![0:003 -0:002 0:001- 0.004 0.001 0.002 0.003 0.001 -0:001 ncy [5] -0:002 -0:003](http://img.homeworklib.com/questions/6cbbfcf0-1975-11ea-b199-e1b871adced5.png?x-oss-process=image/resize,w_560)
Homework Answers
From graph it's amplitude is equal to
A = 0.0025 unit
It's frequency will be
= 1/(0.0035 - 0.0022) = 769.23 Hz
It's time period will be
T = 0.0035 - 0.0022 = 0.0013 unit
Its angular frequency
Q1 - Two identical blocks are attached to identical springs. The oscillation amplitude of Block A...
Q1 - Two identical blocks are attached to identical springs. The oscillation amplitude of Block A is 10cm; and the amplitude of Block B is 5 cm. Which block has a greater oscillation period? A- Block A B- Block B C- The periods are the same for both Blocks. Q2 - For an object in oscillation, which of the following is defined to be the maximum displacement from the equilibrium position. A- Period B- Frequency C- Angular frequency D- Amplitude...
The oscillation represented by the graph below has a frequency of 0.300 Hz, an amplitude of...
The oscillation represented by the graph below has a frequency of 0.300 Hz, an amplitude of 2.00 m and the displacement whent-0 is 1.50 m. The oscillation can be represented by an equation of the ormy" γ sin (+や). Calculate the vai e in radians of the phase shift, calculate the value (n radians) of the phase shift. agiving your answer to giving your answer to 3 significant figures do not include the units with your answer. Just the numerical...
A sinusoidal force with a given amplitude is applied to an oscillator. To maintain the largest amplitude oscillation, t...
A sinusoidal force with a given amplitude is applied to an oscillator. To maintain the largest amplitude oscillation, the frequency of the applied force should be twice the natural frequency of the oscillator. unrelated to the natural frequency of the oscillator. the same as the natural frequency of the oscillator. half the natural frequency of the oscillator. Odetermined from the maximum speed desired.
Question9 The system response for the closed loop Ziegler From the graph find the critical period Pcr? Nichlos is shown below. Using the graph shown and the ZN formulas : 45 Constant amplitude os...
Question9 The system response for the closed loop Ziegler From the graph find the critical period Pcr? Nichlos is shown below. Using the graph shown and the ZN formulas : 45 Constant amplitude oscillation 40- 9 35 Kcr 50 30 0 100 200 300 400 Time (sec)
Question9 The system response for the closed loop Ziegler From the graph find the critical period Pcr? Nichlos is shown below. Using the graph shown and the ZN formulas : 45 Constant amplitude...
The graph above represents the position data for an air track glider attached to a spring....
The graph above
represents the position data for an air track glider attached to a
spring. Given the graph above
a. Determine the
amplitude of the oscillation.
b. Determine the
period of the oscillation.
c. Determine the
angular frequency of the oscillation.
d. Determine the phase
constant of the oscillation.
e. Determine the
maximum acceleration of the glider.
12 10 Position (cm)6 0.55 22.5 3 3.5 44.55 Time(s)
Q3 (40 p.) Find the oscillation frequency and oscillation condition for the circuit given below. *...
Q3 (40 p.) Find the oscillation frequency and oscillation condition for the circuit given below. * Based on your findings, fill the table. Your answer R HE C HE с R Osc. Freq. th R RB Osc. Cond.
In a spring block system the oscillation frequency is 4.00 Hz. If the oscillation amplitude is...
In a spring block system the oscillation frequency is 4.00 Hz. If the oscillation amplitude is 0.400 m, determine the position, speed and acceleration at t = 0.500 s
In a spring block system the oscillation frequency is 8.00 Hz. If the oscillation amplitude is...
In a spring block system the oscillation frequency is 8.00 Hz. If the oscillation amplitude is 0.400 m, determine the position, speed and acceleration at t = 8.00 s.
13) Find a period of oscillation of this physical pendulum. M1 = 0.5 kg , L1...
13) Find a period of oscillation of this physical pendulum. M1 = 0.5 kg , L1 = 1.00 m M2 = 1.0 kg, R2 = 20 cm, a solid disk 14). Describe the oscillation ( complete an expression x(t) for that oscillation). An object being displaced on the frictionless table to the left from equilibrium position at distance 0.3 m while it moving to the left with a speed 0.6 m/s. Coefficient of spring 100 N/m, and mass of the...
Calculate the amplitude, period and frequency of the voltage waveform shown in the graph.
The amplitude, period and frequency of the voltage waveform shown in the graph below is:
The oscillation represented by the graph below has a frequency of 0.300 Hz, an amplitude of 2.00 m and the displacement whent-0 is 1.50 m. The oscillation can be represented by an equation of the ormy" γ sin (+や). Calculate the vai e in radians of the phase shift, calculate the value (n radians) of the phase shift. agiving your answer to giving your answer to 3 significant figures do not include the units with your answer. Just the numerical...
A sinusoidal force with a given amplitude is applied to an oscillator. To maintain the largest amplitude oscillation, the frequency of the applied force should be twice the natural frequency of the oscillator. unrelated to the natural frequency of the oscillator. the same as the natural frequency of the oscillator. half the natural frequency of the oscillator. Odetermined from the maximum speed desired.
Question9 The system response for the closed loop Ziegler From the graph find the critical period Pcr? Nichlos is shown below. Using the graph shown and the ZN formulas : 45 Constant amplitude oscillation 40- 9 35 Kcr 50 30 0 100 200 300 400 Time (sec)
Question9 The system response for the closed loop Ziegler From the graph find the critical period Pcr? Nichlos is shown below. Using the graph shown and the ZN formulas : 45 Constant amplitude...
The graph above
represents the position data for an air track glider attached to a
spring. Given the graph above
a. Determine the
amplitude of the oscillation.
b. Determine the
period of the oscillation.
c. Determine the
angular frequency of the oscillation.
d. Determine the phase
constant of the oscillation.
e. Determine the
maximum acceleration of the glider.
12 10 Position (cm)6 0.55 22.5 3 3.5 44.55 Time(s)
Q3 (40 p.) Find the oscillation frequency and oscillation condition for the circuit given below. * Based on your findings, fill the table. Your answer R HE C HE с R Osc. Freq. th R RB Osc. Cond.
13) Find a period of oscillation of this physical pendulum. M1 = 0.5 kg , L1 = 1.00 m M2 = 1.0 kg, R2 = 20 cm, a solid disk 14). Describe the oscillation ( complete an expression x(t) for that oscillation). An object being displaced on the frictionless table to the left from equilibrium position at distance 0.3 m while it moving to the left with a speed 0.6 m/s. Coefficient of spring 100 N/m, and mass of the...
