Two converging lenses L1 and L2 have focal lengths of 28 cm and 15 cm , respectively. The lenses are placed 68 cm apart...

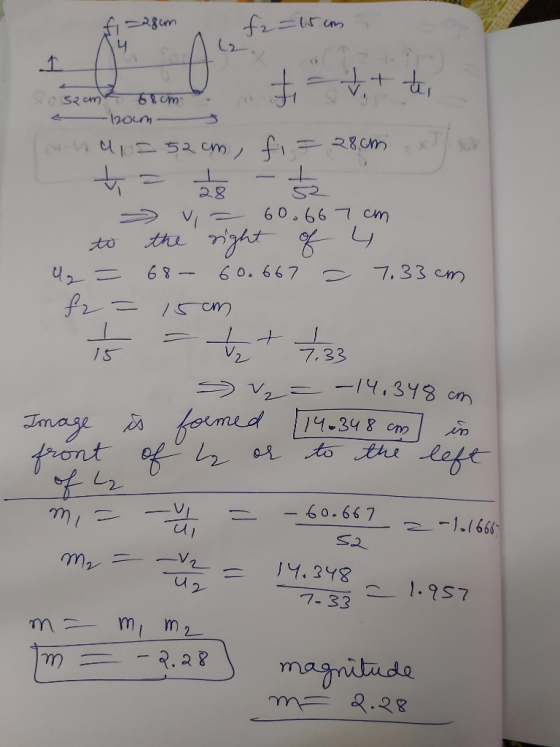

Two converging lenses L1 and L2 have focal lengths of 28 cm and 15 cm , respectively. The lenses are placed 68 cm apart along the same axis, and an object is placed 52 cm from L1 (120 cm from L2 ).
Where is the image formed relative to L2 ?
What is its magnification?
Homework Answers
Add Answer to:
Two converging lenses L1 and L2 have focal lengths of 28 cm and 15 cm , respectively. The lenses are placed 68 cm apart...
Two converging lenses, with focal lengths of f1 = 10.0 cm and f2 = 15.0 cm,...
Two converging lenses, with focal lengths of f1 = 10.0 cm and f2 = 15.0 cm, respectively, are placed 40.0 cm apart. An object is placed 60.0 cm in front of the first lens. (a) Calculate the position, with respect to the second lens, of the final image formed by the combination of the two lenses. (b) Calculate the overall magnification of the final image formed by the combination of the two lenses.
Two converging lenses, each of focal length 15.0 cm, are placed 40.0 cm apart, and an...
Two converging lenses, each of focal length 15.0 cm, are placed 40.0 cm apart, and an object is placed 30.0 cm in front of the first lens. Where is the final image formed, and what is the magnification of the system?
Two 25.0 −cm -focal-length converging lenses are placed 16.0 cm apart. An object is placed 30.0...
Two 25.0 −cm -focal-length converging lenses are placed 16.0 cm apart. An object is placed 30.0 cm in front of one lens. Part A. Where will the final image formed by the second lens be located? Part B. What is the total magnification?
Two converging lenses having focal lengths off, = 11.3 cm and f, - 20.0 cm are...
Two converging lenses having focal lengths off, = 11.3 cm and f, - 20.0 cm are placed d = 50.0 cm apart, as shown in the figure below. The final image is to be located between the lenses, at the position x = 33.3 cm Indicated. 12 Object Final image (5) How far (in cm) to the left of the first lens should the object be positioned? cm (b) What is the overall magnification of the system? (c) is the...
Two converging lenses having focal lengths of 11.0 cm and 21.0 cm are placed 50 cm...
Two converging lenses having focal lengths of 11.0 cm and 21.0 cm are placed 50 cm apart, as shown in Figure P23.44. The final image is to be located between the lenses, at the position indicated. Figure P23.44 (a) How far to the left of the first lens should the object be positioned? cm (b) What is the overall magnification? (c) Is the final image upright or inverted, and is it real or virtual?
wo converging lenses, each of focal length 14.8 cm, are placed 39.6 cm apart, and an...
wo converging lenses, each of focal length 14.8 cm, are placed 39.6 cm apart, and an object is placed 30.0 cm in front of the first lens. Where is the final image formed? The image is located cm ---Location---behind the second lens.in front of the first lens.in front of the second lens. What is the magnification of the system? M = ✕
Two converging lenses with focal lengths of f1 = 10.2 cm and f2 = 20.5 cm...
Two converging lenses with focal lengths of f1 = 10.2 cm and f2
= 20.5 cm are positioned D1 = 54.7 cm apart, as shown in the figure
below.
The final image is to be located D2 = 28.7 cm between the
lenses.
a) How far to the left of the first lens should the object be
placed in centimetres?
b) What is the overall magnification?
Object Final image
Two converging lenses having focal lengths of f1 = 10.3 cm and f2 = 20.0 cm...
Two converging lenses having focal lengths of f1 =
10.3 cm and f2 = 20.0 cm are placed d = 50.0 cm apart,
as shown in the figure below. The final image is to be located
between the lenses, at the position x = 30.7 cm indicated.
Two converging lenses having focal lengths of 1 10.3 cm and 2-20.0 cm are placed d-50.0 cm apart, as shown in the figure below. The final image is to be located between the...
Two converging lenses are placed 20 cm apart. An object is placed on the left of...
Two converging lenses are placed 20 cm apart. An object is placed on the left of the first lens, at a distance of 30 cm. The first lens has a focal point of 10 cm and the second lens has a focal length of 20 cm. a) Using a ray diagram determine the type of image formed by the first lens. b) Calculate the position of the image formed by the first lens. c) Find the magnification of the image...
Two lenses are placed 12 cm apart as shown in the figure. The converging lens has...
Two lenses are placed 12 cm apart as shown in the figure. The
converging lens has a focal length of 20 cm and the diverging lens
has a focal length of � 10 cm. An object is located 50 cm in front
of the converging lens as shown.
Where along the
principle axis is the location of the image formed by only the
converging lens?
Answer
between the two
lenses
at the diverging
lens
to the left of
the converging...
Two converging lenses having focal lengths off, = 11.3 cm and f, - 20.0 cm are placed d = 50.0 cm apart, as shown in the figure below. The final image is to be located between the lenses, at the position x = 33.3 cm Indicated. 12 Object Final image (5) How far (in cm) to the left of the first lens should the object be positioned? cm (b) What is the overall magnification of the system? (c) is the...
Two converging lenses with focal lengths of f1 = 10.2 cm and f2
= 20.5 cm are positioned D1 = 54.7 cm apart, as shown in the figure
below.
The final image is to be located D2 = 28.7 cm between the
lenses.
a) How far to the left of the first lens should the object be
placed in centimetres?
b) What is the overall magnification?
Object Final image
Two converging lenses having focal lengths of f1 =
10.3 cm and f2 = 20.0 cm are placed d = 50.0 cm apart,
as shown in the figure below. The final image is to be located
between the lenses, at the position x = 30.7 cm indicated.
Two converging lenses having focal lengths of 1 10.3 cm and 2-20.0 cm are placed d-50.0 cm apart, as shown in the figure below. The final image is to be located between the...
Two lenses are placed 12 cm apart as shown in the figure. The
converging lens has a focal length of 20 cm and the diverging lens
has a focal length of � 10 cm. An object is located 50 cm in front
of the converging lens as shown.
Where along the
principle axis is the location of the image formed by only the
converging lens?
Answer
between the two
lenses
at the diverging
lens
to the left of
the converging...
