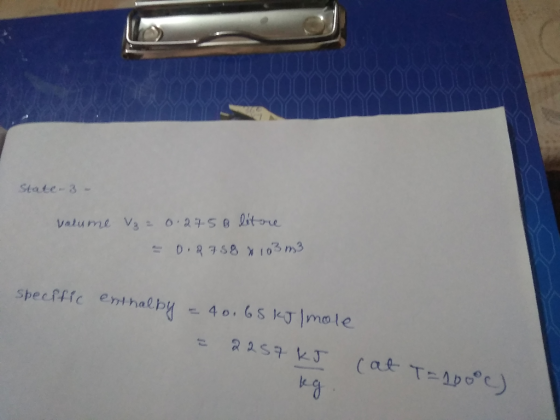

Consider a small amount of
water (0.001 kg) in a vertical piston-cylinder arrangement. The
piston has a mass such that at state 1 the pressure on the water is
125 kPa and its temperature is 10°C. Heat is added at constant
pressure until vaporization begins at state 2 and the piston hits a
set of stops when the volume is 0.2758 liters at state 3. Heat is
added from that point at constant volume until the water is
completely vapor at state 4 and reaches its final pressure of 1200
kPa at state 5. Determine the specific enthalpy and volume in
liters at state 1, the temperature and volume at state 2, the
specific enthalpy and specific internal energy at state 3, the
temperature at state 4, and the final temperature and specific
internal energy at state 5. Given the relationship below, how much
heat is added during this process? Plot the states and processes on

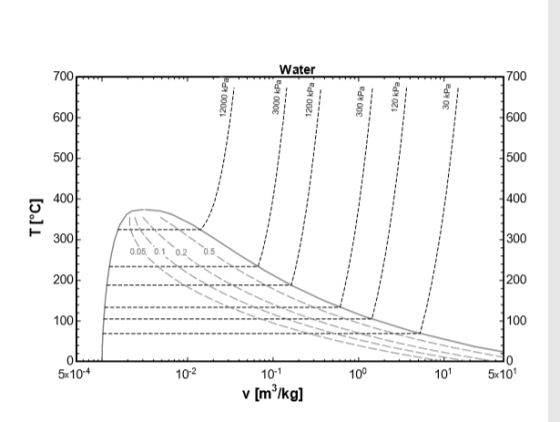

the diagram provided.
