A vertical piston-cylinder contains 0.2 kg of steam initially at an absolute pressure of 200 kPa...
A vertical piston-cylinder contains 0.2 kg of steam initially at an absolute pressure of 200 kPa and a temperature of 300°C. The area of the piston is 10 cm2, and the weight of the piston is 100 N. The piston cylinder is then laid on its side, and the piston is free to move. When the piston reaches its final position, the temperature has decreased to 200°C.
Find The initial volume of the steam in the piston-cylinder, The final pressure in the piston-cylinder, and The volume of the steam in the cylinder changes by?

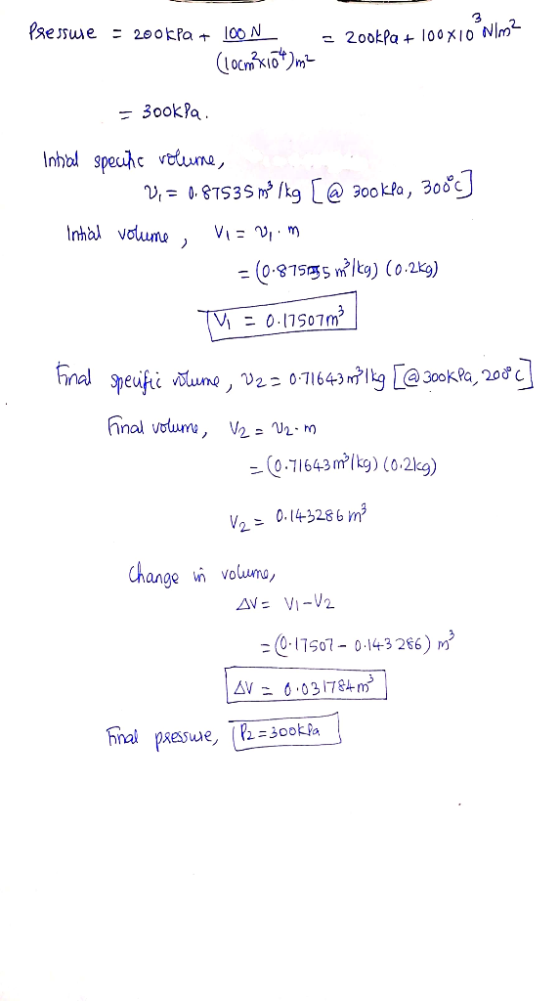

Homework Answers
