A piston –cylinder device initially contains 0.2 kg of steam at 1400 kPa and 350C. The...

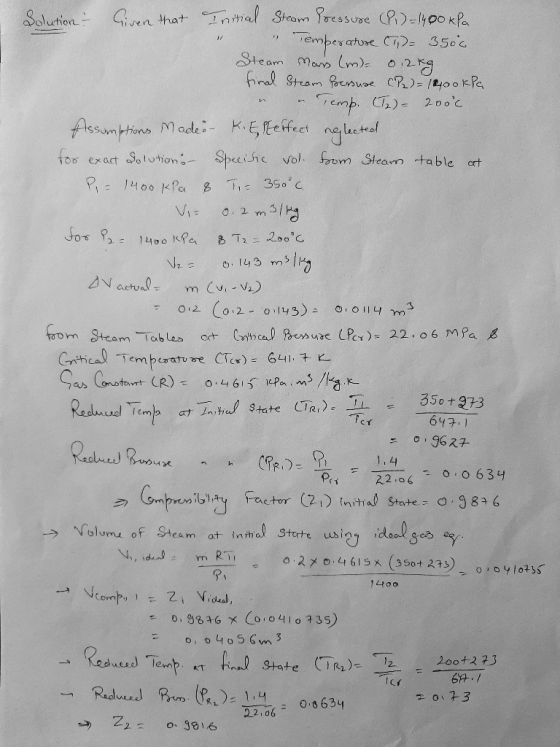

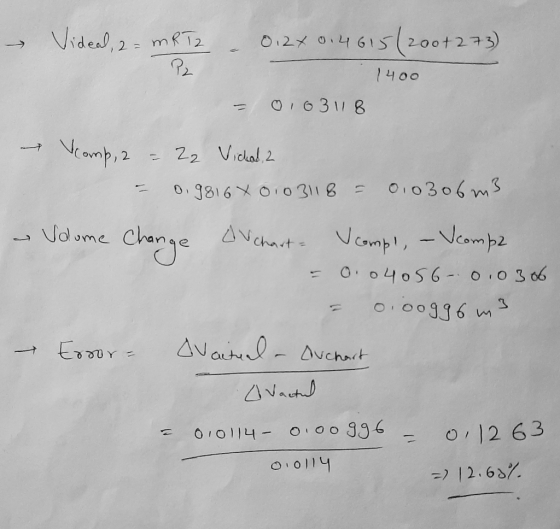

A piston –cylinder device initially contains 0.2 kg of steam at 1400 kPa and 350C. The steam is then cooled at constant pressure until it is at 200C. (a) Determine the volume change of the cylinder during this process using the compressibility factor. (b) Compare the result in part (a) to that obtained using actual property values.
Homework Answers
Add Answer to:
A piston –cylinder device initially contains 0.2 kg of steam at
1400 kPa and 350C. The...
A vertical piston-cylinder contains 0.2 kg of steam initially at an absolute pressure of 200 kPa...
A vertical piston-cylinder contains 0.2 kg of steam initially at an absolute pressure of 200 kPa and a temperature of 300°C. The area of the piston is 10 cm2, and the weight of the piston is 100 N. The piston cylinder is then laid on its side, and the piston is free to move. When the piston reaches its final position, the temperature has decreased to 200°C. Find The initial volume of the steam in the piston-cylinder, The final pressure...
A piston-cylinder device initially contains steam at 200 kPa, 250°C, and 0.4 m3. At this state,...
A piston-cylinder device initially contains steam at 200 kPa, 250°C, and 0.4 m3. At this state, a linear spring is touching the piston, but exerts no force on it. Heat is now slowly transferred to the steam, causing the pressure and the volume to rise to 300 kPa and 0.7 m3, respectively. Show the process on a P-v diagram with respect to saturation lines and determine the following: a. The final temperature b. The work done by the steam c....
A piston-cylinder device with a set of stops initially contains 0.6 kg of steam at 1.0...
A piston-cylinder device with a set of stops initially contains 0.6 kg of steam at 1.0 MPa and 400 C. The location of the stops corresponds to 40 percent of the initial volume. Now the steam is cooled. Determine the compression work if the final state is (a) 1.0 MPa and 250 C and (b) 500 kPa. (c) Also determine the temperature at the final state in part (b).
(4 points) Steam A spring-loaded piston cylinder initially contains 4.2 kg of steam at 120° C...
(4 points) Steam A spring-loaded piston cylinder initially contains 4.2 kg of steam at 120° C and with a quality of 50%. The device is heated until the pressure of the steam is 500 kPa and the temperature is 200° C. Determine the boundary work done by the steam during this process. 0 kJ Determine the total heat transferred during this process. 0 kJ
A piston–cylinder device initially contains air at 150 kPa and 27 °C. In this state, the...
A piston–cylinder device initially contains air at 150 kPa and 27 °C. In this state, the piston is resting on a pair of stops, and the enclosed volume is 400 litres. The mass of the piston is such that a 200 kPa pressure is required to move it. The air is now heated until its volume has doubled. Sketch the process on a P-V diagram and determine (a) the mass of air and the final temperature, (b) the work done...
Q-1 50 A piston-cylinder device contains 0.7 kg of steam at 450°C and 1.4 MPa. Steam...
Q-1 50 A piston-cylinder device contains 0.7 kg of steam at 450°C and 1.4 MPa. Steam is cooled at constant pressure until one-half of the mass condenses. (a) Show the process on a T-v diagram. (b) Find the final temperature. (c) Determine the volume change.
A piston–cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this...
A piston–cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this state, the piston is resting on a set of stops, and the mass of the piston is such that a pressure of 300 kPa is required to move it. Heat is now slowly transferred to the steam until the volume becomes 1.5 m3. Use the data from the steam tables. a) Determine the final temperature. b) Determine the work done during this process. c)...
12) A piston-cylinder device contains 0.6 kg of water vapor at 200 ° C and 0.5...
12) A piston-cylinder device contains 0.6 kg of water vapor at 200 ° C and 0.5 MPa The steam is cooled under constant pressure, until half is condensed of its mass. a) Calculate the final temperature. b) Determine the volume change.
3. (5 pts) An insulated, vertical piston-cylinder device initially contains 2 kg of water at 70°C....
3. (5 pts) An insulated, vertical piston-cylinder device initially contains 2 kg of water at 70°C. The mass of the piston is such that it maintains a constant pressure of 400 kPa inside the cylinder. Water at 1000 kPa and 500°C is allowed to enter the cylinder from a supply line until the instant that the last. drop of liquid in the cylinder vaporizes. Determine the mass of the steam that has entered.
12 kg of steam, initially at 15 bar pressure and 200°C, is contained in a piston-cylinder...
12 kg of steam, initially at 15 bar pressure and 200°C, is contained in a piston-cylinder device. Heat is added at constant pressure until the final temperature of the steam increases to 350°C. Calculate the amount of heat added.
(4 points) Steam A spring-loaded piston cylinder initially contains 4.2 kg of steam at 120° C and with a quality of 50%. The device is heated until the pressure of the steam is 500 kPa and the temperature is 200° C. Determine the boundary work done by the steam during this process. 0 kJ Determine the total heat transferred during this process. 0 kJ
Q-1 50 A piston-cylinder device contains 0.7 kg of steam at 450°C and 1.4 MPa. Steam is cooled at constant pressure until one-half of the mass condenses. (a) Show the process on a T-v diagram. (b) Find the final temperature. (c) Determine the volume change.
3. (5 pts) An insulated, vertical piston-cylinder device initially contains 2 kg of water at 70°C. The mass of the piston is such that it maintains a constant pressure of 400 kPa inside the cylinder. Water at 1000 kPa and 500°C is allowed to enter the cylinder from a supply line until the instant that the last. drop of liquid in the cylinder vaporizes. Determine the mass of the steam that has entered.
12 kg of steam, initially at 15 bar pressure and 200°C, is contained in a piston-cylinder device. Heat is added at constant pressure until the final temperature of the steam increases to 350°C. Calculate the amount of heat added.
