A piston-cylinder device initially contains 0.07 m3 of nitrogen gas at 130 kPa and 120 degrees...

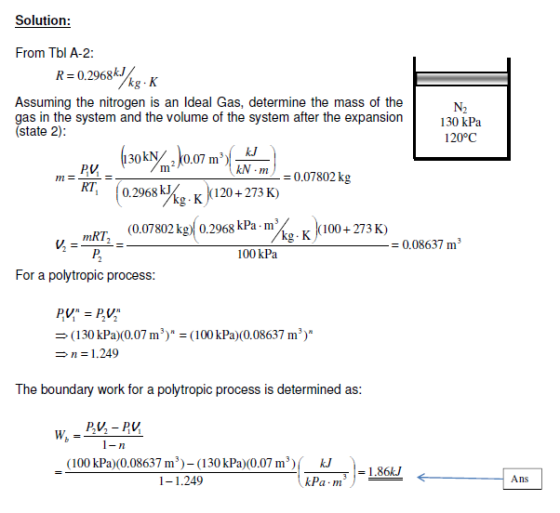

A piston-cylinder device initially contains 0.07 m3 of nitrogen gas at 130 kPa and 120 degrees celcius. The nitrogen is now expanded polytropically to a state of 100 kPa and 100 degrees celcius. Determine the boundary work done during this process. Step by step solutions with basic explanations
Homework Answers
Add Answer to:
A piston-cylinder device initially contains 0.07 m3
of nitrogen gas at 130 kPa and 120 degrees...
1. Question 4-7 from Thermodynamics ed. 7: A piston- cylinder device initially contains 0.07 m' of...
1. Question 4-7 from Thermodynamics ed. 7: A piston- cylinder device initially contains 0.07 m' of nitrogen gas at 130 kPa and 180 C. The nitrogen is now expanded to a pressure of 80 kPa polytropically with a polytropic exponent whose value is equal to the specific heat ratio (called isentropic expansion). Determine the final temperature and the boundary work done during this process.
A piston-cylinder arrangement contains Nitrogen initially at 200 kPa, 107 C and 0.30 m3. The piston...
A piston-cylinder arrangement contains Nitrogen initially at 200 kPa, 107 C and 0.30 m3. The piston moves until the pressure increases to 500 kPa. The pressure-volume relationship during the process is described by the equation: P= -2000 V + 800 where P is in kPa and V in m3 (a) Determine the mass of Nitrogen in kilograms (b) Determine the work done (boundary work) “on” or “by” the Nitrogen in kJ (state which). (c) Determine the final temperature.
A piston–cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this...
A piston–cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this state, the piston is resting on a set of stops, and the mass of the piston is such that a pressure of 300 kPa is required to move it. Heat is now slowly transferred to the steam until the volume becomes 1.5 m3. Use the data from the steam tables. a) Determine the final temperature. b) Determine the work done during this process. c)...
A piston-cylinder device initially contains steam at 200 kPa, 250°C, and 0.4 m3. At this state,...
A piston-cylinder device initially contains steam at 200 kPa, 250°C, and 0.4 m3. At this state, a linear spring is touching the piston, but exerts no force on it. Heat is now slowly transferred to the steam, causing the pressure and the volume to rise to 300 kPa and 0.7 m3, respectively. Show the process on a P-v diagram with respect to saturation lines and determine the following: a. The final temperature b. The work done by the steam c....
(6). (12 points) A piston-cylinder device contains 0.25 kg of air initially at 1.8 MPa and...
(6). (12 points) A piston-cylinder device contains 0.25 kg of
air initially at 1.8 MPa and 360 °C. The air is first expanded
isothermally to 400 kPa, then compressed polytropically, with a
polytropic exponent of 1.2 to the initial pressure, and finally
compressed at the constant pressure to the initial state. Pease
find: (a) (3p) The boundary work for the isothermal expansion
process. (b) (3p) The boundary work for the polytropic compression
process. (c) (3p)The boundary work for the constant...
Consider a piston-cylinder device (system) that contains 0.06 m3 of air at 300 kPa and 125...
Consider a piston-cylinder device (system) that contains 0.06 m3 of air at 300 kPa and 125 ̊C. (a) If the volume of air in the device increases to 0.15 m3 while the pressure remains constant, determine the work done by the system during the process. (b) If as a result of heat transfer to the surrounding, the pressure and temperature in the device drop to 240 kPa and 55 ̊C, respectively, and the piston is held such that the volume...
A piston-cylinder device contains 1.15 kg of air initially at 2441 kPa and 379 oC. The...
A piston-cylinder device contains 1.15 kg of air initially at 2441 kPa and 379 oC. The air is first expanded isothermally to 470 kPa, then compressed polytropically with a polytropic exponent of 1.7 to the initial pressure, and finally compressed at the constant pressure to the initial state. Determine the net work of the cycle Net work kJ A pistoo-cylinder deuice contains 0.45 kg ofair ity at 2°us kPa and 318 c. The air is first expanded iiethermally to 465kfe,...
Required information A piston-cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa....
Required information A piston-cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this state, the piston is resting on a set of stops, and the mass of the piston is such that a pressure of 300 kPa is required to move it. Heat is now slowly transferred to the steam until the volume becomes 1.3 m3. Use the data from the steam tables. Determine the final temperature. (You must provide an answer before moving on...
a piston -cylinder device contains 2.5 Kg of carbon dioxide (CO2 ) initially at 100 KPa...
a piston -cylinder device contains 2.5 Kg of carbon dioxide (CO2 ) initially at 100 KPa and 300o C. The carbon dioxide is then compressed to 200 kPa following a process of Pv1.25 =constant. Determine (A) the boundary worked needed for the process (B) The temperature after compression . use Ideal gas state and Pressure in absolute pressure ; R=0.1889 KJ/Kg-K
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam...
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually...
1. Question 4-7 from Thermodynamics ed. 7: A piston- cylinder device initially contains 0.07 m' of nitrogen gas at 130 kPa and 180 C. The nitrogen is now expanded to a pressure of 80 kPa polytropically with a polytropic exponent whose value is equal to the specific heat ratio (called isentropic expansion). Determine the final temperature and the boundary work done during this process.
A piston-cylinder arrangement contains Nitrogen initially at 200 kPa, 107 C and 0.30 m3. The piston moves until the pressure increases to 500 kPa. The pressure-volume relationship during the process is described by the equation: P= -2000 V + 800 where P is in kPa and V in m3 (a) Determine the mass of Nitrogen in kilograms (b) Determine the work done (boundary work) “on” or “by” the Nitrogen in kJ (state which). (c) Determine the final temperature.
(6). (12 points) A piston-cylinder device contains 0.25 kg of
air initially at 1.8 MPa and 360 °C. The air is first expanded
isothermally to 400 kPa, then compressed polytropically, with a
polytropic exponent of 1.2 to the initial pressure, and finally
compressed at the constant pressure to the initial state. Pease
find: (a) (3p) The boundary work for the isothermal expansion
process. (b) (3p) The boundary work for the polytropic compression
process. (c) (3p)The boundary work for the constant...
A piston-cylinder device contains 1.15 kg of air initially at 2441 kPa and 379 oC. The air is first expanded isothermally to 470 kPa, then compressed polytropically with a polytropic exponent of 1.7 to the initial pressure, and finally compressed at the constant pressure to the initial state. Determine the net work of the cycle Net work kJ A pistoo-cylinder deuice contains 0.45 kg ofair ity at 2°us kPa and 318 c. The air is first expanded iiethermally to 465kfe,...
Required information A piston-cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this state, the piston is resting on a set of stops, and the mass of the piston is such that a pressure of 300 kPa is required to move it. Heat is now slowly transferred to the steam until the volume becomes 1.3 m3. Use the data from the steam tables. Determine the final temperature. (You must provide an answer before moving on...
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually...
