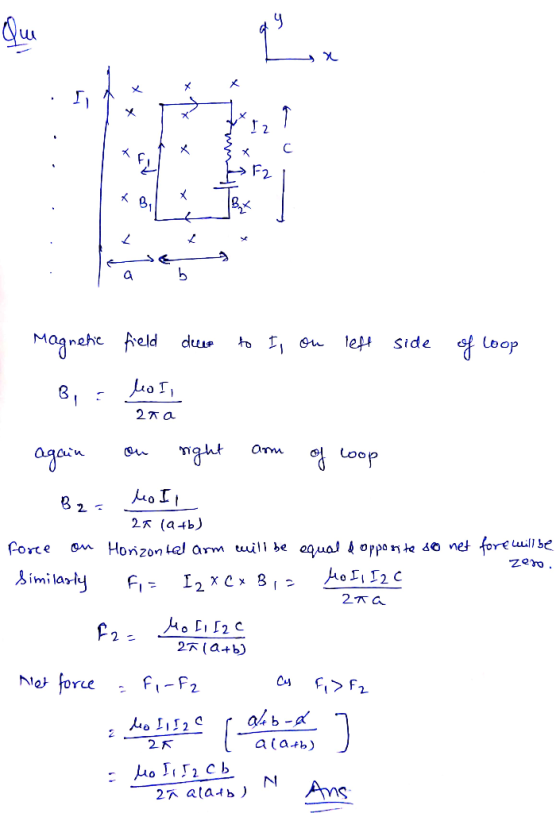

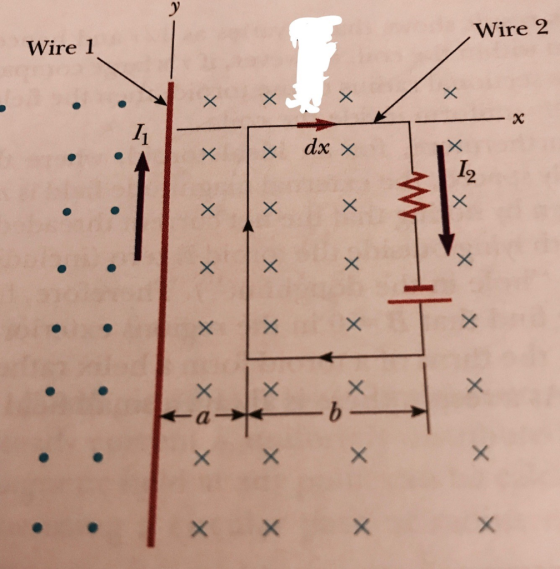

Two currents are shown in the given figure. (The white “blob” at the top of the rectangular loop was my attempted at editing the original figure.) I1 is the current in the long wire, I2 is the current in the rectangular loop that is located a distance a from the long wire. The loop has a width b, as shown, and a length c (not shown). Find the net force on the loop from wire 1.
Homework Answers
Add Answer to:
Two currents are shown in the given figure. (The white “blob” at the top of the...
A long, straight wire (see the figure below) carries current I1 = 4.4 A and is...
A long, straight wire (see the figure below) carries current I1
= 4.4 A and is a distance h = 15 cm from a rectangular current loop
that carries a current I2 = 1.51 A.
A long, straight wire (see the figure below) carries current 11-4.4 A and is a distance h = 15 cm from a rectangular current loop that carries a current 12-1.51 A t0 2 (a) If the loop has length L = 49 cm and width...
Two straight parallel wires carry currents in opposite directionsas shown in the figure. One of...
Two straight parallel wires carry currents in opposite directions as shown in the figure. One of the wires carries a current of I2 = 11.5 A. Point A is the midpoint between the wires. The total distance between the wires is d = 10.2 cm. Point C is 5.75 cm to the right of the wire carrying current I2. Current I1 is adjusted so that the magnetic field at C is zero.A. Calculate the value of the current I1.B. Calculate...
A rectangular loop of wire is placed midway between two long straight parallel conductors as shown....
A rectangular loop of wire is placed midway between two long
straight parallel conductors as shown. The conductors initially
carry currents I1
I
1
and I2
I
2
as indicated. Both currents can be assumed to be positive
(i.e. conventional currents initially flow in the directions as
depicted in the figure). If current I1
I
1
is decreasing at a constant rate given by dI1dt
d
I
1
d
t
= -1.0 mA/s and I2
I
2
is constant, then...
There are two crossed wires and two wire loops, the given currents are inner loop =...
There are two crossed wires and two wire loops, the given
currents are inner loop = I1, outer loop=I2, and horizontal wire is
I3. the radius of the large loop=r1 and the radius of the small
loop=r2. the distance between the center of the concentric loops
and the horizontal wire is d2 and the distance from the center of
the loops to the vertical wire is d1. The magnetic field (B) at the
center of the concentric loops is 0....
A long, straight wire (see the figure below) carries current 114.2 A and is a distance...
A long, straight wire (see the figure below) carries current 114.2 A and is a distance h 15 cm from a rectangular current loop that carries a current I2 1.58 A (a) If the loop has length L = 40 cm and width w = 28 cm, what are the magnitude and direction of the force exerted by the wire on the loop? magnitude 4.19e-6 direction toward the long straight wire (b) What is the force exerted by the current...
2 Two straight parallel wires carry currents in opposite directions as shown in the figure. One...
2 Two straight parallel wires carry currents in opposite directions as shown in the figure. One of the wires carries a current of I2 11.4 A. Point A is the midpoint between the wires. The total distance between the wires is d -12.4 cm. Point Cis 4.68 cm to the right of the wire carrying current I2. Current I1 is adjusted so that the magnetic field at C is zero. Calculate the value of the current I attA Tries 0/99...
Three parallel current-carrying wires are shown in the figure below. The currents in each wire are...
Three parallel current-carrying
wires are shown in the figure below. The currents in each wire are
I1 = 0.460 A, I2 = 0.710 A, and I3 = 0.260 A. If the wires are
separated by distances r1 = 0.185 m and r2 = 0.290 m, find the net
magnetic force per unit length on the middle wire due to the other
wires. (Express your answer in vector form.)
The figure below shows a cross-section of two long, straight, parallel wires, where the currents are flowing perpendicul...
The figure below shows a cross-section of two long, straight,
parallel wires, where the currents are flowing perpendicular to the
page. Wire 1 carries a current
I1
directed into the page (in the
−z
direction) and passes through the x-axis at
x = +a.
Wire 2 passes through the x-axis at
x = −2a
and carries an unknown current
I2.
The total magnetic field at the origin due to the
current-carrying wires has the magnitude
2μ0I1
(2πa)
. Note that...
Four long, parallel conductors carry equal currents of I. The figure is an end view of...
Four long, parallel conductors carry equal currents of I. The figure is an end view of the conductors. Crosses are INTO 2) the page and dots are OUT of the page. Calculate the magnitude and direction of the magnetic field at the center of the square with sides of length a. 3) A rectangular conducting loop (with very very long length) of resistance R, mass m and width w falls (gravity is constant) into a uniform magnetic field (B) as...
As shown in the figure below, two long parallel wires (1 and 2) carry currents of...
As shown in the figure below, two long parallel wires (1 and 2)
carry currents of I1 = 3.10 A and
I2 = 5.10 A in the direction indicated.
(a) Determine the magnitude and direction of the magnetic field
at a point midway between the wires (d = 10.0 cm).
(b) Determine the magnitude and direction of the magnetic field
at point P, located d = 10.0 cm above wire 1.
A long, straight wire (see the figure below) carries current I1
= 4.4 A and is a distance h = 15 cm from a rectangular current loop
that carries a current I2 = 1.51 A.
A long, straight wire (see the figure below) carries current 11-4.4 A and is a distance h = 15 cm from a rectangular current loop that carries a current 12-1.51 A t0 2 (a) If the loop has length L = 49 cm and width...
A rectangular loop of wire is placed midway between two long
straight parallel conductors as shown. The conductors initially
carry currents I1
I
1
and I2
I
2
as indicated. Both currents can be assumed to be positive
(i.e. conventional currents initially flow in the directions as
depicted in the figure). If current I1
I
1
is decreasing at a constant rate given by dI1dt
d
I
1
d
t
= -1.0 mA/s and I2
I
2
is constant, then...
There are two crossed wires and two wire loops, the given
currents are inner loop = I1, outer loop=I2, and horizontal wire is
I3. the radius of the large loop=r1 and the radius of the small
loop=r2. the distance between the center of the concentric loops
and the horizontal wire is d2 and the distance from the center of
the loops to the vertical wire is d1. The magnetic field (B) at the
center of the concentric loops is 0....
A long, straight wire (see the figure below) carries current 114.2 A and is a distance h 15 cm from a rectangular current loop that carries a current I2 1.58 A (a) If the loop has length L = 40 cm and width w = 28 cm, what are the magnitude and direction of the force exerted by the wire on the loop? magnitude 4.19e-6 direction toward the long straight wire (b) What is the force exerted by the current...
2 Two straight parallel wires carry currents in opposite directions as shown in the figure. One of the wires carries a current of I2 11.4 A. Point A is the midpoint between the wires. The total distance between the wires is d -12.4 cm. Point Cis 4.68 cm to the right of the wire carrying current I2. Current I1 is adjusted so that the magnetic field at C is zero. Calculate the value of the current I attA Tries 0/99...
Three parallel current-carrying
wires are shown in the figure below. The currents in each wire are
I1 = 0.460 A, I2 = 0.710 A, and I3 = 0.260 A. If the wires are
separated by distances r1 = 0.185 m and r2 = 0.290 m, find the net
magnetic force per unit length on the middle wire due to the other
wires. (Express your answer in vector form.)
The figure below shows a cross-section of two long, straight,
parallel wires, where the currents are flowing perpendicular to the
page. Wire 1 carries a current
I1
directed into the page (in the
−z
direction) and passes through the x-axis at
x = +a.
Wire 2 passes through the x-axis at
x = −2a
and carries an unknown current
I2.
The total magnetic field at the origin due to the
current-carrying wires has the magnitude
2μ0I1
(2πa)
. Note that...
Four long, parallel conductors carry equal currents of I. The figure is an end view of the conductors. Crosses are INTO 2) the page and dots are OUT of the page. Calculate the magnitude and direction of the magnetic field at the center of the square with sides of length a. 3) A rectangular conducting loop (with very very long length) of resistance R, mass m and width w falls (gravity is constant) into a uniform magnetic field (B) as...
As shown in the figure below, two long parallel wires (1 and 2)
carry currents of I1 = 3.10 A and
I2 = 5.10 A in the direction indicated.
(a) Determine the magnitude and direction of the magnetic field
at a point midway between the wires (d = 10.0 cm).
(b) Determine the magnitude and direction of the magnetic field
at point P, located d = 10.0 cm above wire 1.
