Consider a parallel plate capacitor having plates of area 0.00048 m^2 that are separated by 0.11...

Question

Question

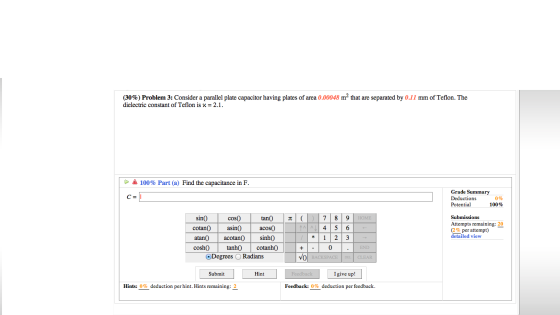

Consider a parallel plate capacitor having plates

science physics

Answer 1

Answer #1

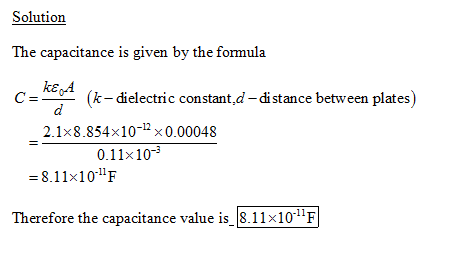

Solutionn The capacitance is given by the formula C-뽀 ( k- dielectric constant,d - distance between plates ) 2.1x8.854x10-2 x

Answer 2

Similar Homework Help Questions

(8%) Problem 8: Consider a parallel plate capacitor having plates of area 0.000475 m² that are...

(8%) Problem 8: Consider a parallel plate capacitor having plates of area 0.000475 m² that are separated by 0.095 mm of Teflon. The dielectric constant of Teflon is K= 2.1. Find the capacitance in F. Pot
Find the capacitance of a parallel plate capacitor having plates of area 5.75 m2 that are...

Find the capacitance of a parallel plate capacitor having plates of area 5.75 m2 that are separated by 0.495 mm of Teflon. The dielectric constant of Teflon is 2.1 X How is capacitance related to plate area and separation for a parallel plate capacitor? Did you consider the effect of the dielectric? HF
Find the capacitance of a parallel plate capacitor having plates of area 2.15 m2 that are...

Find the capacitance of a parallel plate capacitor having plates of area 2.15 m2 that are separated by 0.220 mm of Teflon. The dielectric constant of Teflon is 2.1.

Find the capacitance of a parallel plate capacitor having plates of area 2.95 m2 that are...

Find the capacitance of a parallel plate capacitor having plates of area 2.95 m2 that are separated by 0.280 mm of Teflon. The dielectric constant of Teflon is 2.1. ______ uF
%) Problem 8: Considera parallel plate capacitor having plates of area0.000515m2 that are separated he dielectric...

%) Problem 8: Considera parallel plate capacitor having plates of area0.000515m2 that are separated he dielectric constant of Teflon is x 2.1. à Find the capacitance in F Grade Summar Deductions Potential
Find the capacitance of a parallel plate capacitor having plates of area 4.00 m2 that are...

Find the capacitance of a parallel plate capacitor having plates of area 4.00 m2 that are separated by 0.100 mm of Teflon. µF

Find the capacitance of a parallel plate capacitor having plates of area 1.00 m2 that are...

Find the capacitance of a parallel plate capacitor having plates of area 1.00 m2 that are separated by 0.400 mm of Teflon. 1
Find the capacitance (in µF) of a parallel plate capacitor having plates of area 7.00 m2...

Find the capacitance (in µF) of a parallel plate capacitor having plates of area 7.00 m2 that are separated by 0.300 mm of Teflon.
The plates of a parallel plate capacitor each have an area of 0.1m2 and are separated...

The plates of a parallel plate capacitor each have an area of 0.1m2 and are separated by 0.5 mm thick dielectric of dielectric constant K= 7. The capacitor is connected to a L2 V battery. Find (a)the capacitance, (b)the charge stored, and (c)the electric field between the plates.

8) A parallel-plate capacitor consists of two parallel, square plates that have dimensions 1.0 cm, by...

8) A parallel-plate capacitor consists of two parallel, square plates that have dimensions 1.0 cm, by 0 cm. If the plates are separated by 1.0 mm, and the space between them is filled with teflon, what is the capacitance? (The dielectric constant for teflon is 2.1.) A) 2.1 pF B) 0.89 pF C) 1.9 pF D) 0.44 p
