The beam shown in the figure below (Figure 1) is subjected to a moment of M...

Question

Question

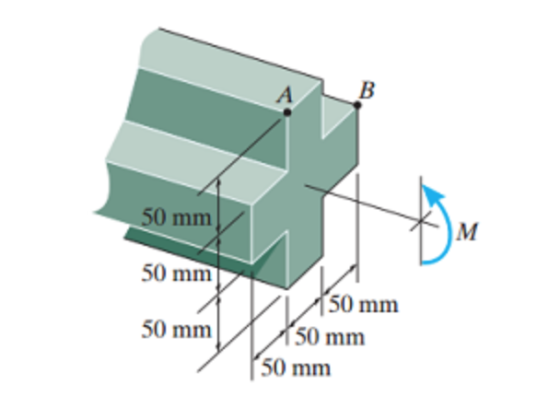

The beam shown in the figure below (Figure 1) is subjected to a moment of M 10 kN m

engineering Mechanical-Engineering

Answer 1

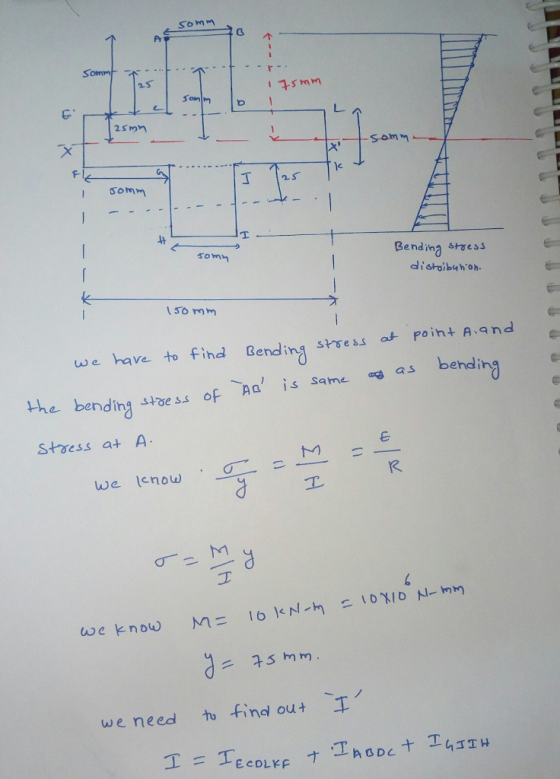

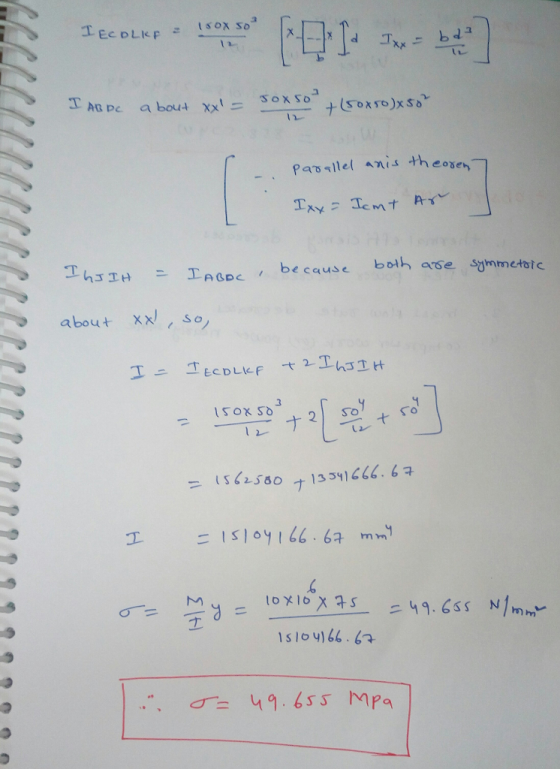

Answer #1

Answer 2

Similar Homework Help Questions

The beam shown in the figure below (Figure 1) is subjected to a moment of M = 45 kN · m.

The beam shown in the figure below (Figure 1) is subjected to a moment of M = 45 kN · m. Part ADetermine the bending stress at point A. Express your answer to three significant figures and include appropriate units. Part BDetermine the bending stress at point B. Express your answer to three significant figures and include appropriate units.
QUESTION 33 The simply supported beam shown in the figure (18) below is subjected to a...

QUESTION 33 The simply supported beam shown in the figure (18) below is subjected to a 3 kN/m uniformally distributed load. The beam has modulus of elasticity of E-200 GPa) and area moment of inertia equals to (/ 12.5 x 10 mm).Answer [Question 33-Question 361 3 kN/m 4 m Figure (18) The support reaction at point A in the y-direction (RAJ: (CLO6) (1 Point) 6.3 kN 48 kN 2 kN 6 kN
A thin-walled beam has the cross-section shown in the figure below. If the beam is subjected...

A thin-walled beam has the cross-section shown in the figure below. If the beam is subjected to a bending moment Mx in the plane of the web 23: Prob. 2 A thin-walled beam has the cross-section shown in the figure below. If the beam is subjected to a bending moment M in the plane of the web 23: h2 2t 2t 2h 1. 2. Find the section properties Find the direct stress distribution equation in the beam cross-section (15 pts)...

QUESTION 1 [15] For the simply supported beam subjected to the loading shown in the figure,...

QUESTION 1 [15] For the simply supported beam subjected to the loading shown in the figure, a) Derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) b) Report the maximum positive bending moment, the maximum negative bending moment, and their respective locations. 36 KN 180 KN-m X B C D 4 m 5 m 3 m Figure 1
1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in the figure below...

1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in the figure below. a. State the distance of the centroid from the 2 axis. b. Calculate the area moment of inertia about the centroid. c. Calculate the maximum stress in the beam 300 mm 20 mm 185 mm 20 mm 35 mm 1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in...
Acantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The moment...

Acantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The moment curvature equation is shown (from the left). (El=constant) 1. Determine the deflection at point A. 2. Determine the rotation at point A. 3 kN/m 15 kN-m B 6 m d2v EI dx- 5x3 3 --x2 - 15 6 2

The beam is subjected to a moment of M = 4.8kip·ft . (Figure 1)

The beam is subjected to a moment of M = 4.8kip·ft . (Figure 1) Part ADetermine the maximum tensile bending stress in the beam. Part B Determine the maximum compressive bending stress in the beam.
A cantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The...

A cantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The moment curvature equation is shown (from the left). (El=constant) 1. Determine the deflection at point A. 2. Determine the rotation at point A. 3 kN/m 15 kN-m A B 6 m d2v ΕΙ 5x3 3 x2 – 15 2 dx2 6
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature...

A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El=constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4 m d2v x3 ΕΙ = dx? 12 -x2+1

Q5. The cantilever beam, AC, is subjected to the load case shown in Figure 5. For the loading shown, do the following: [10 Marks] a) Calculate the magnitude and direction of the reactions at A b) Usi...

Q5. The cantilever beam, AC, is subjected to the load case shown in Figure 5. For the loading shown, do the following: [10 Marks] a) Calculate the magnitude and direction of the reactions at A b) Using the Macaulay function, determine the displacement in y of the point B of the beam (x 2.4 m from the support at A) [10 Marks] c) Determine the slope at B. [5 Marks] The beam has a Young's modulus of E-200 GPa and...
