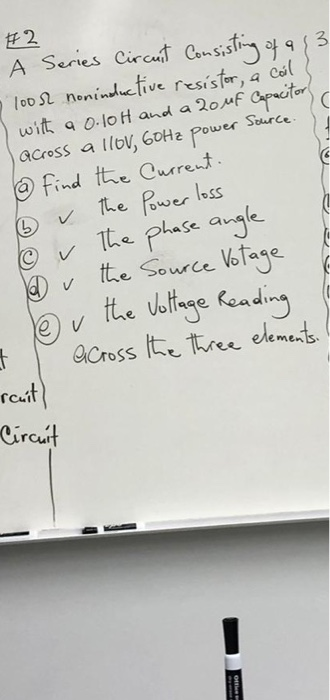

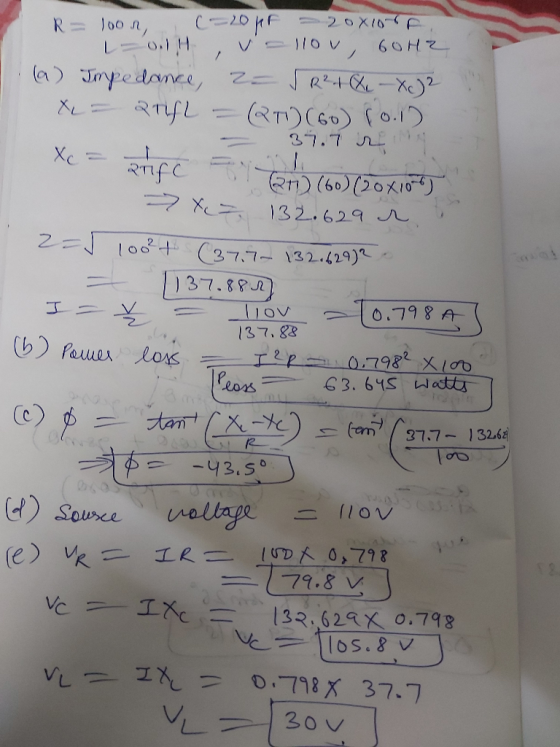

#2 Series Circuit Consisting of a 43 A loosh noninductive resistor, a coil ! with a...
te=300 H 7 #2 Zoov 32.- 12 yol A Series Circuit Consisting of a 43. A...
te=300 H 7 #2 Zoov 32.- 12 yol A Series Circuit Consisting of a 43. A Series RLC Circuit R=4252, 1#4 100 32 novinke five resisfor, a coil In a purely inductive AC L=125H and C= 3.0. I Circuit, L = 250mH and the rms with a 0.10H and a 20 uf Capacitor Constad to an Ac Source with Voltage of 1500. across a llov, CH2 power Source (f = 60.042 and Vmax = 150V Calculate the inductive Reactance @...
We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance ...
We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz What is true? Question 10 options: The current through the inductor is larger than through the resistor The voltage across the inductor is larger than the voltage across the capacitor The voltage is lagging behind the current at the source The voltage and the current are in phase at the...
An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an...
An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an AC voltage source with a peak voltage of 340V and a frequency of 660 Hz. (a) Find the peak current that flows in the circuit. (b) Determine the phase angle of the source voltage relative to the current. (c) Determine the peak voltage across the resistor and its phase angle relative to the voltage source. (d) Find the peak voltage across the inductor and...
An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an...
An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an AC voltage source with a peak voltage of 340V and a frequency of 660 Hz. (a) Find the peak current that flows in the circuit. (b) Determine the phase angle of the source voltage relative to the current. (c) Determine the peak voltage across the resistor and its phase angle relative to the voltage source. (d) Find the peak voltage across the inductor and...
2) An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by...
2) An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an AC voltage source with a peak voltage of 340V and a frequency of 660 Hz. (a) Find the peak current that flows in the circuit. (b) Determine the phase angle of the source voltage relative to the current. (c) Determine the peak voltage across the resistor and its phase angle relative to the voltage source. (d) Find the peak voltage across the inductor...
2) An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by...
2) An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an AC voltage source with a peak voltage of 340V and a frequency of 660 Hz. (a) Find the peak current that flows in the circuit. (b) Determine the phase angle of the source voltage relative to the current. (c) Determine the peak voltage across the resistor and its phase angle relative to the voltage source. (d) Find the peak voltage across the inductor...
Please do question 524 the power in watts dissipated by the resistor. Hamad Alrobayan ans:4 ource, resistor, 524) Given a series circuit consisting of a DC voltage capacitor, inductor, and switch...
Please do question 524
the power in watts dissipated by the resistor. Hamad Alrobayan ans:4 ource, resistor, 524) Given a series circuit consisting of a DC voltage capacitor, inductor, and switch which closes at t-o. All elements are initially uncharged. If v-1 volts, R-4 Ohms, C-1/10 Farads, and L-2 Henries. DO NOT determine current. Determine voltage across the INDUCTOR (VL(t)). Any inverse LT requires Stanley met Express any angle in radians. ans:4 Hamad Alrobayan 765 Given th vstem in Fig...
The switch in an effective LR series dc-circuit (consisting of an emf and a coil with...
The switch in an effective LR series dc-circuit (consisting of an emf and a coil with inductance L = 0.5 H and unknown internal resistance) is closed at t = 0 sec. At t = r, the current is 9.5 A and is increasing at a rate of 1.1 A/s. What must the internal resistance of the coil be? A step-up transformer is designed to have an output voltage of 1800 V (rms) when the primary is connect across a...
A resistor, 50.0-mH inductor, and 100.0-uF capacitor are connected in series with a 50-Hz voltage source....
A resistor, 50.0-mH inductor, and 100.0-uF capacitor are connected in series with a 50-Hz voltage source. The maximum voltage through the circuit is 240 V. Calculate the power across the LCR circuit, if phase angle between the current and voltage is 60degrees.
Exercise 1: (8 pts) Current begins to build up in a series circuit consisting of a...
Exercise 1: (8 pts) Current begins to build up in a series circuit consisting of a 10 V battery, a coil of 15 mH and a resistance of 10 Ω. (a) What is the time constant τ of the circuit? (b) What is the current in the coil after a time of 4.5 ms? (c) What is the voltage across the resistor after 4.5 ms? (d) What is the voltage across the coil after 4.5 ms?
te=300 H 7 #2 Zoov 32.- 12 yol A Series Circuit Consisting of a 43. A Series RLC Circuit R=4252, 1#4 100 32 novinke five resisfor, a coil In a purely inductive AC L=125H and C= 3.0. I Circuit, L = 250mH and the rms with a 0.10H and a 20 uf Capacitor Constad to an Ac Source with Voltage of 1500. across a llov, CH2 power Source (f = 60.042 and Vmax = 150V Calculate the inductive Reactance @...
2) An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an AC voltage source with a peak voltage of 340V and a frequency of 660 Hz. (a) Find the peak current that flows in the circuit. (b) Determine the phase angle of the source voltage relative to the current. (c) Determine the peak voltage across the resistor and its phase angle relative to the voltage source. (d) Find the peak voltage across the inductor...
Please do question 524
the power in watts dissipated by the resistor. Hamad Alrobayan ans:4 ource, resistor, 524) Given a series circuit consisting of a DC voltage capacitor, inductor, and switch which closes at t-o. All elements are initially uncharged. If v-1 volts, R-4 Ohms, C-1/10 Farads, and L-2 Henries. DO NOT determine current. Determine voltage across the INDUCTOR (VL(t)). Any inverse LT requires Stanley met Express any angle in radians. ans:4 Hamad Alrobayan 765 Given th vstem in Fig...
The switch in an effective LR series dc-circuit (consisting of an emf and a coil with inductance L = 0.5 H and unknown internal resistance) is closed at t = 0 sec. At t = r, the current is 9.5 A and is increasing at a rate of 1.1 A/s. What must the internal resistance of the coil be? A step-up transformer is designed to have an output voltage of 1800 V (rms) when the primary is connect across a...
