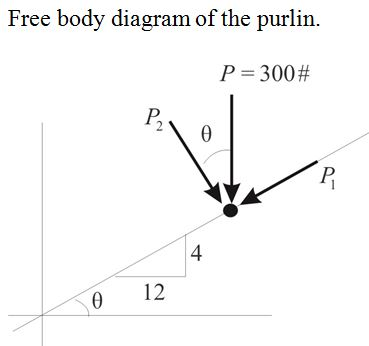

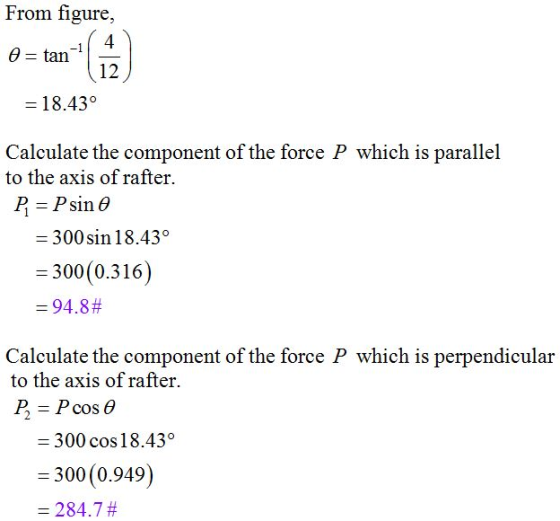

A roof purlin, supported by a rafter, must support a 300# verticalsnow load. Determine the components of P, perpendicular andparallel to the axis of the rafter.
Homework Answers
