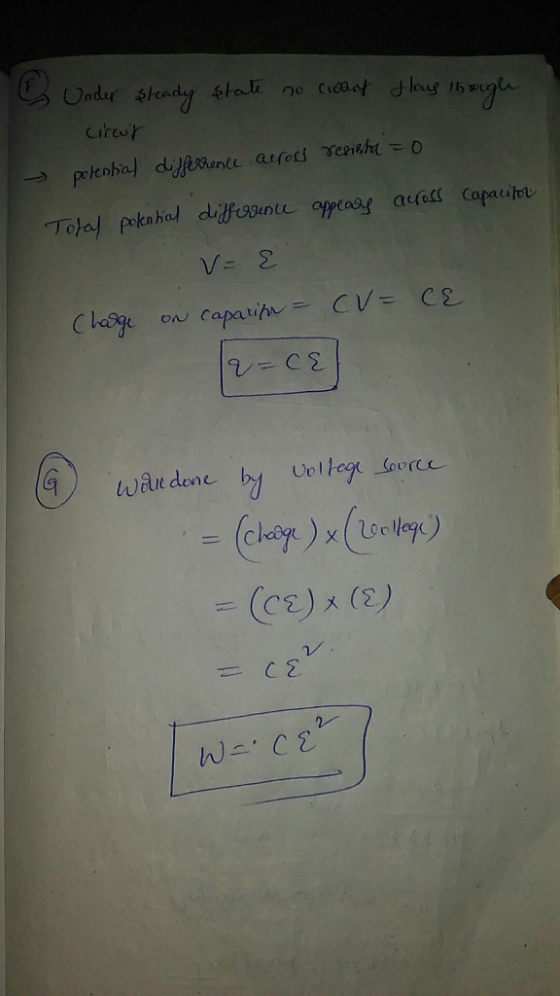

Part F) In the steady state, what is the charge q of the capacitor?
Part G)
How much work W is done by the voltage source by the time the steady state is reached?
Part F) In the steady state, what is the charge q of the capacitor? Part G)...

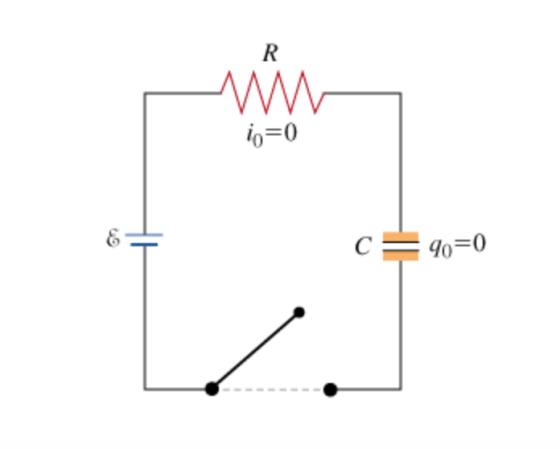

Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF E with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)A Immediately after the switch is closed, what is the voltage across the capacitor?B Complete previous part(s) C Immediately after the switch is closed, what is the direction of the current in the circuit? E Eventually,...
Learning Goal: To understand the dynamics of a series R-C circuit. Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF ε with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)Let us try to understand the processes that take place after the switch is closed. The charge of the capacitor, the current in...
Ov 4) In the above circuit, the alternating voltage source has frequency , am- plitude Vo, and R-Ve. At steady state, calculate how much the phase of the charge on the capacitor lags the voltage when w is equal to 1/2, 2/2, 3/2, and 4/2 the resonant frequency o Vte
Ov 4) In the above circuit, the alternating voltage source has frequency , am- plitude Vo, and R-Ve. At steady state, calculate how much the phase of the charge on...
What is the charge Q of a 500 pF capacitor with 50 V applied? 2.5 nC 25 nC .025 C 25 nC QUESTION 2 conditions are reached? See Figure 11.6. What is the source current I after steady-state voltage and current 1 ko 10 μF 10 kQ ww ww 34 ko 10 kQ 50 10V mH 10 mH 1uF Figure 11.6 Figure 11.6 0 mA 4 mA 2 mA 0.9 mA ww
What is the charge Q of a 500...
To understand the dynamics of a series
R-C circuit.Consider a series circuit
containing a resistor of resistance R and a capacitor of capacitance Cconnected to a source of EMF E with negligible internal resistance. The wires
are also assumed to have zero resistance. Initially, the switch is
open and the capacitor discharged. (Figure 1)Let us try to understand the processes that take
place after the switch is closed. The charge of the capacitor, the
current in the circuit, and, correspondingly,...
Learning Goal: To understand the dynamics of aseries R-C circuit.Consider a series circuit containing a resistor of resistance R anda capacitor of capacitance C connected to a source ofEMF ε with negligible internal resistance. The wiresare also assumed to have zero resistance. Initially, the switch isopen and the capacitor discharged.Let us try to understand the processes that take place afterthe switch is closed. The charge of the capacitor, the current inthe circuit, and, correspondingly, the voltages across the resistorand the...
explain and show each step please
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a function of time for the case: ve(1) v,(t) RLC SERIES
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a function of time for the case: ve(1) v,(t) RLC SERIES
The circuit on the right has been on for a long time has reached steady state. a) What are the currents through each of the three resistors (Three answers please.) b) Mark the directions of the three currents in the circuit. c) What is the charge on the capacitor?
QUESTION 8 What is the steady-state voltage across the capacitor C in V given the supply voltage of 3 V is a applied at t=0? Let R1 = 200, R2 = 350, and C = 0.00025 F. Keep 3 significant figures, and do not include units. Use scientific notation. Riij R2 v
“Before the switch closes”
The circuit is at steady state before the switch opens at time t-. The input to the circuit is the vol tage of the voltage source, 12 V. The output of this circuit is the voltage across the capacitor,v() Determine v() for t>0. Show al work. 10k2 12 V
