Link BD consists of a single bar 36 mm wide and 18 mm thick. Knowing that each pin has a 1...

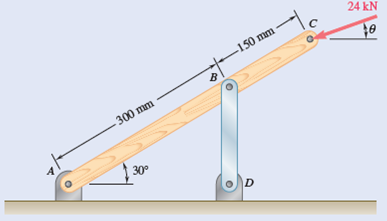

Link BD consists of a single bar 36 mm wide and 18 mm thick. Knowing that each pin has a 12-mm diameter, determine the maximum value of the average normal stress in link BD if (a) θ = 0, (b) θ = 90°.

Fig. P8.5
