Problem

Two wooden planks, each in. thick and 9 in. wide, are joined by the dry mortise joint sho...

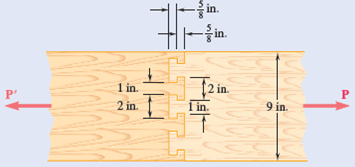

Two wooden planks, each in. thick and 9 in. wide, are joined by the dry mortise joint shown. Knowing that the wood used shears off along its grain when the average shearing stress reaches 1.20 ksi, determine the magnitude P of the axial load that will cause the joint to fail.

Fig. P8.15
