Find the value of the maximum transverse shear stress for the beams of the following figur...

Find the value of the maximum transverse shear stress for the beams of the following figures:

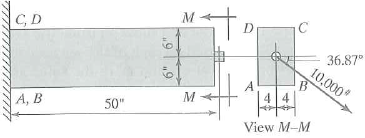

The inclined load shown in view M—M, Fig. 1, is applied to the pin at the end of the beam. Resolve load into horizontal and vertical components and find the bending stress due to each. Add algebraically to get stress at points A, B, C, and D.
