a) A counter is designed to go through the sequence : 1,3,5,7,0,2,5,6, repeat, Using JK flip- flops:

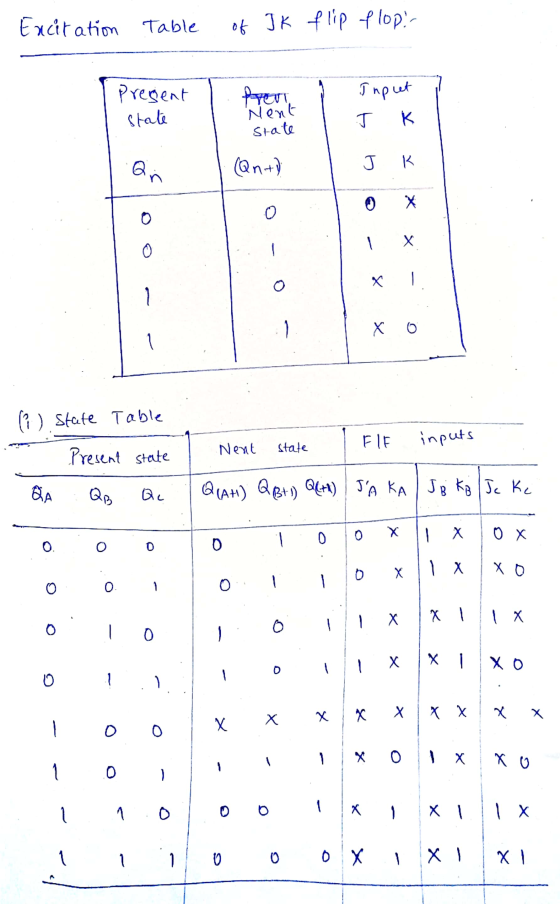

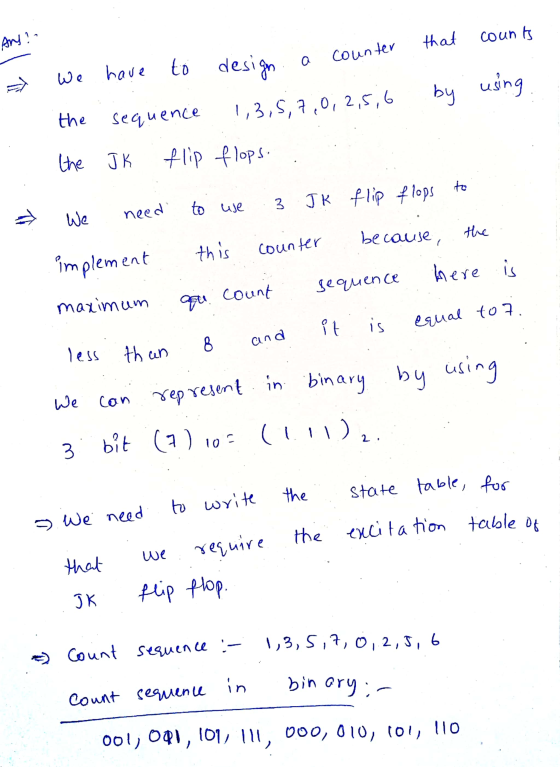

(i) Construct the state table.

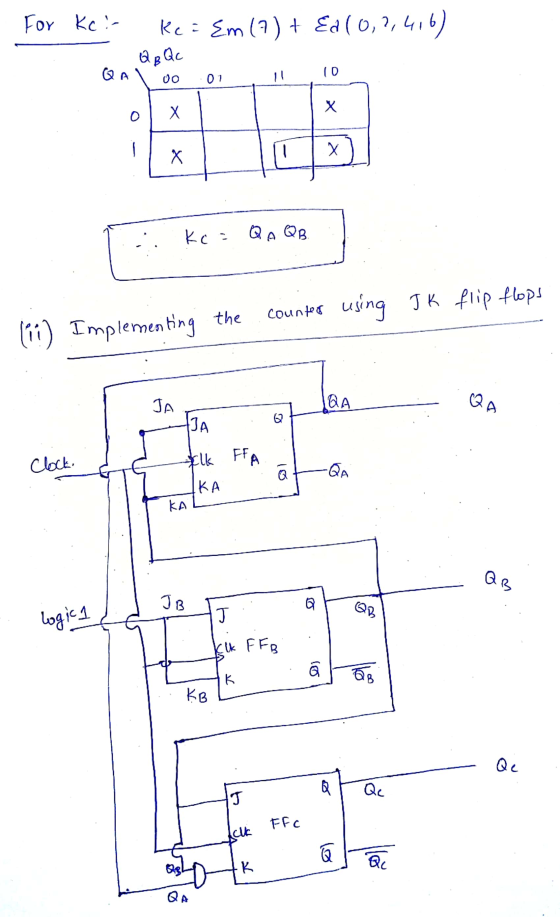

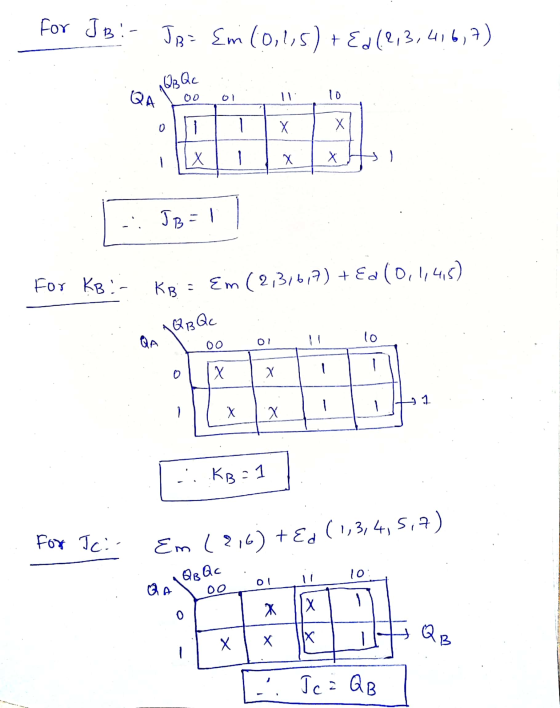

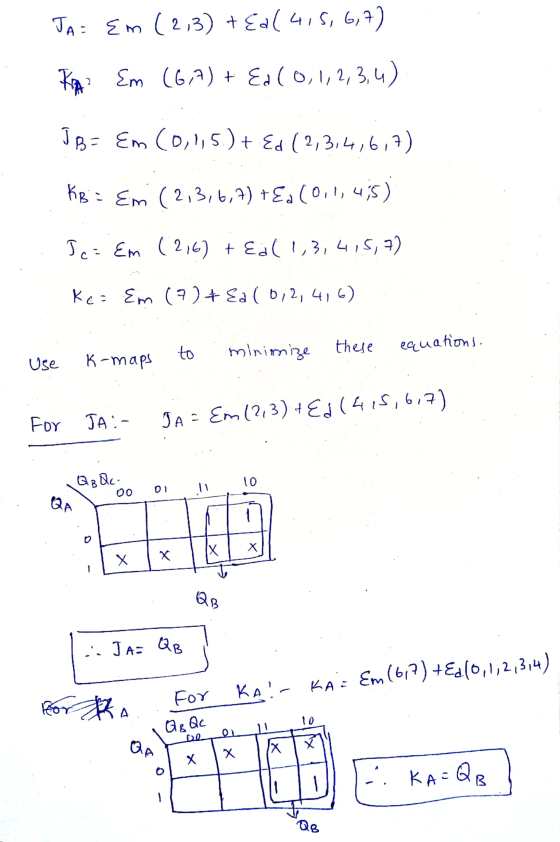

(ii) Draw the circuit.





a) A counter is designed to go through the sequence : 1,3,5,7,0,2,5,6, repeat, Using JK flip-...
A counter is designed to go through the sequence : 1,3,5,7,0,2,5,6, repeat, Using JK flip- flops: (i) Construct the state table. (ii) Draw the circuit.
