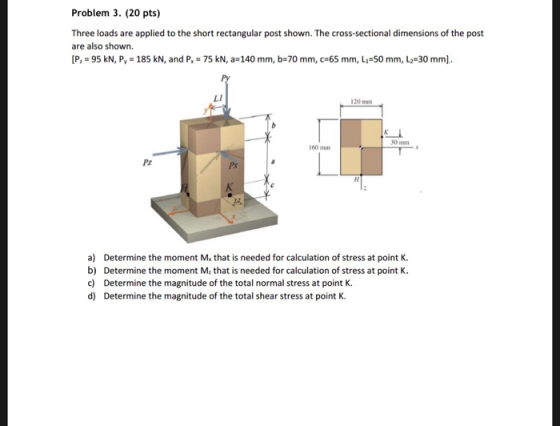

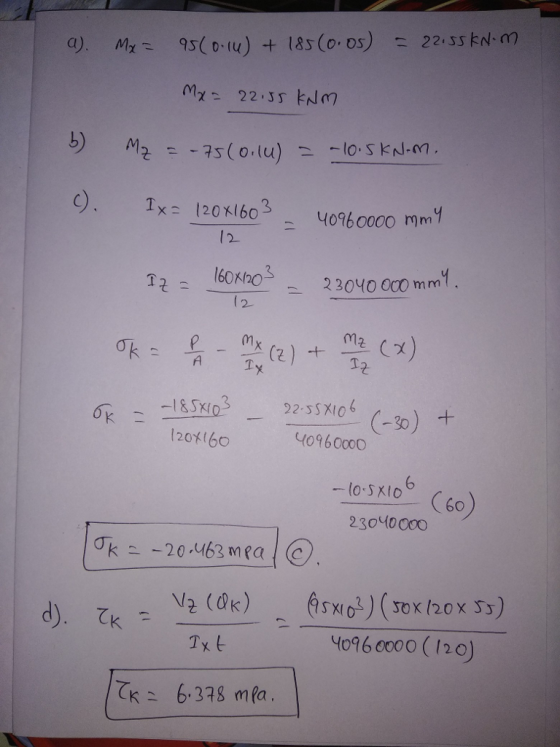

Problem 3. (20 pts) Three loads are applied to the short rectangular post shown. The cross-sectional...
A wood beam supports the loads shown. The cross-sectional dimensions of the beam are shown in the second figure. Assume LAB=2.8 m, LBC=1.1 m, LCD=1.6 m, w=12 kN/m, P=6.8 kN, b1=20 mm, b2=75 mm, d1=100 mm, and dz=240 mm. Determine the magnitude of: (a) the maximum horizontal shear stress Tmax in the beam. (b) the maximum tension bending stress max (and location x) in the beam. - X BI ec LAB I LBCI LCDJ bil b2 bil Answers: kPa. (a)...
A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume mm, by - 85 mm, 5 mm, 9 mm. Determine - 0.5 m, P. - 4.0 kN, Pg - 7.5 kN, Pe-2.0 kN, -85 (a) the maximum vertical shear stress. (b) the maximum compression bending stress. (c) the maximum tension bending stress. See the coordinate system for the beam in the problem figure with the origin of the x axis at the feed...
3. The cantilever beam with rectangular cross- 12k Given: P-250 kN, 0 section is subjected to loads P, Q, and R as shown. a) Determine the state of stress at point A, and draw a volumetric stress element for point A. b) Determine the state of stress at point B, and draw a volumetric stress element for point B. 35 mmA 15 mm 100m 50 mm 120mm n. 250 mm 70 mm
A cantilever beam supports the
loads shown. The cross-sectional dimensions of the shape are also
shown. Assume LAB = 4.0 ft,
LBC = 12.0 ft, w = 1620 lb/ft,
P = 2550 lb, b = 16 in., d = 6 in.,
t = 0.50 in. Determine
(a) the maximum horizontal shear stress.
(b) the maximum compression bending stress.
(c) the maximum tension bending stress.
Chapter 9, Supplemental Question 043 (GO Tutorial) A cantilever beam supports the loads shown. The cross...
Part 1 Correct Three loads are applied to the cantilever beam shown. The cross-sectional dimensions of the beam are shown in second figure. Assume a = 10 in, h = 2 in., k =3 in, e = 4 in., P = 26 kips, Q = 21 kips, R = 10 kips, b = 9 in., and d - 13 in (a) Determine the normal and shear stresses at point K. (b) Determine the principal stresses and maximum in-plane shear stress...
The rectangular plate shown in the figure below has the given loads uniformly distributed over the edges. The plate is 50 mm thick, AB is 500 mm and BC is 400 mm (a) (b) (c) (d) (e) Determine the shear forces which must operate on the edges BC and DA to maintain the equilibrium of the plate Relative to the x,y reference axes, determine the state of stress at any point P in the interior of the plate For the...
A cantilever beam, with a rectangular cross section, is subjected to loads P, Q and R, as illustrated in the figure below. Given, P 100 kN, Q 15 kN and R 10 kN, determine the principal stresses and the maximum in-plane shearing stress at point B. Also, determine the planes on which the principal stresses act, and the planes on which the maximum in-plane shear stress acts. The vertical dimension (depth) of the beam is 120 mm. 40 mmA 2...
A cantilever beam supports the loads shown. The cross-sectional
dimensions of the shape are also shown. Assume
LAB = 3.5 ft, LBC = 10.5
ft, w = 1380 lb/ft, P = 2600 lb, b = 15
in., d = 7 in., t = 0.35 in. Determine
(a) the maximum horizontal shear stress.
(b) the maximum compression bending stress.
(c) the maximum tension bending stress.
2 LAB LBC Answers
be Acrobat Reader DC Araclar QUIZ-3.pdf QUESTION-2 A wood beam supports the loads shown in Figure given below. The cross-sectional dimensions of the beam are shown in Figure given below (on the right) (a) Draw shearing force and moment diagram (b) Determine the magnitude and location of the maximum horizontal shear stress in the beam. (c) Determine the magnitude and location of the maximum tension bending stress in the beam. 100 mm 70 Aramak icin burayaan
A beam of rectangular cross section 200 mm deep and 100 mm wide. If the beam is 3m long, simply supported at either end and carries point loads as shown in FIGURE 2 (on page 4). 2. SAN 1OAN R, FR 100mm FIG.2 (a) Calculate the maximum bending moment (b) Calculate the maximum stress in the beam (c) At the point of maximum stress sketch a graph of the stress distribution through the thickness of the beam, indicating which are...
