Question

I would really appreciate a detailed answer!! :) thank you

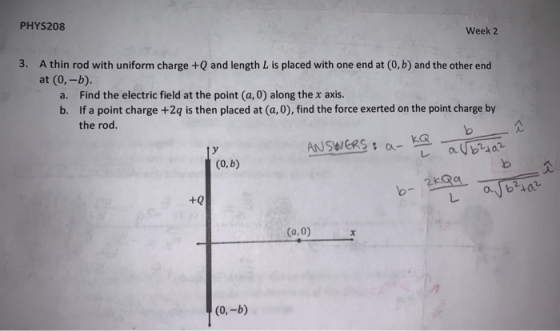

PHYS208 Week 2 3. A thin rod with uniform charge +Q and length L is placed with one end at (0,b) and the other end at (0, -b). a. Find the electric field at the point (a,0) along the x axis. b. If a point charge +2q is then placed at (a,0), find the force exerted on the point charge by the rod. ANSWERS: a-k@ (0,b) ī aU62ta2 b- 2kQq a Johta? +Q (a,0) (0,-)

Answer 1

a] We know that electric field due to finite charged wire is given by:

E = k*lambda/a *(sin theta 1+ sin theta2) where theta1 and theta2 are angle subtended by ends with x axis.

= k*(Q/L)/a *(b/sqrt(a^2+b^2) + b/sqrt(a^2+b^2))

= k*(Q/L)/a *2b/sqrt(a^2+b^2)

= 2k*Q*b/[aL*sqrt(a^2+b^2)] where k is coulombs constant

b] Force = charge*E

= 2q*2k*Q*b/[aL*sqrt(a^2+b^2)]

= 4k*Q*q*b/[aL*sqrt(a^2+b^2)] where k is coulombs constant
