A 1.5x10^3 kg truck is going around a horizontal curve whose radius is 250 m. if...

A 1.5x10^3 kg truck is going around a horizontal curve whose radius is 250 m. if the coefficent of static friction the tires and the road is 0.460, how fast can the truck travel before skidding sideways?
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

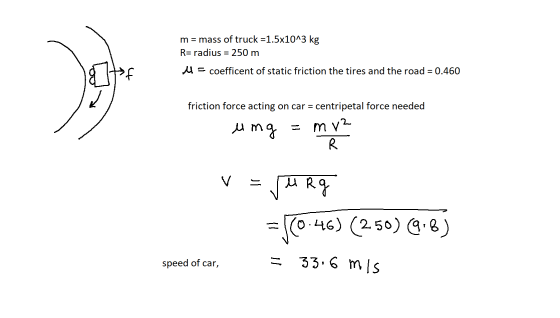

m = mass of truck =1.5x10^3 kg R= radius = 250 m M = coefficent of static friction the tires and the road = 0.460 18tof frict

0 0
