Homework Answers
ANSWER:
Rod : a thin straight bar, especially of wood or metal.
1.a light flexible pole often with line and a reel attached used in fishing.
2 : a stick or bundle of twigs used in whipping a person.
3 : a straight slender stick or bar.
The A-36 W150x37.1 b that can be applied to the beam without causing the strut to...

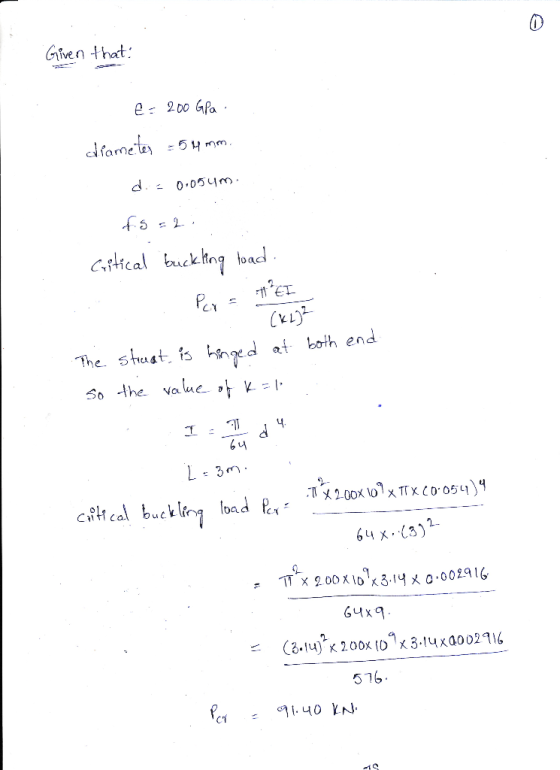

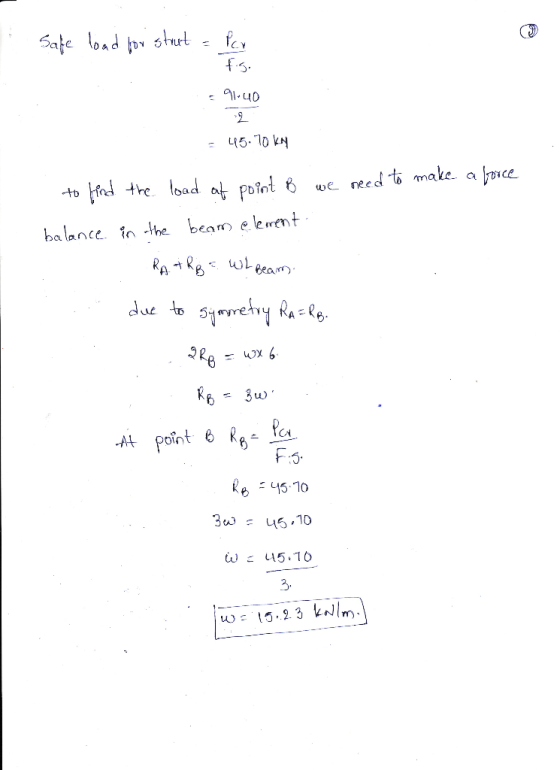

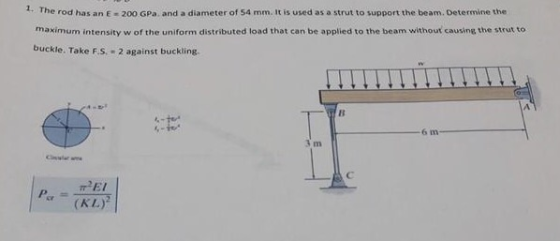

The A-36 W150x37.1 b that can be applied to the beam without causing the strut to buckle or the beam to exceed allowable shear stress. Take F.S. 2. (20 points) steel rod BC has a diameter of 50mm and is used as a strut to support the eam. Determine the maximum intensity w of the uniform distributed load sw 6 m 3 m
P11.062 A W250 × 32.7 structural steel [E-200 GPa] wideflange shape is loaded and supported as...
P11.062 A W250 × 32.7 structural steel [E-200 GPa] wideflange shape is loaded and supported as shown. A uniformly distributed load of w 23 kN/m is applied to the beam, causing the roller support at B to settle downward (i.e., displace downward) by 16 mm. Determine: (a) the reactions at supports A, B, and C. (b) the maximum bending stress ơmax in the beam. Assume LAB = 3.3 m, LBC = 6.2 m. LAB BC Answers: (a) A - (b)...
Thank you so much. Question 6: (10 marks) Determine the maximum eccentric load P the strut...
Thank you so much.
Question 6: (10 marks) Determine the maximum eccentric load P the strut can support without causing it either to buckle or yield. Also, determine the maximum stress in the strut. The ends of the strut are pin connected. E-73.1 GPa; ƠY-414 MPa. 100 mm 150 mm 150 mm L-a 3 m 50 mm 100 mm Section a a
Beam AB is supported as shown in the figure. Tie rod (1) has a diameter of...
Beam AB is supported as shown in the figure. Tie rod (1) has a diameter of 58 mm ,and it is attached at B and Cwith 24 mm diameter double-shear pin connections. The pin connection at A consists of a 40 mm diameter single-shear pin. The pins at A, B, and C each have an ultimate shear strength of 500 MPа ,and tie rod (1) has a yield strength of 280 МРPа . A uniformly distributed load of W is...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 G...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 GPa for the steel. The allowable stresses for the concrete and steel are ơ.-9.2 MPa and ơ.-135 MPa, respectively. Determine the maximum permissible positive bending moment. (10 marks) 625 mm 4 bars 28 mm -300 mm Figure Q3(a) 03(b) A simply supported beam that is...
A solid aluminum [E = 76 GPa] rod (1) is connected to a solid bronze [E = 93 GPa] rod (2) at flange B
A solid aluminum [E = 76 GPa] rod (1) is connected to a solid bronze [E = 93 GPa] rod (2) at flange B, as shown. Aluminum rod (1) has an outside diameter of 31 mm and bronze rod (2) has an outside diameter of 15 mm. The norma stress in the aluminum rod must be limited to 128 MPa, and the normal stress in the bronze rod must be limited to 97 MPa. Assume L1 = 180 mm and...
Beam AB is supported as shown in the figure. Tie rod(1) has a diameter of...
Beam AB is supported as shown in the figure. Tie rod
(1) has a diameter of 60 mm, and it is attached at B and C with 24 mm diameter double-shear pin connections. The pin
connection at A consists of a 37 mm diameter single-shear
pin. The pins at A, B, and C each have
an ultimate shear strength of 500 MPa, and tie rod (1) has a yield
strength of 280 MPa. A uniformly distributed load of w is applied
to...
A temporary support steel frame (E 200 GPa) is made of 30-mm diameter solid circular steel rods (members AB and CD), an...
A temporary support steel frame (E 200 GPa) is made of 30-mm diameter solid circular steel rods (members AB and CD), and 22-mm diameter solid circular steel rods (members BC and AD), al pin connected at the turnbuckle corners A, B, C, and D (see Figure below). The steel frame is braced by two cables AC and BD. A turnbuckle is fitted to cable AC and tightening it will induce tension 3m in cable AC. Determine the largest allowable tension...
i got 1.49 kN/m but it as wrong Determime the maximum allowable intensity w of the...
i got 1.49 kN/m but it as wrong
Determime the maximum allowable intensity w of the distributed load that can be applied to BC (which is infinitely rigid) that will not allow AB to buckle. Express your answer in kN/m. For potential buckling about x-x, use pin connections at A and B. For potential buckling about y-y, use fixed connections at A and B. Use a Factor of Safety of 4, and a modulus of 180 GPa for AB. a...
The 4-mm-diameter cable BC is made of a steel with E = 200 GPa. Knowing that...
The 4-mm-diameter cable BC is made of a steel with E = 200 GPa. Knowing that the maximum stress in the cable must not exceed 190 MPa and that the elongation of the cable must not exceed 5 mm, find the maximum load P that can be applied as shown. В 2.5 m P 3.5 m с -4.0 m
The A-36 W150x37.1 b that can be applied to the beam without causing the strut to buckle or the beam to exceed allowable shear stress. Take F.S. 2. (20 points) steel rod BC has a diameter of 50mm and is used as a strut to support the eam. Determine the maximum intensity w of the uniform distributed load sw 6 m 3 m
P11.062 A W250 × 32.7 structural steel [E-200 GPa] wideflange shape is loaded and supported as shown. A uniformly distributed load of w 23 kN/m is applied to the beam, causing the roller support at B to settle downward (i.e., displace downward) by 16 mm. Determine: (a) the reactions at supports A, B, and C. (b) the maximum bending stress ơmax in the beam. Assume LAB = 3.3 m, LBC = 6.2 m. LAB BC Answers: (a) A - (b)...
Thank you so much.
Question 6: (10 marks) Determine the maximum eccentric load P the strut can support without causing it either to buckle or yield. Also, determine the maximum stress in the strut. The ends of the strut are pin connected. E-73.1 GPa; ƠY-414 MPa. 100 mm 150 mm 150 mm L-a 3 m 50 mm 100 mm Section a a
Beam AB is supported as shown in the figure. Tie rod (1) has a diameter of 58 mm ,and it is attached at B and Cwith 24 mm diameter double-shear pin connections. The pin connection at A consists of a 40 mm diameter single-shear pin. The pins at A, B, and C each have an ultimate shear strength of 500 MPа ,and tie rod (1) has a yield strength of 280 МРPа . A uniformly distributed load of W is...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 GPa for the steel. The allowable stresses for the concrete and steel are ơ.-9.2 MPa and ơ.-135 MPa, respectively. Determine the maximum permissible positive bending moment. (10 marks) 625 mm 4 bars 28 mm -300 mm Figure Q3(a) 03(b) A simply supported beam that is...
Beam AB is supported as shown in the figure. Tie rod
(1) has a diameter of 60 mm, and it is attached at B and C with 24 mm diameter double-shear pin connections. The pin
connection at A consists of a 37 mm diameter single-shear
pin. The pins at A, B, and C each have
an ultimate shear strength of 500 MPa, and tie rod (1) has a yield
strength of 280 MPa. A uniformly distributed load of w is applied
to...
A temporary support steel frame (E 200 GPa) is made of 30-mm diameter solid circular steel rods (members AB and CD), and 22-mm diameter solid circular steel rods (members BC and AD), al pin connected at the turnbuckle corners A, B, C, and D (see Figure below). The steel frame is braced by two cables AC and BD. A turnbuckle is fitted to cable AC and tightening it will induce tension 3m in cable AC. Determine the largest allowable tension...
i got 1.49 kN/m but it as wrong
Determime the maximum allowable intensity w of the distributed load that can be applied to BC (which is infinitely rigid) that will not allow AB to buckle. Express your answer in kN/m. For potential buckling about x-x, use pin connections at A and B. For potential buckling about y-y, use fixed connections at A and B. Use a Factor of Safety of 4, and a modulus of 180 GPa for AB. a...
The 4-mm-diameter cable BC is made of a steel with E = 200 GPa. Knowing that the maximum stress in the cable must not exceed 190 MPa and that the elongation of the cable must not exceed 5 mm, find the maximum load P that can be applied as shown. В 2.5 m P 3.5 m с -4.0 m
