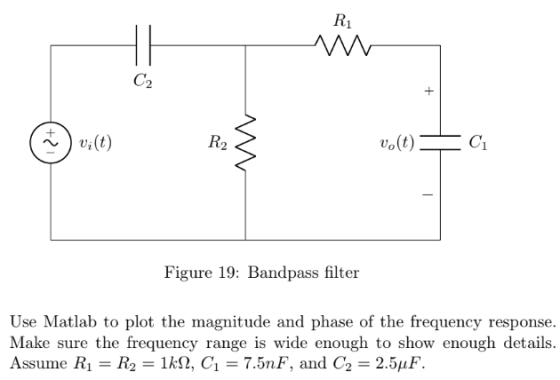

Ri vo(t) = 0 Figure 19: Bandpass filter Use Matlab to plot the magnitude and phase...

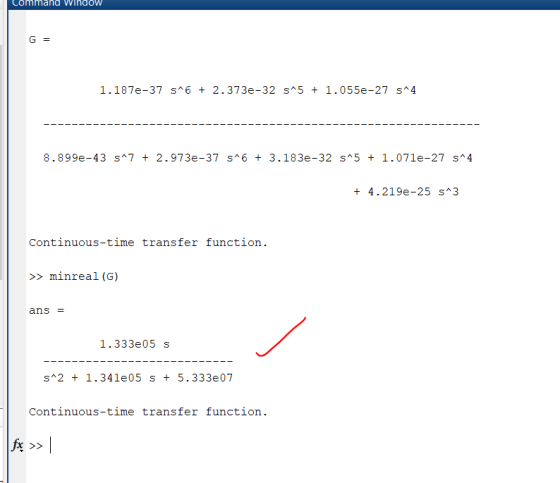

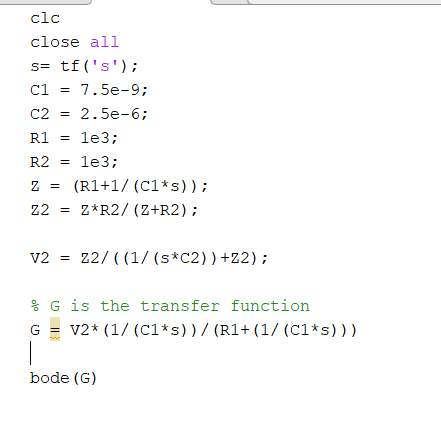

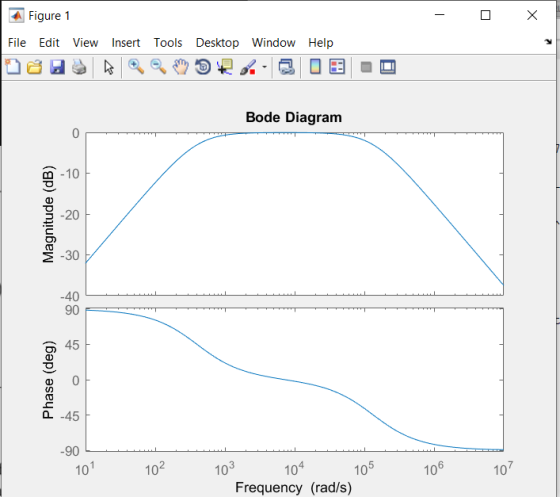

This filter is an active bandpass filter Compute the transfer function for the circuit of in term...
This filter is an active bandpass filter
Compute the transfer function for the circuit of in
terms of the circuit constants R1 R2 R3 C1 and C2. Then, replace
the complex variable with omega, and the circuit constants with
their numerical values and plot the magnitude versus radian
frequency .
What kind of filter is this? Find the transfer function of the circuit and Use MATLAB to plot IVout/Vin over frequency to verify your answer. 0.01 μF 106.1 kΩ 0...
4s +1 2s2 +13s 20 H(s) = 1- Use MATLAB to plot the magnitude and phase...
4s +1 2s2 +13s 20 H(s) = 1- Use MATLAB to plot the magnitude and phase responses of this filter. Label 2- What is the type of this filter type (lowpass, highpass, bandpass,.. .? Plcase 3- Derive the partial fraction expansion of H(s) using the residue command in 4- Determine the impulse response h(t) of the system and plot it using MATLAB. the axes completely. explain. MATLAB and write the expression.
Design an active unity-gain bandpass filter with center frequency 750 Hz and bandwidtg 250 Hz and...
Design an active unity-gain bandpass filter with
center frequency 750 Hz and bandwidtg 250 Hz and with 0.1 μF
capacitor, R1=6.4kΩ, R2=377Ω, and R3=12.7kΩ.
a)Discuss the circuit response with support of a Bode
magnitude plot.
b) Assume next that a load R_L is connected to the output of the
network at the terminal Vo(s). How does the frequency response of
the loaded configuration change?
c) Consider a broadband bandpass op amp filter with center
frequency 2.4 kHz and bandwidth 800...
Using Matlab, plot the magnitude and phase of the transfer function (vo/vi) vs. frequency range 1-100...
Using Matlab, plot the magnitude and phase of the transfer
function (vo/vi) vs. frequency range 1-100 kHz. Use log scale for
the frequency axis, dB scale for the magnitude axis, and degrees
for the phase axis. Note dB = 20log10(vo/vi). The 10 stands for
base 10. I need help writing a MATLAB code to output this plot and
also coming up with the vo/vi function itself.
0.1807 H 1402 nF 0.1624 H 1.560nF 1.559 mH
Plot or sketch the magnitude vs. frequency and the phase vs. frequency curves in a linear or log ...
Plot or sketch the magnitude vs. frequency and the phase vs.
frequency curves in a linear or log scale.
Indicate if the circuit is a low pass, high pass, band pass or
band reject filter.
We were unable to transcribe this image1 C1 R2 C2 Vout in
1 C1 R2 C2 Vout in
R2 R1 1,C2 C1 Vo vin + The figure shows the circuit diagram of an active...
R2 R1 1,C2 C1 Vo vin + The figure shows the circuit diagram of an active filter using an ideal operational amplifier. The values of the circuit components are as follows, R1 - 960 ohms, R2 - 2600 ohms, C1 - 1.0 microfarads, C2-0.8 microfarads. The magnitude of the circuit gain vo/vin at a frequency of 200Hz is determined as nearest to which of the following answers:- 00 O 0.7 O 1.5 22 3.3
3.2 Simple Bandpass Filter Design The L-point averaging filter is a lowpass filter. Its passband width...
3.2 Simple Bandpass Filter Design The L-point averaging filter is a lowpass filter. Its passband width is controlled by L, being inversely proportional to L. In fact, you can use the GUI altidemo to view the frequency response for different averagers and measure the passband widths. It is also possible to create a filter whose passband is centered around some frequency other than zero. One simple way to do this is to define the impulse response of an L-point FIR...
Prelab 10.1: Active lowpass filter Given the circuit shown in Figure 10.1 with Ri-R2-Rs-R4-R-1.0 [k2, and...
Prelab 10.1: Active lowpass filter Given the circuit shown in Figure 10.1 with Ri-R2-Rs-R4-R-1.0 [k2, and C 0.1 [uF (a) Represent the circuit in state-space form given by i(t) = ar(t) + bu(t), i.e., find the values of parameters a, b, c, and d. (b) Find the expression for the transfer function, G(s) the complex frequency (Laplace) domain. (c) Find the expression of the frequency transfer function H(f) and the value of the half power frequency, fB in Hz (d)...
R2 R1 HO Vo vin HC1 + The figure shows the circuit diagram of an active...
R2 R1 HO Vo vin HC1 + The figure shows the circuit diagram of an active filter using an ideal operational amplifier. The values of the circuit components are as follows, R1 = 960 ohms, R2 = 2650 ohms, C1 = 0.1 microfarads, C2 = 1.0 microfarads. The magnitude of the circuit gain vo/vin as frequency approaches infinity is determined as nearest to which of the following answers:- 00 O 0.1 O 0.42 O 1.0 O infinity
Use MATLAB to design your IIR filter. Display the results of: Frequency response Magnitude response Phase...
Use MATLAB to design your IIR filter. Display the results of: Frequency response Magnitude response Phase response Etc. discuss their strength and weaknesses.
This filter is an active bandpass filter
Compute the transfer function for the circuit of in
terms of the circuit constants R1 R2 R3 C1 and C2. Then, replace
the complex variable with omega, and the circuit constants with
their numerical values and plot the magnitude versus radian
frequency .
What kind of filter is this? Find the transfer function of the circuit and Use MATLAB to plot IVout/Vin over frequency to verify your answer. 0.01 μF 106.1 kΩ 0...
4s +1 2s2 +13s 20 H(s) = 1- Use MATLAB to plot the magnitude and phase responses of this filter. Label 2- What is the type of this filter type (lowpass, highpass, bandpass,.. .? Plcase 3- Derive the partial fraction expansion of H(s) using the residue command in 4- Determine the impulse response h(t) of the system and plot it using MATLAB. the axes completely. explain. MATLAB and write the expression.
Design an active unity-gain bandpass filter with
center frequency 750 Hz and bandwidtg 250 Hz and with 0.1 μF
capacitor, R1=6.4kΩ, R2=377Ω, and R3=12.7kΩ.
a)Discuss the circuit response with support of a Bode
magnitude plot.
b) Assume next that a load R_L is connected to the output of the
network at the terminal Vo(s). How does the frequency response of
the loaded configuration change?
c) Consider a broadband bandpass op amp filter with center
frequency 2.4 kHz and bandwidth 800...
Using Matlab, plot the magnitude and phase of the transfer
function (vo/vi) vs. frequency range 1-100 kHz. Use log scale for
the frequency axis, dB scale for the magnitude axis, and degrees
for the phase axis. Note dB = 20log10(vo/vi). The 10 stands for
base 10. I need help writing a MATLAB code to output this plot and
also coming up with the vo/vi function itself.
0.1807 H 1402 nF 0.1624 H 1.560nF 1.559 mH
Plot or sketch the magnitude vs. frequency and the phase vs.
frequency curves in a linear or log scale.
Indicate if the circuit is a low pass, high pass, band pass or
band reject filter.
We were unable to transcribe this image1 C1 R2 C2 Vout in
1 C1 R2 C2 Vout in
R2 R1 1,C2 C1 Vo vin + The figure shows the circuit diagram of an active filter using an ideal operational amplifier. The values of the circuit components are as follows, R1 - 960 ohms, R2 - 2600 ohms, C1 - 1.0 microfarads, C2-0.8 microfarads. The magnitude of the circuit gain vo/vin at a frequency of 200Hz is determined as nearest to which of the following answers:- 00 O 0.7 O 1.5 22 3.3
3.2 Simple Bandpass Filter Design The L-point averaging filter is a lowpass filter. Its passband width is controlled by L, being inversely proportional to L. In fact, you can use the GUI altidemo to view the frequency response for different averagers and measure the passband widths. It is also possible to create a filter whose passband is centered around some frequency other than zero. One simple way to do this is to define the impulse response of an L-point FIR...
Prelab 10.1: Active lowpass filter Given the circuit shown in Figure 10.1 with Ri-R2-Rs-R4-R-1.0 [k2, and C 0.1 [uF (a) Represent the circuit in state-space form given by i(t) = ar(t) + bu(t), i.e., find the values of parameters a, b, c, and d. (b) Find the expression for the transfer function, G(s) the complex frequency (Laplace) domain. (c) Find the expression of the frequency transfer function H(f) and the value of the half power frequency, fB in Hz (d)...
R2 R1 HO Vo vin HC1 + The figure shows the circuit diagram of an active filter using an ideal operational amplifier. The values of the circuit components are as follows, R1 = 960 ohms, R2 = 2650 ohms, C1 = 0.1 microfarads, C2 = 1.0 microfarads. The magnitude of the circuit gain vo/vin as frequency approaches infinity is determined as nearest to which of the following answers:- 00 O 0.1 O 0.42 O 1.0 O infinity
