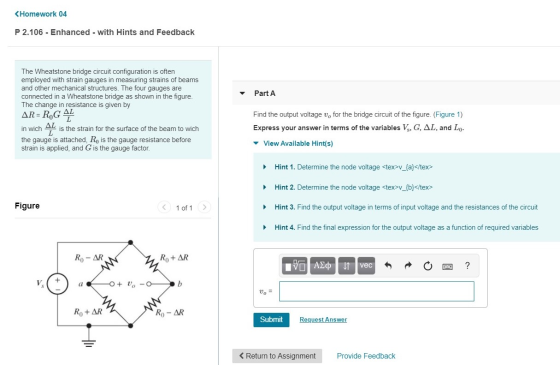

<Homework 04 P 2.106 - Enhanced - with Hints and Feedback Part A The Wheatstone bridge...
The setup below is designed to test the bending properties of a bome. A half Wheatstone bridge is...
The setup below is designed to test the bending properties of
a bome. A half Wheatstone bridge is used to measure the strain
absolom induced in thr bending of the bone.
a)
b)
12. The setup below is designed to test the bending properties of a bone. A half Wheatstone bridge is used to measure the strain s induced in the bending of the bone. The resistance of the strain gages RG R when the strain is zero. (a) Derive...
A Wheatstone bridge is comprised of 4 resistors, 120 Ohm nominal resistance each. Exactly one of...
A Wheatstone bridge is comprised of 4 resistors, 120 Ohm nominal resistance each. Exactly one of these resistors (R3) is a strain gauge, gauge factor is 2.0. The supply voltage is 3 V. The bridge is in balance when the strain gauge is unloaded. Under loading, the strain gauge is subject to strain (epsilon=0.0025). In microstrain, the strain is Find the voltage output of the bridge in millivolts
2) One arm of a Wheatstone bridge is a 50 k2 strain gauge (S = 2.0)....
2) One arm of a Wheatstone bridge is a 50 k2 strain gauge (S = 2.0). This strain gauge is bonded to a metal fixture for tensile loading, and the metal has a Young's Modulus E-2.5 MPa. The other 3 arms are fixed 50 kO resistors. The bridge is powered by 5Vv DC as shown, and Eo is the output voltage. a) Derive a relationship for Eo as a function of tensile stress o in the metal substrate, ΔL ....
A 120 ? strain gauge with a gauge factor of 2 is mounted on a beam...
A 120 Ω strain gauge with a gauge factor of 2 is mounted on a beam and connected in a Wheatstone bridge as shown in Figure Q1a. The bridge is powered by a 12 V DC supply in series with a 510 Ω resistance. The beam is subject to a tensile force, which produces an axial strain of 940 microstrain measured by the strain gauge .a) Under no strain, calculate the current in the strain gauge and the power dissipated by the...
Hi could you please provide how to do problem 2? Amsterdam University of Applied Sciences Problem 2(15 points) A Wheatstone bridge is used to determine the resistance of a strain gauge. The 3 resista...
Hi could you please provide how to do problem 2?
Amsterdam University of Applied Sciences Problem 2(15 points) A Wheatstone bridge is used to determine the resistance of a strain gauge. The 3 resistances R of the Wheatstone bridge are equal: R 200 12. When the strain gauge is fully relaxed (nd strain present), its resistance Rs is equal to the other 3 resistances: Rs-R. The strain is given bywith AR, the change in resistance in the strain gauge. The...
5. (20 points) We use strain gauge to create a fish weight scale. The strain gauges are mounted on a plastic tube with fish hanging on to it. The strain gauges have resistance R 2400 2 (unstrained...
5. (20 points) We use strain gauge to create a fish weight scale. The strain gauges are mounted on a plastic tube with fish hanging on to it. The strain gauges have resistance R 2400 2 (unstrained) and the GF 2.14. A (1) Which is the dummy gauge, A or B? Circle the dummy gauge. (2) Show how to wire the two gauges and two fixed 2400 Ω resistors into the bridge circuit to provide temperature compensation, using the graphs...
As shown below (Fig.1), A strain gage with gage factor of 2.02 is mounted on the bottom of a beam...
As shown below (Fig.1), A strain gage with gage factor of 2.02 is mounted on the bottom of a beam to measure the strain on the surface of the beam. The beam's Young's Modulus is 193 GPa. A wheatstone bridge circuit was constructed as sketched in Fig. 2. Al resistors including the gage itself is 1202. Supply voltage is 5.0 V DC. The bridge is initially balanced when there is no load (a). when a downward load is added, will...
Constants Part A The Wheatstone bridge in the circuit is balanced when If the galvanometer has...
Constants Part A The Wheatstone bridge in the circuit is balanced when If the galvanometer has a resistance of 70 Ω, how much current will the galvanometer detect, when the bridge is unbalanced by setting R3 to 501 2? Take v 10 V. (Hint: Find the Thévenin equivalent with respect to the galvanometer terminals when R3 501 Ω. Note that once we have found this Thévenin equivalent, it is easy to find the amount of unbalanced current in the galvanometer...
Problem 9.56-Enhanced with Hints and Feedback Part A Review I Constants Find the numerical value of...
Problem 9.56-Enhanced with Hints and Feedback Part A Review I Constants Find the numerical value of I Express your answer to three significant figures and include the appropriate units. Use the node-voltage method to find the steady-state expression for io in the circuit seen in (Figure 1) if i-5 cos 2500t A and vg-18 cos(2500t 90°) V Write the steady-state expression for io (t) as , = 10 cos(wt + φ), where _ 180° < φ 180° View Available Hint(s)...
4. Analogue to digital converter (ADC) is one of the data processing. i. Describe the term quantization errot, sample af signal i ADK i. A 9 bits ADC is used in an electronic device for the mu...
4. Analogue to digital converter (ADC) is one of the data processing. i. Describe the term quantization errot, sample af signal i ADK i. A 9 bits ADC is used in an electronic device for the murnt of analogue signal within the range of -TV to +TV. If an an measured as +3.2V, determine the value shows by the ADC (5 marks) The Wheatstone bridge circuit shown in the following figure is used to messure the resistance of a strain...
The setup below is designed to test the bending properties of
a bome. A half Wheatstone bridge is used to measure the strain
absolom induced in thr bending of the bone.
a)
b)
12. The setup below is designed to test the bending properties of a bone. A half Wheatstone bridge is used to measure the strain s induced in the bending of the bone. The resistance of the strain gages RG R when the strain is zero. (a) Derive...
2) One arm of a Wheatstone bridge is a 50 k2 strain gauge (S = 2.0). This strain gauge is bonded to a metal fixture for tensile loading, and the metal has a Young's Modulus E-2.5 MPa. The other 3 arms are fixed 50 kO resistors. The bridge is powered by 5Vv DC as shown, and Eo is the output voltage. a) Derive a relationship for Eo as a function of tensile stress o in the metal substrate, ΔL ....
A 120 Ω strain gauge with a gauge factor of 2 is mounted on a beam and connected in a Wheatstone bridge as shown in Figure Q1a. The bridge is powered by a 12 V DC supply in series with a 510 Ω resistance. The beam is subject to a tensile force, which produces an axial strain of 940 microstrain measured by the strain gauge .a) Under no strain, calculate the current in the strain gauge and the power dissipated by the...
Hi could you please provide how to do problem 2?
Amsterdam University of Applied Sciences Problem 2(15 points) A Wheatstone bridge is used to determine the resistance of a strain gauge. The 3 resistances R of the Wheatstone bridge are equal: R 200 12. When the strain gauge is fully relaxed (nd strain present), its resistance Rs is equal to the other 3 resistances: Rs-R. The strain is given bywith AR, the change in resistance in the strain gauge. The...
5. (20 points) We use strain gauge to create a fish weight scale. The strain gauges are mounted on a plastic tube with fish hanging on to it. The strain gauges have resistance R 2400 2 (unstrained) and the GF 2.14. A (1) Which is the dummy gauge, A or B? Circle the dummy gauge. (2) Show how to wire the two gauges and two fixed 2400 Ω resistors into the bridge circuit to provide temperature compensation, using the graphs...
As shown below (Fig.1), A strain gage with gage factor of 2.02 is mounted on the bottom of a beam to measure the strain on the surface of the beam. The beam's Young's Modulus is 193 GPa. A wheatstone bridge circuit was constructed as sketched in Fig. 2. Al resistors including the gage itself is 1202. Supply voltage is 5.0 V DC. The bridge is initially balanced when there is no load (a). when a downward load is added, will...
Constants Part A The Wheatstone bridge in the circuit is balanced when If the galvanometer has a resistance of 70 Ω, how much current will the galvanometer detect, when the bridge is unbalanced by setting R3 to 501 2? Take v 10 V. (Hint: Find the Thévenin equivalent with respect to the galvanometer terminals when R3 501 Ω. Note that once we have found this Thévenin equivalent, it is easy to find the amount of unbalanced current in the galvanometer...
Problem 9.56-Enhanced with Hints and Feedback Part A Review I Constants Find the numerical value of I Express your answer to three significant figures and include the appropriate units. Use the node-voltage method to find the steady-state expression for io in the circuit seen in (Figure 1) if i-5 cos 2500t A and vg-18 cos(2500t 90°) V Write the steady-state expression for io (t) as , = 10 cos(wt + φ), where _ 180° < φ 180° View Available Hint(s)...
4. Analogue to digital converter (ADC) is one of the data processing. i. Describe the term quantization errot, sample af signal i ADK i. A 9 bits ADC is used in an electronic device for the murnt of analogue signal within the range of -TV to +TV. If an an measured as +3.2V, determine the value shows by the ADC (5 marks) The Wheatstone bridge circuit shown in the following figure is used to messure the resistance of a strain...
