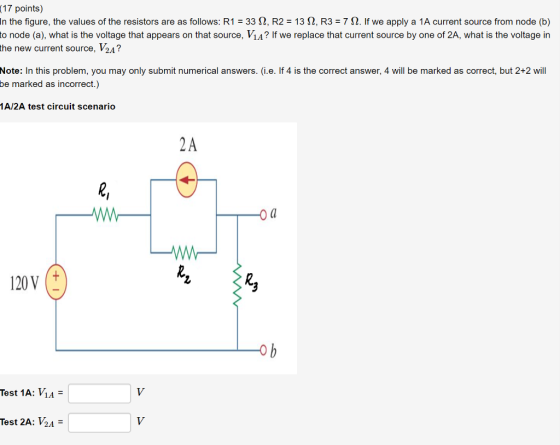

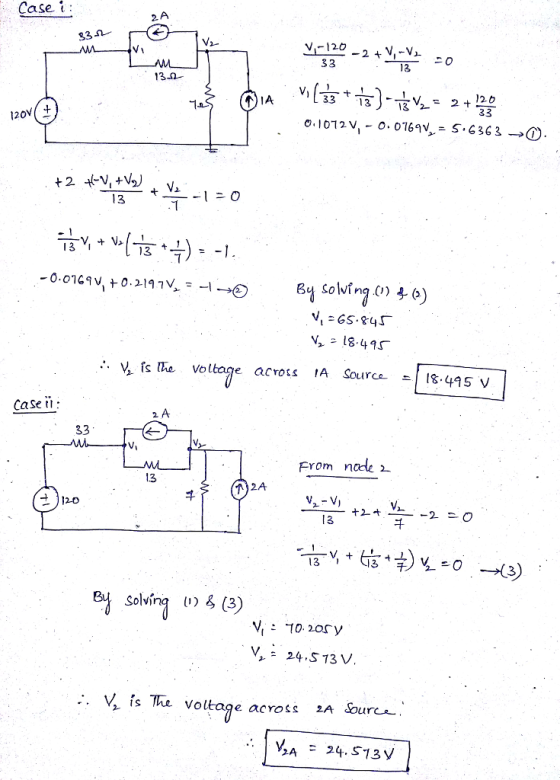

(17 points) in the figure, the values of the resistors are as follows: R1-33 Ω, R2-13...
Consider the three resistors R1=11 Ω, R2=29 Ω, and R3=77 Ω in the configuration shown in the figure. A potential difference ΔV=3.5 V is applied between A and B
Consider the three resistors R1=11 Ω, R2=29 Ω, and R3=77 Ω in the configuration shown in the figure. A potential difference ΔV=3.5 V is applied between A and B Part (a) Express the equivalent resistance Re of the combination of R2 and R3 in terms of R2 and R3.Part (b) Express the total resistance R off the combination of all three resistors in terms of R1, R2 and R3Part (c) Calculate the numerical value ofthe total resistance R in Ω.Part (d)...
(1) The resistors in the circuit below have the following values: R1 = 8.00 Ω, R2...
(1) The resistors in the circuit below have the following
values: R1 = 8.00 Ω, R2 =
7.00 Ω, and R3 = 3.00 Ω. The two batteries each
have a voltage of 5.00 V.
(a) Find the current in through R3.
(b) How much power do the batteries deliver to
R3?
(2) Using the exact exponential treatment, find how much time is
required to discharge a 242-µF capacitor through a 495-Ω resistor
down to 1.00% of its original voltage.
3....
Rc circuit R2 7) R3 Four resistors of values R1 = 2.0 Ω, R2 = 4.0...
Rc circuit
R2 7) R3 Four resistors of values R1 = 2.0 Ω, R2 = 4.0 Ω, R3-3.00, and R4° 9.0 Ω are connected across an 8.0 VDC source as shown in the above figure, what is the power dissipated in R2, the 4.00 resistor? A) 4.0 W B) 16. W C)9.0 W D) 7.1 W E) 1.0 W 8) Also calculate the voltage across R a) 1 V b) 2 V c) 3 V d) 4 V
Consider the circuit shown in the figure with resistors R1= 4.0 Ω, R2= 3.0 Ω, R3=...
Consider the circuit shown in the figure with resistors R1= 4.0
Ω, R2= 3.0 Ω, R3= 3.0 Ω, and batteries V1= 2.0 V, V2=1.5 V
respectively. What is the potential drop (voltage) across resistor
R3?
14) Three resistors (R1 = 9.0 Ω, R2 = 18 Ω and R3 = 28 Ω...
14) Three resistors (R1 = 9.0 Ω, R2 = 18 Ω
and R3 = 28 Ω are connected to a 12-V battery in a
circuit as shown below. Calculate the voltage across R2.
Use the combination method to solve the problem. (Answer in
Volts)
RI R3 R2 AV
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; .e. [Req1] in Ohms. (b) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals: L.e. [Itot1] in A (c) Find the voltage across and the current through each resistor; L.e R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
Suppose the three resistors in the circuit have the values R1 = 160 Ω , R2...
Suppose the three resistors in the circuit have the values R1 = 160 Ω , R2 = 260 Ω , and R3 = 410 Ω , and that the emf of the battery is 18.0 V. Find the current that flows through each resistor.
Three resistors are connected in series to a 12V battery. If R1 = 2 Ω, R2...
Three resistors are connected in series to a 12V battery. If R1 = 2 Ω, R2 = 4 Ω, and R3 = 10 Ω, find: the current out of the battery the potential difference across R1 the potential difference across R2 the potential difference across R3 the potential difference across R1 and R2 the potential difference across R1, R2, and R3
2. Three resistors (R1, R2, and R3) are connected in parallel to a battery with a...
2. Three resistors (R1, R2, and R3) are connected in parallel to a battery with a voltage of V. Assign values to R1 (2.0 Ω), R2 (4.0 Ω), and R3 (6.0 Ω) and voltage (9.0 V) a) Solve for the current through the battery. (3 pts) b) Solve for the current through R2. (3 pts)
Three resistors (R1 = 6 Ω, R2 = 20 Ω and R3 = 8 Ω) are...
Three resistors (R1 = 6 Ω, R2 = 20 Ω and
R3 = 8 Ω) are connected in a circuit as shown in the
figure. What is the magnitude of the current in the
R3 in the middle branch of the circuit
if ε1 = 8 V and ε2 = 20 V?
Hint: Use Kirchhoff's rules.
R & R3 E2 R2
(1) The resistors in the circuit below have the following
values: R1 = 8.00 Ω, R2 =
7.00 Ω, and R3 = 3.00 Ω. The two batteries each
have a voltage of 5.00 V.
(a) Find the current in through R3.
(b) How much power do the batteries deliver to
R3?
(2) Using the exact exponential treatment, find how much time is
required to discharge a 242-µF capacitor through a 495-Ω resistor
down to 1.00% of its original voltage.
3....
Rc circuit
R2 7) R3 Four resistors of values R1 = 2.0 Ω, R2 = 4.0 Ω, R3-3.00, and R4° 9.0 Ω are connected across an 8.0 VDC source as shown in the above figure, what is the power dissipated in R2, the 4.00 resistor? A) 4.0 W B) 16. W C)9.0 W D) 7.1 W E) 1.0 W 8) Also calculate the voltage across R a) 1 V b) 2 V c) 3 V d) 4 V
Consider the circuit shown in the figure with resistors R1= 4.0
Ω, R2= 3.0 Ω, R3= 3.0 Ω, and batteries V1= 2.0 V, V2=1.5 V
respectively. What is the potential drop (voltage) across resistor
R3?
14) Three resistors (R1 = 9.0 Ω, R2 = 18 Ω
and R3 = 28 Ω are connected to a 12-V battery in a
circuit as shown below. Calculate the voltage across R2.
Use the combination method to solve the problem. (Answer in
Volts)
RI R3 R2 AV
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; .e. [Req1] in Ohms. (b) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals: L.e. [Itot1] in A (c) Find the voltage across and the current through each resistor; L.e R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
2. Three resistors (R1, R2, and R3) are connected in parallel to a battery with a voltage of V. Assign values to R1 (2.0 Ω), R2 (4.0 Ω), and R3 (6.0 Ω) and voltage (9.0 V) a) Solve for the current through the battery. (3 pts) b) Solve for the current through R2. (3 pts)
Three resistors (R1 = 6 Ω, R2 = 20 Ω and
R3 = 8 Ω) are connected in a circuit as shown in the
figure. What is the magnitude of the current in the
R3 in the middle branch of the circuit
if ε1 = 8 V and ε2 = 20 V?
Hint: Use Kirchhoff's rules.
R & R3 E2 R2
