Homework Answers

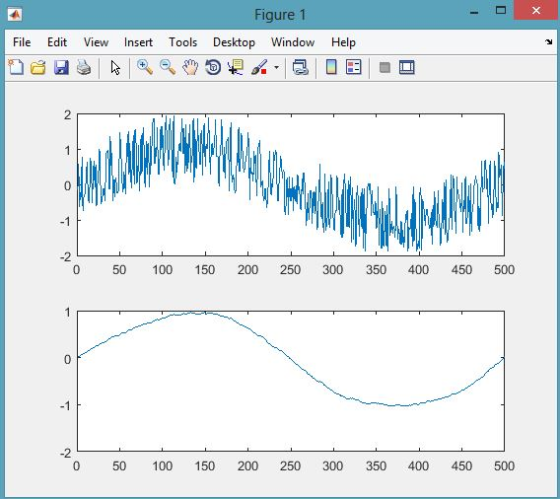

For N=10

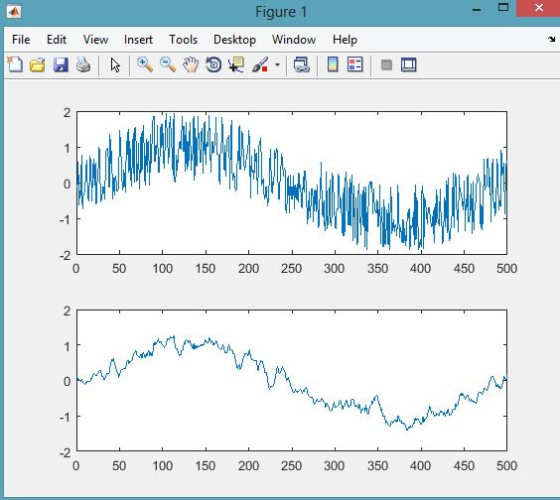

For N=100
Add Answer to:

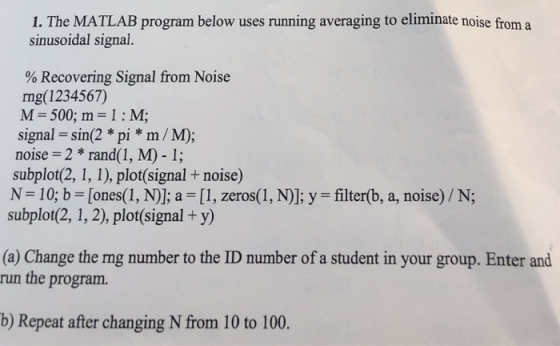

1. The MATLAB program below uses running averaging to eliminate noise from a sinusoidal signal. %...
Program from problem 1: (Using MATLAB) % Sampling frequency and sampling period fs = 10000; ts...
Program from problem 1: (Using MATLAB)
% Sampling frequency and sampling period
fs = 10000;
ts = 1/fs;
% Number of samples, assume 1000 samples
l = 1000;
t = 0:1:l-1;
t = t.*ts; % Convert the sample index into time for generation and
plotting of signal
% Frequency and amplitude of the sensor
f1 = 110;
a1 = 1.0;
% Frequency and amplitude of the power grid noise
f2 = 60;
a2 = 0.7;
% Generating the sinusoidal waves...
