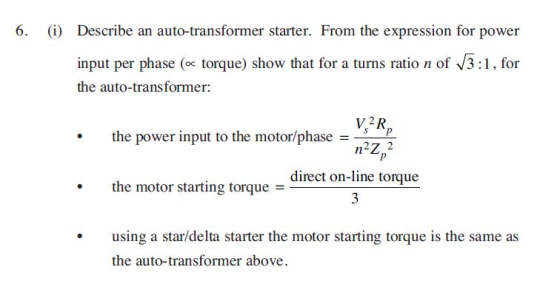

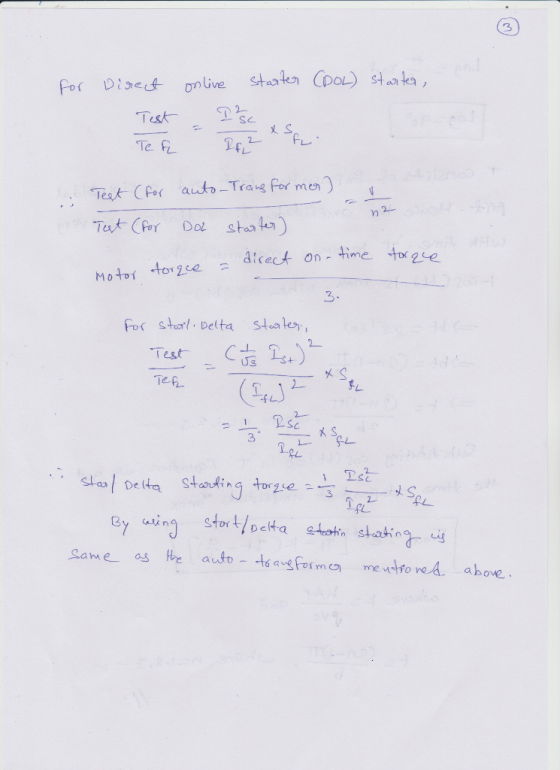

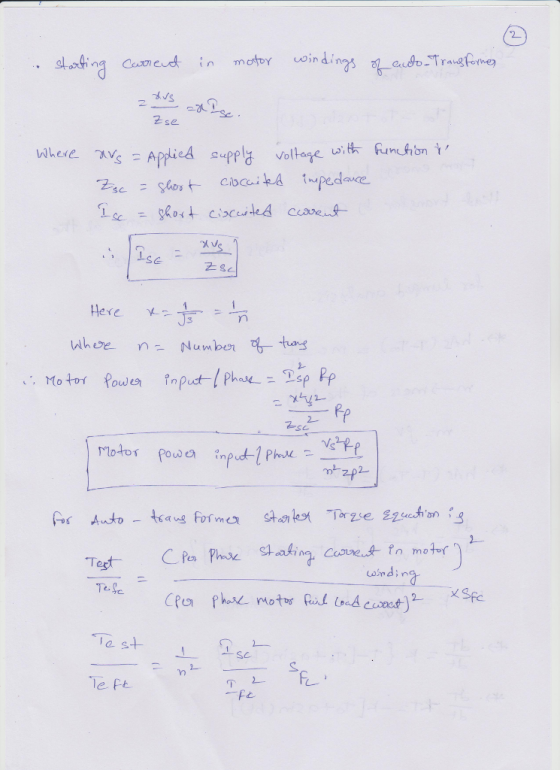

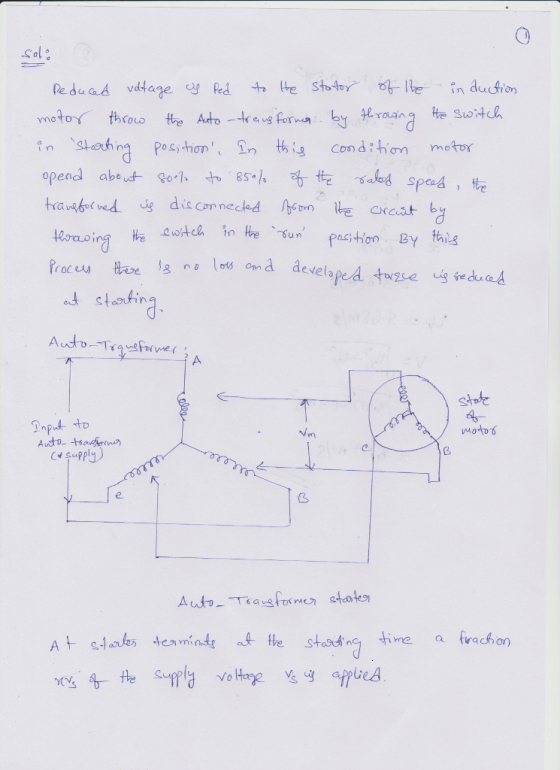

6. (i) Describe an auto-transformer starter. From the expression for power input per phase (ex torque)...
5. (a) State the reason(s) for using a starter to start an induction motor. b) Describe,...
5. (a) State the reason(s) for using a starter to start an induction motor. b) Describe, with the aid of diagram(s), two methods for starting of a squirrel cage induction (c) The results of no-load and blocked-rotor test on a 3-phase, star-connected induction motor are as follows No-load test: Line-to-Line voltage = 380V: Input power = 1500W: Block-rotor test: Line-to-Line voltage 38V; Input power - 2.4kW Input current-15A; Friction and windage losses is 500W Input current-65A. Stator resistance between terminal...
The input power to a 480V, 3 phase, 6 pole, 50 Hz induction motor is 75kW...
The input power to a 480V, 3 phase, 6 pole, 50 Hz induction motor is 75kW with a line current of 75A and runs at a slip of 2.5%. If the stator core loss is 2 kW, windage and friction loss is 1.2 kW, and the stator resistance per phase is 0.16 ohm. Calculate: a. Power supplied to the rotor (Air gap power) b. Rotor copper loss c. Shaft power d. Efficiency of the motor e. Shaft torque f What...
A three-phase 60 Hz synchronous generator is operating at unity power factor, with the following conditions: line-line voltage stator current field current torque angle Determine: (i) the magnitude o...
A three-phase 60 Hz synchronous generator is operating at unity power factor, with the following conditions: line-line voltage stator current field current torque angle Determine: (i) the magnitude of the induced voltage E, and (ii) the value of the synchronous inductance L 13k V 1000A 80A (a) (b) I s now desired to supply 8MVARs (lagging) while maintaining the same real power as above. Sketch the phasor diagram showing E. V, and I for this case, and determine numerical values...
The following test data apply to a 7.5-hp, three-phase, 220-V, 19-A, 60-Hz, four-pole induction motor with...
The following test data apply to a 7.5-hp, three-phase, 220-V, 19-A, 60-Hz, four-pole induction motor with a double-squirrel-cage rotor of design class C (high-starting-torque, low-starting current type): Test :No-load test at 60 Hz; Applied voltage V - 219 V line-to-line; Average phase current I, nl 5.70 A; Power Pnl -380 W; Test 2: Blocked-rotor test at 15 Hz; Applied voltage V 26.5 V line-to-line; Average phase current lbl 18.57 A; Power Pbl 675 W; Test 3: Average de resistance per...
I want to solve this problem step by step. Thanks (35 points) Induction Generator Real Power Generation. A three phase, 220V line to line, six pole, 60Hz, wye connected induction machine op...
I want to solve this problem step by step. Thanks
(35 points) Induction Generator Real Power Generation. A three phase, 220V line to line, six pole, 60Hz, wye connected induction machine operates at rated voltage as a generator at a slip of-0.04. Its equivalent circuit parameters are the same as those in problem #1. The input mechanical power at the rotor (this is a generatorl) is 5.2kW. The core losses are 200Watts; friction and windage losses are 17 Watts; treat...
2. Figure 2 shows a 6-pulse thyristor rectifier feeding a DC static load an operating at steady-state. The ac input power supply is a symmetric set of three-phase voltages forming a direct seque...
2. Figure 2 shows a 6-pulse thyristor rectifier feeding a DC static load an operating at steady-state. The ac input power supply is a symmetric set of three-phase voltages forming a direct sequence, having rms line-to-line voltage of Vuns equal to 415 V and angular frequency ω equal to 100π rad/s. The load is sufficiently inductive to smooth out the load current i(t), i.e. i 1, where I is a constant. a. Derive the mathematical expression of the average DC...
solve no: 3.14 , 3.16, 3.19 please show each step and solve for beginners 120 Power...
solve no: 3.14 , 3.16, 3.19
please show each step and solve for beginners
120 Power System Analysis 3.12. A single-phase system similar to that shown in Figure 3.11 has two transformers A-B a B-C connected by a line B feeding a load at the receiving end C. The ratings and parame ter values of the components are 500 V/1.5 kV, 9.6 kVA. leakage reactance 5 % 1.2 kV/120 V, 7.2 kVA, leakage reactance 4 % series impedance (0.5 +...
Question 1 Question 2: Question 3: Question 4: Question 5: Question 6: Question 7: Question 8:...
Question 1
Question 2:
Question 3:
Question 4:
Question 5:
Question 6:
Question 7:
Question 8:
Please number each question. Thank you
Question 1 Not yet answered Marked out of 4.00 Flag question If the number density of electrons in a wire is n 1.00 x 1028 m-3, at what drift velocity must they travel through a wire of diameter d 0.560 mm to deliver a current of 7.20 A? Give your answer in mm s1 to 3 significant figures...
I need Summary of this Paper i dont need long summary i need What methodology they used , what is the purpose of this p...
I need Summary of this Paper i dont need long summary i need
What methodology they used , what is the purpose of this paper and
some conclusions and contributes of this paper. I need this for my
Finishing Project so i need this ASAP please ( IN 1-2-3 HOURS
PLEASE !!!)
Budgetary Policy and Economic Growth Errol D'Souza The share of capital expenditures in government expenditures has been slipping and the tax reforms have not yet improved the income...
Hi there! I need to compare two essay into 1 essay, and make it interesting and...
Hi there! I need to compare two essay into 1 essay, and make it interesting and choose couple topics which im going to talk about in my essay FIRST ESSAY “Teaching New Worlds/New Words” bell hooks Like desire, language disrupts, refuses to be contained within boundaries. It speaks itself against our will, in words and thoughts that intrude, even violate the most private spaces of mind and body. It was in my first year of college that I read Adrienne...
5. (a) State the reason(s) for using a starter to start an induction motor. b) Describe, with the aid of diagram(s), two methods for starting of a squirrel cage induction (c) The results of no-load and blocked-rotor test on a 3-phase, star-connected induction motor are as follows No-load test: Line-to-Line voltage = 380V: Input power = 1500W: Block-rotor test: Line-to-Line voltage 38V; Input power - 2.4kW Input current-15A; Friction and windage losses is 500W Input current-65A. Stator resistance between terminal...
A three-phase 60 Hz synchronous generator is operating at unity power factor, with the following conditions: line-line voltage stator current field current torque angle Determine: (i) the magnitude of the induced voltage E, and (ii) the value of the synchronous inductance L 13k V 1000A 80A (a) (b) I s now desired to supply 8MVARs (lagging) while maintaining the same real power as above. Sketch the phasor diagram showing E. V, and I for this case, and determine numerical values...
The following test data apply to a 7.5-hp, three-phase, 220-V, 19-A, 60-Hz, four-pole induction motor with a double-squirrel-cage rotor of design class C (high-starting-torque, low-starting current type): Test :No-load test at 60 Hz; Applied voltage V - 219 V line-to-line; Average phase current I, nl 5.70 A; Power Pnl -380 W; Test 2: Blocked-rotor test at 15 Hz; Applied voltage V 26.5 V line-to-line; Average phase current lbl 18.57 A; Power Pbl 675 W; Test 3: Average de resistance per...
I want to solve this problem step by step. Thanks
(35 points) Induction Generator Real Power Generation. A three phase, 220V line to line, six pole, 60Hz, wye connected induction machine operates at rated voltage as a generator at a slip of-0.04. Its equivalent circuit parameters are the same as those in problem #1. The input mechanical power at the rotor (this is a generatorl) is 5.2kW. The core losses are 200Watts; friction and windage losses are 17 Watts; treat...
2. Figure 2 shows a 6-pulse thyristor rectifier feeding a DC static load an operating at steady-state. The ac input power supply is a symmetric set of three-phase voltages forming a direct sequence, having rms line-to-line voltage of Vuns equal to 415 V and angular frequency ω equal to 100π rad/s. The load is sufficiently inductive to smooth out the load current i(t), i.e. i 1, where I is a constant. a. Derive the mathematical expression of the average DC...
solve no: 3.14 , 3.16, 3.19
please show each step and solve for beginners
120 Power System Analysis 3.12. A single-phase system similar to that shown in Figure 3.11 has two transformers A-B a B-C connected by a line B feeding a load at the receiving end C. The ratings and parame ter values of the components are 500 V/1.5 kV, 9.6 kVA. leakage reactance 5 % 1.2 kV/120 V, 7.2 kVA, leakage reactance 4 % series impedance (0.5 +...
Question 1
Question 2:
Question 3:
Question 4:
Question 5:
Question 6:
Question 7:
Question 8:
Please number each question. Thank you
Question 1 Not yet answered Marked out of 4.00 Flag question If the number density of electrons in a wire is n 1.00 x 1028 m-3, at what drift velocity must they travel through a wire of diameter d 0.560 mm to deliver a current of 7.20 A? Give your answer in mm s1 to 3 significant figures...
I need Summary of this Paper i dont need long summary i need
What methodology they used , what is the purpose of this paper and
some conclusions and contributes of this paper. I need this for my
Finishing Project so i need this ASAP please ( IN 1-2-3 HOURS
PLEASE !!!)
Budgetary Policy and Economic Growth Errol D'Souza The share of capital expenditures in government expenditures has been slipping and the tax reforms have not yet improved the income...
