Homework Answers
Add Answer to:

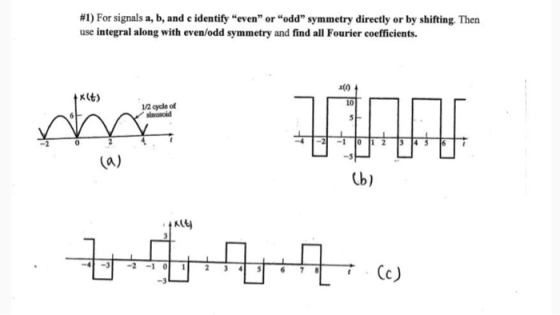

#1) For signals a, b, and c identify "even" or "odd" symmetry directly or by shifting....
3) (Symmetries and Fourier Coefficients) Compute the Fourier Series Coefficients a, b and XTk] for the following periodic repeating signals. Where appropriate, simplify the results for odd or even va...
3) (Symmetries and Fourier Coefficients) Compute the Fourier Series Coefficients a, b and XTk] for the following periodic repeating signals. Where appropriate, simplify the results for odd or even values of k. Note: You can not use the half-wave symmetry integrals if the half-wave symmetry is "hidden" (i.e. if there is a DC offset).] xft) Signal i x(t) Signal5 x(t) Signal 4 aeP O80 0.5 -1 4 8 I 2 4
3) (Symmetries and Fourier Coefficients) Compute the Fourier Series...
1. Determine if the following waveform has even or odd symmetry. Determine its Fourier series expansion(t...
1. Determine if the following waveform has even or odd symmetry. Determine its Fourier series expansion(t (25 points) 2. 3
Please answer very good and with clear hand writing for signals and systems thanks Let a...
Please answer very good and with clear hand writing for
signals and systems thanks
Let a periodic signal x(t) with a fundamental frequency ?,-2n have a period 4.6 x1(t) = t(u(t)--u(t-1)] (a) Plot x(t), and indicate its fundamental period To Compute the Fourier series coefficients of x(t) using their integral definition. (b) (c) Use the Laplace transform to compute the Fourier series coefficients (d) Suppose that y(t) = dx(t)/dt, find the Fourier transform of x(t) by Answers: x(t) is periodic...
(a) Determine algebraically whether the functions below are even, odd or neither. i. r+6 f(x)=- r-r?...
(a) Determine algebraically whether the functions below are even, odd or neither. i. r+6 f(x)=- r-r? (2 marks) ii. f(x) = 2x sinx (2 marks) (b) A periodic function is defined by: f(x) = 4-x?, -25x52, f(x+4)= f(x) i. Sketch the graph of the function over -10<x<10. (4 marks) ii. Based on result in (i), identify whether the function is even or odd. Give your reason. (2 marks) ii. Calculate the Fourier series expansion of f(x). (12 marks) (c) An...
1. (15 points) Review Carefully read each statement below and identify it as True or False...
1. (15 points) Review Carefully read each statement below and identify it as True or False and, for each answer, explain your reasoning briefly in 1-2 sentences. 1. A 100KHz tone (i.e., sinusoid) is input to an LTI system. The frequency spectrum of the output signal may include components at integer multiples of 100KHz. True or False? Why? 2. The phase of the Fourier transform of a real-valued signal with odd symmetry will always be +90 deg. True or False?...
For the function y 1-x for 0 s x s 1 Graph the function's 3 periods 1) Find its formulas for the Fourier series and Fourier coefficients 2) Write out the first three non-zero terms of the Four...
For the function y 1-x for 0 s x s 1 Graph the function's 3 periods 1) Find its formulas for the Fourier series and Fourier coefficients 2) Write out the first three non-zero terms of the Fourier Series 3) 4) Graph the even extension of the function 5) Find the Fourier series and Fourier coefficients for the even extension 6) Write out the first three non-zero terms of the even Fourier series 7) Graph the odd extension of the...
0and / is an odd function of t, find the Fourier sine sin wt d for 0<t< 1 10, (a) If f(t) = for t a 0 transfor...
0and / is an odd function of t, find the Fourier sine sin wt d for 0<t< 1 10, (a) If f(t) = for t a 0 transform of f. Deduce thato s if0<t < a. What is the value of the integral for t2 a? for 0 < t < b (b) If g(t)-{ b-t and g is an even function of t, find the Fourier 0 cosine transform of g. Deduce that foo 1-w2bw cosa t dw =...
Problem 1 Without the use of the above table, find the exponential Fourier coefficients and plot...
Problem 1 Without the use of the above table, find the exponential Fourier coefficients and plot the single-sided spectrum (up to the fourth Harmonic) of: r(t) -4 -3 -2 -1 0 2 34 5 6 7 r (t) 1/4 cycle of sinusoid -4 -3 21 01 2 34 5 6 7 8 1/4 cycle of sinusoid -4 -3 -1 0235 6 7
Use MATLAB to solve this question: Lab Exercises: Fourier Series Coefficients 4 In this lab, the...
Use MATLAB to solve this question: Lab Exercises: Fourier Series Coefficients 4 In this lab, the objective is to create a set of functions that will enable us to do the following 1. Evaluate the Fourier Series coefficients for the following periodic signal which is defined over one period to be rt)240sin (100nt) for 0ts 1/100 (6) The period is 1/100 seconds. This signal is called a full-wave rectified sinusoid, because it contains only the positive lobe of the sinusoidal...
1. Determine whether the function f(x) = (x2 - 1) sin 5x is even, odd, or...
1. Determine whether the function f(x) = (x2 - 1) sin 5x is even, odd, or neither. A. Even B. Odd C. Neither 2. a). Find the Fourier sine series of the function f(x) shown below. b). Sketch the extended function f(x) that includes its two periodic extensions. TT/2 TT Formula to use: The sine series is f(x) = 6 sin NIT P where b. - EL " (x) sin " xd
3) (Symmetries and Fourier Coefficients) Compute the Fourier Series Coefficients a, b and XTk] for the following periodic repeating signals. Where appropriate, simplify the results for odd or even values of k. Note: You can not use the half-wave symmetry integrals if the half-wave symmetry is "hidden" (i.e. if there is a DC offset).] xft) Signal i x(t) Signal5 x(t) Signal 4 aeP O80 0.5 -1 4 8 I 2 4
3) (Symmetries and Fourier Coefficients) Compute the Fourier Series...
1. Determine if the following waveform has even or odd symmetry. Determine its Fourier series expansion(t (25 points) 2. 3
Please answer very good and with clear hand writing for
signals and systems thanks
Let a periodic signal x(t) with a fundamental frequency ?,-2n have a period 4.6 x1(t) = t(u(t)--u(t-1)] (a) Plot x(t), and indicate its fundamental period To Compute the Fourier series coefficients of x(t) using their integral definition. (b) (c) Use the Laplace transform to compute the Fourier series coefficients (d) Suppose that y(t) = dx(t)/dt, find the Fourier transform of x(t) by Answers: x(t) is periodic...
(a) Determine algebraically whether the functions below are even, odd or neither. i. r+6 f(x)=- r-r? (2 marks) ii. f(x) = 2x sinx (2 marks) (b) A periodic function is defined by: f(x) = 4-x?, -25x52, f(x+4)= f(x) i. Sketch the graph of the function over -10<x<10. (4 marks) ii. Based on result in (i), identify whether the function is even or odd. Give your reason. (2 marks) ii. Calculate the Fourier series expansion of f(x). (12 marks) (c) An...
1. (15 points) Review Carefully read each statement below and identify it as True or False and, for each answer, explain your reasoning briefly in 1-2 sentences. 1. A 100KHz tone (i.e., sinusoid) is input to an LTI system. The frequency spectrum of the output signal may include components at integer multiples of 100KHz. True or False? Why? 2. The phase of the Fourier transform of a real-valued signal with odd symmetry will always be +90 deg. True or False?...
For the function y 1-x for 0 s x s 1 Graph the function's 3 periods 1) Find its formulas for the Fourier series and Fourier coefficients 2) Write out the first three non-zero terms of the Fourier Series 3) 4) Graph the even extension of the function 5) Find the Fourier series and Fourier coefficients for the even extension 6) Write out the first three non-zero terms of the even Fourier series 7) Graph the odd extension of the...
0and / is an odd function of t, find the Fourier sine sin wt d for 0<t< 1 10, (a) If f(t) = for t a 0 transform of f. Deduce thato s if0<t < a. What is the value of the integral for t2 a? for 0 < t < b (b) If g(t)-{ b-t and g is an even function of t, find the Fourier 0 cosine transform of g. Deduce that foo 1-w2bw cosa t dw =...
Problem 1 Without the use of the above table, find the exponential Fourier coefficients and plot the single-sided spectrum (up to the fourth Harmonic) of: r(t) -4 -3 -2 -1 0 2 34 5 6 7 r (t) 1/4 cycle of sinusoid -4 -3 21 01 2 34 5 6 7 8 1/4 cycle of sinusoid -4 -3 -1 0235 6 7
Use MATLAB to solve this question: Lab Exercises: Fourier Series Coefficients 4 In this lab, the objective is to create a set of functions that will enable us to do the following 1. Evaluate the Fourier Series coefficients for the following periodic signal which is defined over one period to be rt)240sin (100nt) for 0ts 1/100 (6) The period is 1/100 seconds. This signal is called a full-wave rectified sinusoid, because it contains only the positive lobe of the sinusoidal...
1. Determine whether the function f(x) = (x2 - 1) sin 5x is even, odd, or neither. A. Even B. Odd C. Neither 2. a). Find the Fourier sine series of the function f(x) shown below. b). Sketch the extended function f(x) that includes its two periodic extensions. TT/2 TT Formula to use: The sine series is f(x) = 6 sin NIT P where b. - EL " (x) sin " xd
