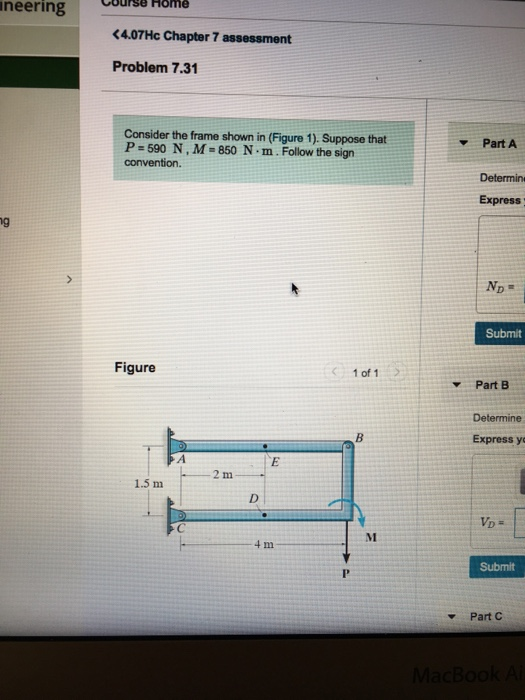

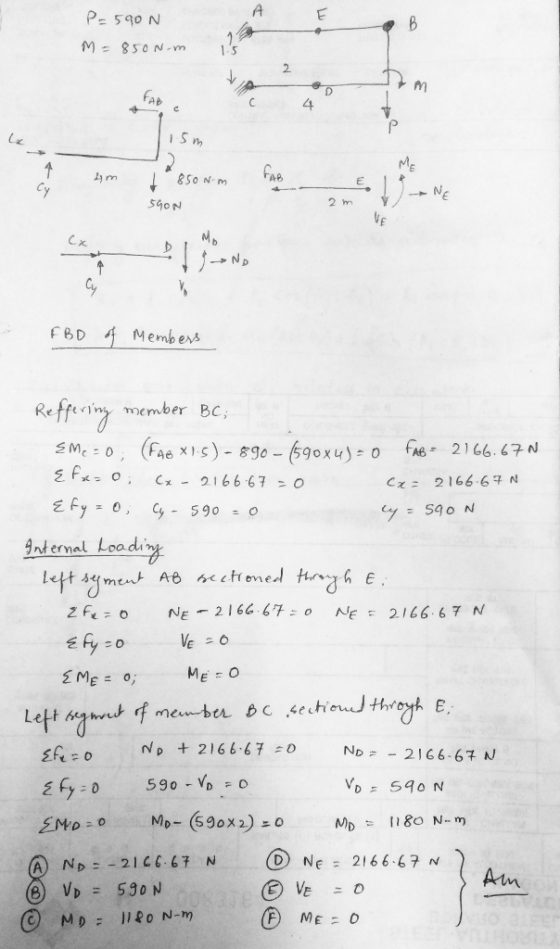

neering Cour ering Curge Home <4.07Hc Chapter 7 assessment Problem 7.31 Consider the frame shown in...
Problem 12.16 Consider the building frame shown in (Figure 1). Suppose that wi = 1.2 k/ft...
Problem 12.16 Consider the building frame shown in (Figure 1). Suppose that wi = 1.2 k/ft and w2 = 4 k/ft. Follow the sign convention for the internal loadings. Part A Determine (approximately) the internal moment at joint E caused by member EF. Express your answer using three significant figures. IVO AO vec ? Mg = 14.9 k.ft Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Determine (approximately) the internal moment at joint C...
Consider the building frame shown in (Figure 1). Suppose that wi = 3 k/ft and w2...
Consider the building frame shown in (Figure 1). Suppose that wi = 3 k/ft and w2 = 6.5 k/ft. Follow the sign convention for the internal loadings. Part A Determine (approximately) the internal moment at joint E caused by member EF. Express your answer using three significant figures. IVO ALO IT vec ? Mg = kft Submit Request Answer Part B Determine (approximately) the internal moment at joint C caused by member CD. Express your answer using three significant figures....
Consider the beam and the loading shown in (Figure 1) Suppose that L 13 m. ?...
Consider the beam and the loading shown in (Figure 1) Suppose that L 13 m. ? Part A Determine the absolute maximum bending moment in the beam due to the loading shown. Follow the sign convention. Express your answer to three significant figures and include the appropriate units. Ms= 1 Value Units Submit Figure ? 1of1> < Return to Assignment Provide Feedback 20 kN 10 kN 5 kN 1 m 2m
Problem 7.15 Consider the object shown in (Figure 1) Suppose that w 48 kN/m Follow the...
Problem 7.15 Consider the object shown in (Figure 1) Suppose that w 48 kN/m Follow the sign convention Part A Determine the internal normal force at point C Express your answer to three significant figures and include the appropriate units. ?? M-1 Value Units Figure < 1011 > Submit Part B Determine the internal shear force at point C Express your answer to three significant figures and include the appropriate units. Submit
Problem 10.19 Consider the frame shown in (Figure 1). Assume the support at A is fixed...
Problem 10.19 Consider the frame shown in (Figure 1). Assume the support at A is fixed and C is a pin. EI is constant. Part A Determine the internal end moment MBA acting on member AB of the frame at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. MBA = 40.8 k ft Submit Previous Answers Correct Part B Determine the internal...
Consider the building frame shown in (Figure 1). Suppose that wi = 3 k/ft and W2...
Consider the building frame shown in (Figure 1). Suppose that wi = 3 k/ft and W2 = 6.5 k/ft. Follow the sign convention for the internal loadings. Part A Determine (approximately) the internal moment at joint E caused by member EF. Express your answer using three significant figures. TO ASOT vec ? Mg = 56.25 k. ft Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B Figure 1 of 1 Determine (approximately) the internal moment...
Consider the beam shown in (Figure 1). Suppose that F 24 kN, F2 15 kN, and...
Consider the beam shown in (Figure 1). Suppose that F 24 kN, F2 15 kN, and F3 12 kN Follow the sign convention Part A Determine the absolute maximum bending moment in the beam due to the loading shown Express your answer to three significant figures and include the appropriate units mAxValue Figure 1 of 1> Submit Request Answer Return to Assignment Provide Feedback F3 4 m 2m o
Problem 9.17 Consider the frame shown in (Figure 1). EI is constant. Part A Determine the...
Problem 9.17 Consider the frame shown in (Figure 1). EI is constant. Part A Determine the y component of reaction at A. Express your answer to three significant figures and include the appropriate unit A- Value Units Submit Request Answer igure 1 of 1 Part B 6 m Determine the z component of reaction at C. Express your answer to three significant figures and include the appropriate u 18 kN/m G-1 Value Units 4 m Submit Request Answer Part C
Consider the simply supported beam shown in (Figure 1). Suppose that P = 10 kN, w...
Consider the simply supported beam shown in (Figure 1). Suppose that P = 10 kN, w = 5 kN/m. Point D is located just to the left of the 10-kN concentrated load. Follow the sign convention Part A Determine the internal normal force at point C. Express your answer to three significant figures and include the appropriate units. НА ? Nc = Value Units Submit Request Answer Part B Determine the internal shear force at point C. Express your answer...
Consider the frame shown in (Figure 1). Suppose that F = 900 N Figure < 1...
Consider the frame shown in (Figure 1). Suppose that F = 900 N Figure < 1 of 1 2 m 200 N/m 2 m ULU Part A Determine the magnitude of the reaction at pin Express your answer to three significant figures and include the appropriate units. LE T: HÅ * O a ? Value SA Units Submit Request Answer Part B Determine the magnitude of the reaction at pin B. Express your answer to three significant figures and include...
Problem 12.16 Consider the building frame shown in (Figure 1). Suppose that wi = 1.2 k/ft and w2 = 4 k/ft. Follow the sign convention for the internal loadings. Part A Determine (approximately) the internal moment at joint E caused by member EF. Express your answer using three significant figures. IVO AO vec ? Mg = 14.9 k.ft Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Determine (approximately) the internal moment at joint C...
Consider the building frame shown in (Figure 1). Suppose that wi = 3 k/ft and w2 = 6.5 k/ft. Follow the sign convention for the internal loadings. Part A Determine (approximately) the internal moment at joint E caused by member EF. Express your answer using three significant figures. IVO ALO IT vec ? Mg = kft Submit Request Answer Part B Determine (approximately) the internal moment at joint C caused by member CD. Express your answer using three significant figures....
Consider the beam and the loading shown in (Figure 1) Suppose that L 13 m. ? Part A Determine the absolute maximum bending moment in the beam due to the loading shown. Follow the sign convention. Express your answer to three significant figures and include the appropriate units. Ms= 1 Value Units Submit Figure ? 1of1> < Return to Assignment Provide Feedback 20 kN 10 kN 5 kN 1 m 2m
Problem 7.15 Consider the object shown in (Figure 1) Suppose that w 48 kN/m Follow the sign convention Part A Determine the internal normal force at point C Express your answer to three significant figures and include the appropriate units. ?? M-1 Value Units Figure < 1011 > Submit Part B Determine the internal shear force at point C Express your answer to three significant figures and include the appropriate units. Submit
Problem 10.19 Consider the frame shown in (Figure 1). Assume the support at A is fixed and C is a pin. EI is constant. Part A Determine the internal end moment MBA acting on member AB of the frame at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. MBA = 40.8 k ft Submit Previous Answers Correct Part B Determine the internal...
Consider the building frame shown in (Figure 1). Suppose that wi = 3 k/ft and W2 = 6.5 k/ft. Follow the sign convention for the internal loadings. Part A Determine (approximately) the internal moment at joint E caused by member EF. Express your answer using three significant figures. TO ASOT vec ? Mg = 56.25 k. ft Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B Figure 1 of 1 Determine (approximately) the internal moment...
Consider the beam shown in (Figure 1). Suppose that F 24 kN, F2 15 kN, and F3 12 kN Follow the sign convention Part A Determine the absolute maximum bending moment in the beam due to the loading shown Express your answer to three significant figures and include the appropriate units mAxValue Figure 1 of 1> Submit Request Answer Return to Assignment Provide Feedback F3 4 m 2m o
Problem 9.17 Consider the frame shown in (Figure 1). EI is constant. Part A Determine the y component of reaction at A. Express your answer to three significant figures and include the appropriate unit A- Value Units Submit Request Answer igure 1 of 1 Part B 6 m Determine the z component of reaction at C. Express your answer to three significant figures and include the appropriate u 18 kN/m G-1 Value Units 4 m Submit Request Answer Part C
Consider the simply supported beam shown in (Figure 1). Suppose that P = 10 kN, w = 5 kN/m. Point D is located just to the left of the 10-kN concentrated load. Follow the sign convention Part A Determine the internal normal force at point C. Express your answer to three significant figures and include the appropriate units. НА ? Nc = Value Units Submit Request Answer Part B Determine the internal shear force at point C. Express your answer...
Consider the frame shown in (Figure 1). Suppose that F = 900 N Figure < 1 of 1 2 m 200 N/m 2 m ULU Part A Determine the magnitude of the reaction at pin Express your answer to three significant figures and include the appropriate units. LE T: HÅ * O a ? Value SA Units Submit Request Answer Part B Determine the magnitude of the reaction at pin B. Express your answer to three significant figures and include...
