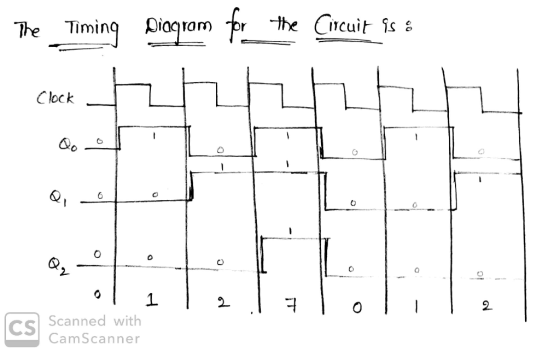

The sequence that this circuit counts in is : 000, 001, 010, 111

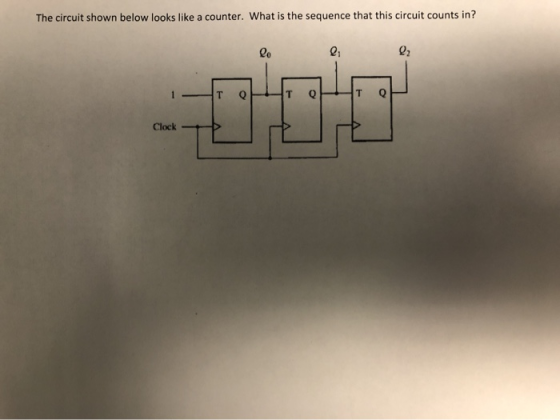

The circuit shown below looks like a counter. What is the sequence that this circuit counts...
Write a model of a counter which counts in the sequence mentioned below. The counter should use behavioral modeling andacase statement. Develop a testbench to test it.The testbench should display the counter output in the simulator console output. Simulate usingthe clock period of10 units for 200 ns. 000, 001, 011, 101, 111, 010, (repeat 000).The counter will have an enable signal (SW2), a reset signal (SW1), and a clock signal (SW15). The output of the counter will be on LED2-LED0.
Up-Down counter with enable using JK flip-flops: Design, construct and test a 2-bit counter that counts up or down. An enable input E determines whether the counter is on or off. If E = 0, the counter is disabled and remains in the present count even though clock pulses are applied to the flip-flops. If E= 1, the counter in enabled and a second input, x, determines the count direction. If x= 1, the circuit counts up with the sequence...
26. A counter is shown below. К, Q, К Q, CLOCK a. Find the state transition table and diagram. b. Show the count sequence. c. What is the mod of this counter? d. Modify this circuit so that it becomes self-starting, ie. it can enter the count sequence from any initial state. 13
26. A counter is shown below. К, Q, К Q, CLOCK a. Find the state transition table and diagram. b. Show the count sequence. c. What is...
a. How many s are oquinst to build a binary counter that counts tihom 0 to 102" s Determine he fhroquensy at the outpst of the last FF of this counter for an input clock trequneney What is the counter's MOD number? d If the counter is initially at zero, what counter will it hold after 2060 pulses? 9 Cnsider the timing diagram shown below for JK Flip Flop (NOR), Complete the output waveform for Q clock IK Apply the...
03. (8 pts) Synchronous two-digit BCD counter, with the two four-bit up-counters with synchronous loading function as shown below. 1) Draw the circuit that counts from 0 to 36.
03. (8 pts) Synchronous two-digit BCD counter, with the two four-bit up-counters with synchronous loading function as shown below. 1) Draw the circuit that counts from 0 to 36.
Design (and then verify your design by simulating it) a two-bit
counter that counts up or down. Use an enable input E to determine
whether the counter is on or off: if E = 0 the counter is disabled
and remains at its present count even if clock pulses are applied.
If E = 1, the counter is enabled and a second input, x, determines
the direction of the count: if x = 1 the circuit counts upward 00,
01,...
1. Redraw the circuit shown in Figure 1 so that it looks like the circuit shown in Figure 2. The functionality of both circuits must be identical. This means that the voltage drop across RL should be the same in both circuits and that the current flowing through Ri should be the same in both circuits Hence, express Vth and Rth in terms of Vo and Ri, R2. Figure 2 is called the Thévinin equivalent of Figure 1 and the...
(4 points) Implement a 3-bit counter circuit that counts 1,2,4,6 and repeat. Provide the transition table and equations only 1.
(4 points) Implement a 3-bit counter circuit that counts 1,2,4,6 and repeat. Provide the transition table and equations only 1.
oint each total Implement decade counter in VHDL (counter that counts from 0 to 9). The counter needs to have the following signals: out, enable, reset. a) max pulse reached which has value 1 only when the out is 9. b) Show its block diagram c) Implement VHDcode that connects two 0-9 counters in order to count from 0 to 99. Make sure that you use two counters developed in a). d) Show the block diagram of the implementation in...
