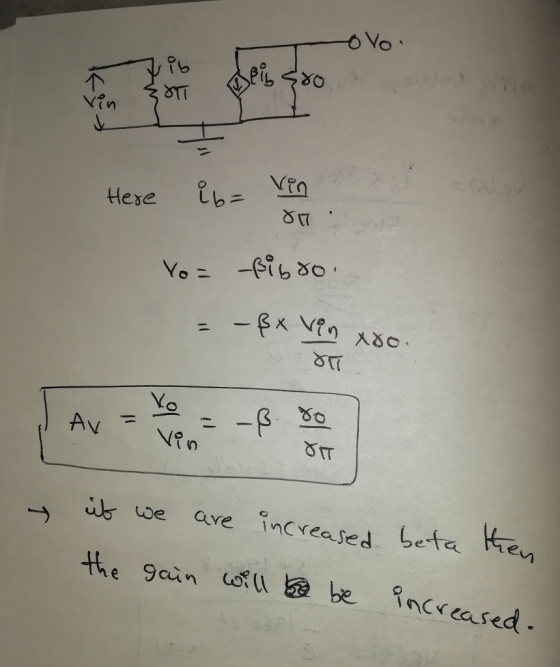

If we increase the βac of a Common-Emitter amplifier, what will be the impact on the...
If we increase the βac of a Common-Emitter amplifier, what will be
the impact on the overall gain of the amplifier? Explain and
justify your answer by providing the relevant equations.
Homework Answers
Add Answer to:
If we increase the βac of a Common-Emitter amplifier, what will be
the impact on the...
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for the small-signal voltage gai...
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for the small-signal voltage gain of Fig. 1(i) in terms of relevant small- signal parameters. (b) Over what frequency range will the gain of the Fig. 1(i) circuit be the same as that of the Fig. 1(i) circuit? (c) Which of the two circuits will show less variation in its de biasing in the presence of processing or temperature variations? Justify your answer. (d) Explain,...
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for...
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for the small-signal voltage gain of Fig. 1(i) in terms of relevant small- signal parameters. (b) Over what frequency range will the gain of the Fig. 1(i) circuit be the same as that of the Fig. 1(i) circuit? (c) Which of the two circuits will show less variation in its de biasing in the presence of processing or temperature variations? Justify your answer. (d) Explain,...
(10 pts) Consider a common-emitter amplifier with emitter resistor shown below. DC voltage source...
Common-emitter amplifier?
(10 pts) Consider a common-emitter amplifier with emitter resistor shown below. DC voltage sources VBB and Vcc bias the transistor at lc-1mA. Let β-100. Determine the overall voltage gain Gv 2. VCC 10 k2 Vsig VBB
(10 pts) Consider a common-emitter amplifier with emitter resistor shown below. DC voltage sources VBB and Vcc bias the transistor at lc-1mA. Let β-100. Determine the overall voltage gain Gv 2. VCC 10 k2 Vsig VBB
If you remove the capacitor CE from across Rg in the Common Emitter amplifier, what should...
If you remove the capacitor CE from across Rg in the Common Emitter amplifier, what should you expected to happen? R1 C2 out C1 01 2N3904 Vin RL R2 CE RE In a Common Emitter amplifier, which components will most significantly impact the Mid-band voltage gain (Av)? Rc R1 C2 out C1 01 2N3904 Vin RL R2 CE RE
the voltage gain of a common emitter amplifier can be increased by increasing what
the voltage gain of a common emitter amplifier can be increased by increasing what
We design a voltage amplifier using a BJT following the plan laid down in the handout "Notes on common emitter...
We design a voltage amplifier using a BJT following the plan laid down in the handout "Notes on common emitter transistor amplifier 8 IN RB Design an amplifier with a Gain VoutVinl30 Assume the transistor gain is B 100. Let Vcc 15 V Choose VCE Vcc-VCE.Sat Choose Ic.o-10 mA. 1. Determine values of resistors Rc, RE, and RB so that the gain is essentially independent of the value of β 2. State and satisfy the load-line relation between lc.a and...
IlI) The Common-Emitter (C-E) is one of 3 configurations of amplifier circuits. Figure 4.34 (a) o...
IlI) The Common-Emitter (C-E) is one of 3 configurations of amplifier circuits. Figure 4.34 (a) of Hambley 2nd Edition shows an actual C-E circuit. Consider a C-E amplifier that utilizes a B- 120 and collector current l 1.5mA and Rc-5.5k2. The amplifier is fed with a signal source having a resistance of R,-5kΩ and the load resistance specified as RL-6K2. Show all work to find R, R, and the overall voltage gain (G,) to g CE (a) Actual circuit RE1...
Given the multistage amplifier below, select all correct statements Multistage-Amp Group of answer choices The collector...
Given the multistage amplifier below, select all correct statements Multistage-Amp Group of answer choices The collector current in Q2 is approximately 16mA The input impedance of the amplifier is approximately 2.5Megohms The output impedance of the amplifier (assuming Q2) has a Beta=100 is close to 500Kohms The overall gain for the circuit (including loading effects) is approximately 13 If an overall gain for the multistage amplifier of 20 is desired, RG can be selected around 450 to account for any...
You found the input and output resistances of your common-emitter amplifier. Explain, in your own words,...
You found the input and output resistances of your common-emitter amplifier. Explain, in your own words, why these values are of practical interest when designing circuits. What happens to your gain, generally, when you attach a load resistance? If you wanted to preserve at least 90% of your measured no-load gain when you hook up a load, how to calculate the value of the minimum load resistance value that would be acceptable.
| 100% Q1. (a) A common-emitter amplifier is shown in Figure Q1(a). Explain why the resistor...
| 100% Q1. (a) A common-emitter amplifier is shown in Figure Q1(a). Explain why the resistor Rs can be used to stabilise the DC biasing. Also, indicate the role of Cci and Cca. 17 marks) +Vcc Ri Cc2 Rs Cc CE RL Vo R2 RE Vs Figure Q1(a) (b) In amplifier design using negative feedback, the desirable properties are obtained at the expense of what? [2 marks] (c) A negative-fecdback amplifier has closed-loop gain A 100, and an open-loop gain...
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for the small-signal voltage gain of Fig. 1(i) in terms of relevant small- signal parameters. (b) Over what frequency range will the gain of the Fig. 1(i) circuit be the same as that of the Fig. 1(i) circuit? (c) Which of the two circuits will show less variation in its de biasing in the presence of processing or temperature variations? Justify your answer. (d) Explain,...
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for the small-signal voltage gain of Fig. 1(i) in terms of relevant small- signal parameters. (b) Over what frequency range will the gain of the Fig. 1(i) circuit be the same as that of the Fig. 1(i) circuit? (c) Which of the two circuits will show less variation in its de biasing in the presence of processing or temperature variations? Justify your answer. (d) Explain,...
Common-emitter amplifier?
(10 pts) Consider a common-emitter amplifier with emitter resistor shown below. DC voltage sources VBB and Vcc bias the transistor at lc-1mA. Let β-100. Determine the overall voltage gain Gv 2. VCC 10 k2 Vsig VBB
(10 pts) Consider a common-emitter amplifier with emitter resistor shown below. DC voltage sources VBB and Vcc bias the transistor at lc-1mA. Let β-100. Determine the overall voltage gain Gv 2. VCC 10 k2 Vsig VBB
If you remove the capacitor CE from across Rg in the Common Emitter amplifier, what should you expected to happen? R1 C2 out C1 01 2N3904 Vin RL R2 CE RE In a Common Emitter amplifier, which components will most significantly impact the Mid-band voltage gain (Av)? Rc R1 C2 out C1 01 2N3904 Vin RL R2 CE RE
We design a voltage amplifier using a BJT following the plan laid down in the handout "Notes on common emitter transistor amplifier 8 IN RB Design an amplifier with a Gain VoutVinl30 Assume the transistor gain is B 100. Let Vcc 15 V Choose VCE Vcc-VCE.Sat Choose Ic.o-10 mA. 1. Determine values of resistors Rc, RE, and RB so that the gain is essentially independent of the value of β 2. State and satisfy the load-line relation between lc.a and...
IlI) The Common-Emitter (C-E) is one of 3 configurations of amplifier circuits. Figure 4.34 (a) of Hambley 2nd Edition shows an actual C-E circuit. Consider a C-E amplifier that utilizes a B- 120 and collector current l 1.5mA and Rc-5.5k2. The amplifier is fed with a signal source having a resistance of R,-5kΩ and the load resistance specified as RL-6K2. Show all work to find R, R, and the overall voltage gain (G,) to g CE (a) Actual circuit RE1...
| 100% Q1. (a) A common-emitter amplifier is shown in Figure Q1(a). Explain why the resistor Rs can be used to stabilise the DC biasing. Also, indicate the role of Cci and Cca. 17 marks) +Vcc Ri Cc2 Rs Cc CE RL Vo R2 RE Vs Figure Q1(a) (b) In amplifier design using negative feedback, the desirable properties are obtained at the expense of what? [2 marks] (c) A negative-fecdback amplifier has closed-loop gain A 100, and an open-loop gain...
