The steel tube of length L=11 cm (Figure P11.53 (b)) is subjected to a compressive force...

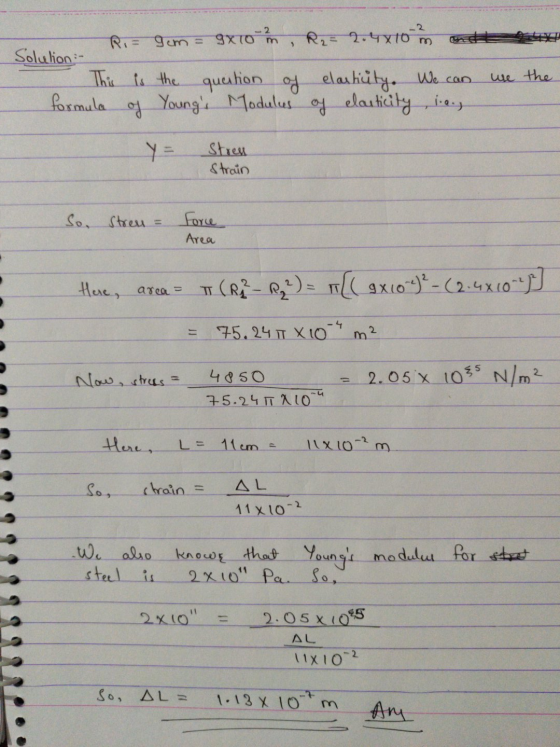

The steel tube of length L=11 cm (Figure P11.53 (b)) is subjected to a compressive force of F = 4850. The outer radius of the tube is R1 = 9 cm, while the inner radius is R2 = 2.4 cm. By what amount ∆L is the tube compressed?
Homework Answers
PLEASE UPVOTE IF YOU LIKE....THANKS
Add Answer to:
The steel tube of length L=11 cm (Figure
P11.53 (b)) is subjected to a compressive force...
Review ▼ Part A The propeller shaft of the tugboat is subjected to the compressive force...
Review ▼ Part A The propeller shaft of the tugboat is subjected to the compressive force and torque shown If the shaft has an inner diameter of 100 mm and an outer diameter of 150 mm, determine the principal stress at a point A located on the outer surface (Figure 1) Enter your answers numerically separated by a comma. Figure 1 of 1 MPa Submit ns 0 kN Part B kN m Determine the orientation of the principal plane Express...
9.2-6 A circular aluminum tube subjected to pure Wrsion by torques T (see figure) has an...
9.2-6 A circular aluminum tube subjected to pure Wrsion by torques T (see figure) has an outer radius 12 equal to 1.5 times the inner radius r;. (a) If the maximum shear strain in the tube is mea- sured as 400 x 10-6 rad, what is the shear strain y, at the inner surface? (b) If the maximum allowable rate of twist is 0.125 °/m and the maximum shear strain is to be kept at 400 x 10 rad by...
Consider a pipe of length L with an inner radius r1 and outer radius r2. The...
Consider a pipe of length L with an inner radius r1 and outer radius r2. The outer surface is thermally insulated while the inner surface is at temperature T1. The thermal conductivity of the wall is k constant. Heat is generated in the wall of the pipe with a volumetric uniform heat generation g (W/m3 ). Assume steady and one dimensional heat transfer (b) Determine the temperature variation in the wall of the pipe and the heat flux on...
LIU Points A hollow steel tube is bend to quarter circle and welded at base as...
LIU Points A hollow steel tube is bend to quarter circle and welded at base as shown in the figure below. The radius of curvature at the center of cross section area is 400 mm. It is subjected to force F. Use the given data to find 1. The reaction forces and moments at the critical cross section area 2. Find the Von Mises stress at the critical location (Neglect transverse shear) 3. If the yield stress of the materials...
A spring has an unstretched length of 11 cm . It exerts a restoring force F...
A spring has an unstretched length of 11 cm . It exerts a restoring force F when stretched to a length of 12 cm. For what total stretched length of the spring is its restoring force 3F? At what compressed length is the restoring force 2F?
(7%) Problem 1: The rotation of a 11 kg motorcycle wheel is depicted in the figure....
(7%)
Problem 1: The rotation of a 11 kg
motorcycle wheel is depicted in the figure. The wheel should be
approximated to be an annulus of uniform density with inner radius
R1 = 29 cm and outer radius
R2 = 32 cm.
Randomized Variablesω = 120 rad/s
R1 = 29 cm
R2 = 32 cm
m = 11 kg
Calculate
the rotational kinetic energy in the motorcycle wheel if its
angular velocity is 120 rad/s in J.
KErot =
|...
The plastic block is subjected to an axial compressive force of F 400 N. (Figure 1)...
The plastic block is subjected to an axial compressive force of F 400 N. (Figure 1) The caps at the top and bottom distribute the load uniformly throughout the block Part A Determine the average normal stress acting along section - Express your answer to three significant figures and include appropriate units. : Å Value RO? kPa 0.. = Sube Best - Part B Determine the average shear stress acting long section Express your answer to three significant figures and...
A cylindrical capacitor consists of a solid inner conducting core with radius 0.280 cm, surrounded by an outer hollow conducting tube.
A cylindrical capacitor consists of a solid inner conducting core with radius 0.280 cm, surrounded by an outer hollow conducting tube. The two conductors are separated by air, and the length of the cylinder is 13.5 cm. The capacitance is 39.0 pF. Part ACalculate the outer radius of the hollow tube. Part BWhen the capacitor is charged to 130 V, what is the charge per unit length lambda on the capacitor?
An ideal toroidal solenoid (Figure 1) has inner radius r1 = 15.5 cm and outer radius...
An ideal toroidal solenoid (Figure 1) has inner radius r1 = 15.5 cm and outer radius r2 = 18.3 cm . The solenoid has 150 turns and carries a current of 8.70 A . a) What is the magnitude of the magnetic field at 12.8 cm from the center of the torus? b) What is the magnitude of the magnetic field at 16.2 cm from the center of the torus? C) What is the magnitude of the magnetic field at...
A steel rod has a radius R of 9.5 mm and a length L or 81...
A steel rod has a radius R of 9.5 mm and a length L or 81 cm. A force F of 6.2 X 104 N stretches it axially. ( Y = 2.0 X 1011 N/m2). a) What is the stress in the rod? b) What is the elongation of the rod under the force. What is the strain?
Review ▼ Part A The propeller shaft of the tugboat is subjected to the compressive force and torque shown If the shaft has an inner diameter of 100 mm and an outer diameter of 150 mm, determine the principal stress at a point A located on the outer surface (Figure 1) Enter your answers numerically separated by a comma. Figure 1 of 1 MPa Submit ns 0 kN Part B kN m Determine the orientation of the principal plane Express...
9.2-6 A circular aluminum tube subjected to pure Wrsion by torques T (see figure) has an outer radius 12 equal to 1.5 times the inner radius r;. (a) If the maximum shear strain in the tube is mea- sured as 400 x 10-6 rad, what is the shear strain y, at the inner surface? (b) If the maximum allowable rate of twist is 0.125 °/m and the maximum shear strain is to be kept at 400 x 10 rad by...
LIU Points A hollow steel tube is bend to quarter circle and welded at base as shown in the figure below. The radius of curvature at the center of cross section area is 400 mm. It is subjected to force F. Use the given data to find 1. The reaction forces and moments at the critical cross section area 2. Find the Von Mises stress at the critical location (Neglect transverse shear) 3. If the yield stress of the materials...
(7%)
Problem 1: The rotation of a 11 kg
motorcycle wheel is depicted in the figure. The wheel should be
approximated to be an annulus of uniform density with inner radius
R1 = 29 cm and outer radius
R2 = 32 cm.
Randomized Variablesω = 120 rad/s
R1 = 29 cm
R2 = 32 cm
m = 11 kg
Calculate
the rotational kinetic energy in the motorcycle wheel if its
angular velocity is 120 rad/s in J.
KErot =
|...
The plastic block is subjected to an axial compressive force of F 400 N. (Figure 1) The caps at the top and bottom distribute the load uniformly throughout the block Part A Determine the average normal stress acting along section - Express your answer to three significant figures and include appropriate units. : Å Value RO? kPa 0.. = Sube Best - Part B Determine the average shear stress acting long section Express your answer to three significant figures and...
