A voltmeter and an ammeter are used to respectively monitor the voltage across and the current...

Question

Question

science Advanced-Physics

Answer 1

Answer #1

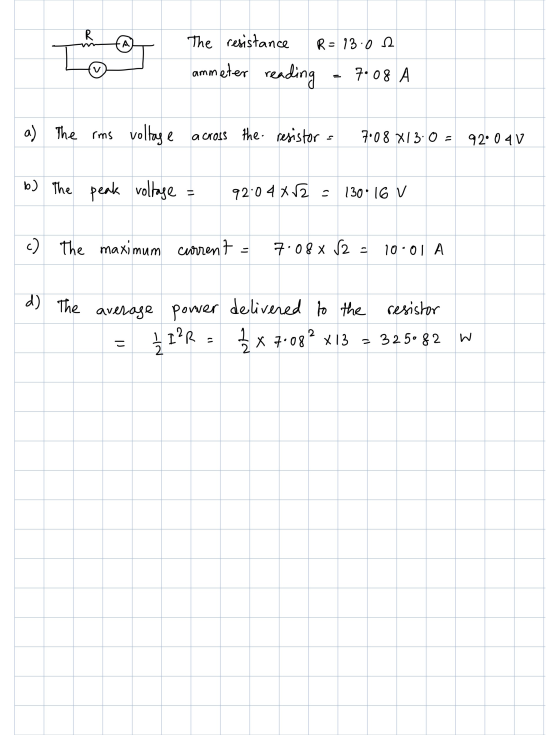

R -A The resistance R = 13:02 ammeter reading 7008 A a) The rms voltage across the resistor - 7:08 X13: 0 = 92.04 V b) The pe

> avg power is not 1/2 * I^2 * R it is I^2 * R

idfwu Mon, Dec 13, 2021 5:12 PM

Answer 2

Similar Homework Help Questions

A voltmeter and an ammeter are used to respectively monitor the voltage across and the current...

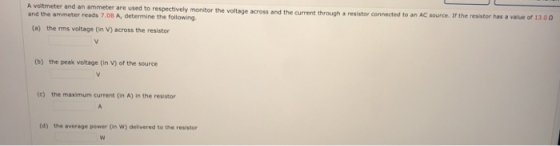

A voltmeter and an ammeter are used to respectively monitor the voltage across and the current through a resistor connected to an AC source. If the resistor has a value of 14.0 Ω and the ammeter reads 8.04 A, determine the following. (a) the rms voltage (in V) across the resistor V (b) the peak voltage (in V) of the source V (c) the maximum current (in A) in the resistor A (d) the average power (in W) delivered to...
NTNU ASK YOUR TEACHER voltmeter and an eter are used to respectively monitor the voltage and...

NTNU ASK YOUR TEACHER voltmeter and an eter are used to respectively monitor the voltage and the current characted to Ver the follow b) the protein V) of the source c) the maximum current in A) in the resistor А d) the average power in W) delivered to the resistor w
A 2.04 kΩ resistor is connected to an AC voltage source with an rms voltage of...

A 2.04 kΩ resistor is connected to an AC voltage source with an rms voltage of 115 V. Hint: Apply Ohm's law and the relationship between the maximum and rms values in an AC circuit a.) What is the maximum potential difference across the resistor (in V)? b.) What is the maximum current through the resistor (in A)? c.) What is the rms current through the resistor (in A)? d.) What is the average power dissipated by the resistor (in...

An AC voltage source is connected across a 100 Ohm resistor. If the source is set...

An AC voltage source is connected across a 100 Ohm resistor. If the source is set at peak voltage of 2 V at 60 Hz, find the RMS current through the resistor.
When an AC source is connected across a 22.0 Ω resistor, the output voltage is given...

When an AC source is connected across a 22.0 Ω resistor, the output voltage is given by Δv = (140 V)sin(70πt). Determine the following quantities. (a) maximum voltage ____ V (b) rms voltage ____ V (c) rms current ____ A (d) peak current ____ A (e) Find the current when t = 0.0045 s. ____ A
When an AC source is connected across a 10.0 Ω resistor, the output voltage is given...

When an AC source is connected across a 10.0 Ω resistor, the output voltage is given by Δv = (140 V)sin(50πt). Determine the following quantities. (a) maximum voltage V (b) rms voltage V (c) rms current A (d) peak current A (e) Find the current when t = 0.0045 s. A

When a battery voltage is measured by placing a high-resistance voltmeter across the terminals of the...

When a battery voltage is measured by placing a high-resistance voltmeter across the terminals of the battery, the voltmeter reads 6.3V. With the voltmeter leads still attached, the battery terminals are then connected to a resistor in series with an ammeter. In this arrangement, the ammeter reads 150 mA, and the voltmeter reads 5.9V. What are the emf and the internal resistance of the battery?
When an AC source is connected across a 23.0 12 resistor, the output voltage is given...

When an AC source is connected across a 23.0 12 resistor, the output voltage is given by AV = (160 V)sin(70st). Determine the following quantities. (a) peak voltage (b) rms voltage v (c) rms current (d) peak current (e) Find the current when t = 0.0045 s.
The output voltage of an AC generator is given by Δv = (110 V)sin(50πt). The generator...

The output voltage of an AC generator is given by Δv = (110 V)sin(50πt). The generator is connected across a 14.0-Ω resistor. (a) By inspection, what is the maximum voltage? V (b) By inspection, what is the frequency? Hz (c) Find the rms voltage across the resistor. V (d) Find the rms current in the resistor. A (e) Find the maximum current in the resistor. A (f) Find the power delivered to the resistor. W (g) Find the current when...

5. A resistor and capacitor are connected in series with an applied AC voltage source. There...

5. A resistor and capacitor are connected in series with an applied AC voltage source. There is no inductor. Separate voltmeter readings across the resistor and capacitor give values of 50 V and 75 V (rms) respectively. What is the (rms) voltage of the source? (5 points)
