The critical path for the network activities shown below is __ with duration ___
|
Activity |
Duration |
Immediate Predecessors |
|
A |
2 |
- |
|
B |
4 |
- |
|
C |
1 |
A,B |
|
D |
6 |
A,B |
|
E |
3 |
B,C,D |
Homework Answers

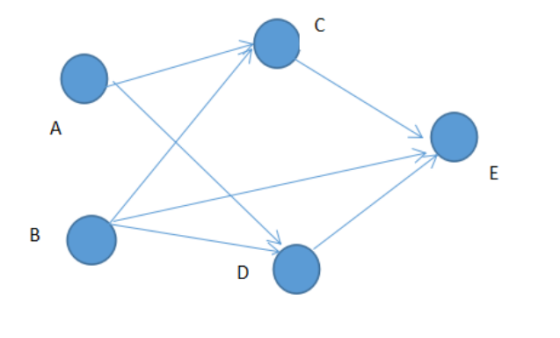

The project network is shown below:
The project completion path is along A-C-E or B-D-E
Duration along path A-C-E = 2 + 1 + 3 = 6
Duration along B-D-E = 4 + 6 + 3 = 13
Since, longer time is along B-D-E,
The critical path for the network activities is along B-D-E with duration 13.
