[1] In two meshing gears, when the module m=2 (mm), the center distance is 72mm, and...
[1] In two meshing gears, when the module m=2 (mm), the center distance is 72mm, and the angular velocity ratio w2/w1 = 3, find the number of teeth z1 and z2 of the two gears.
Homework Answers

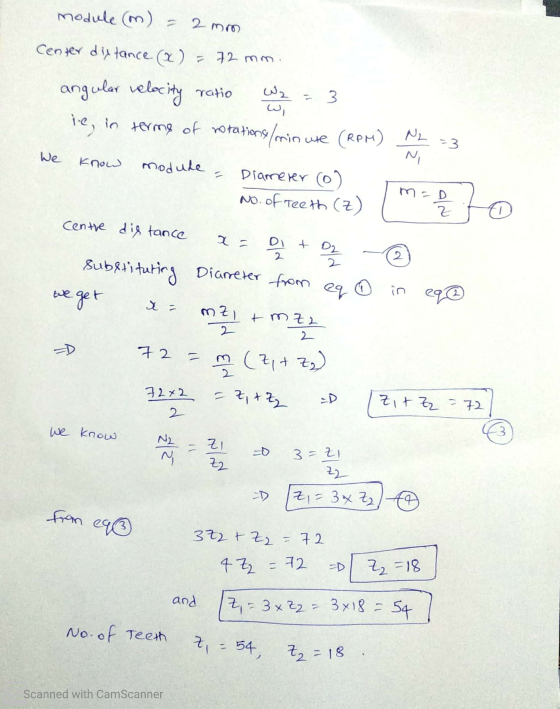

please find below solution
Add Answer to:
[1] In two meshing gears, when the module m=2 (mm), the center
distance is 72mm, and...
Two mating spur gears of parallel shafts with center distance of 4-in. are to be connected...
Two mating spur gears of parallel shafts with center distance of 4-in. are to be connected by 6- pitch, and with pressure angle 20°. The gears providing a velocity ratio of -3.0. Determine the following: a) the pitch diameters and numbers of teeth in the pinion and gear. b) Determine whether there will be interference when standard full-depth teeth are used. c) Determine the contact ratio.

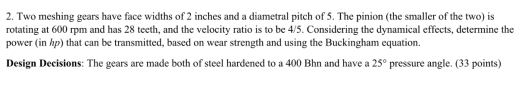

2. Two meshing gears have face widths of 2 inches and a diametral pitch of 5....
2. Two meshing gears have face widths of 2 inches and a diametral pitch of 5. The pinion (the smaller of the two) is rotating at 600 rpm and has 28 teeth, and the velocity ratio is to be 4/5. Considering the dynamical effects, determine the power (in hp) that can be transmitted, based on wear strength and using the Buckingham equation. Design Decisions: The gears are made both of steel hardened to a 400 Bhn and have a 25°...
2/1 A spur gearset has a module of 4 mm and a pressure angle of 25°,...
2/1 A spur gearset has a module of 4 mm and a pressure angle of 25°, and a velocity ratio of 2.80. The pinion has 20 teeth. 1) Checok for interference; show your work. 2) Find: a) The number of teeth on the driven gear b)The circular pitch c) The pitch and base diameters d) The theoretical center distance e) The contact ratio
(1) A pair of meshing spur gears having 20 degree full depth teeth and face widths...
(1) A pair of meshing spur gears having 20 degree full depth teeth and face widths of 2.5-in, a diametral pitch of 4 and both made of steel having a BHN of 400. The pinion is rotating at 600 pm, has 30 teeth and the velocity ratio is 2/3. Assume uniform power source with moderate shock, less rigid mounting with contact across the full face. Find the maximum horsepower that can be transmitted based on strength using the AGMA method....
mechanical engineering design Problem #2: A pair of helical gears have a module in the normal...
mechanical engineering design
Problem #2: A pair of helical gears have a module in the normal plane of 5 mm, a normal pressure angle of 20, and a helix angle of 35. The gears mesh with parallel shafts and have 32 and 52 teeth. Determine the transverse module, the pitch diameters, the center distance, and the minimum face width.
A pair of spur gears on 168 mm centers have a 3:1 speed reduction ratio. With...
A pair of spur gears on 168 mm centers have a 3:1 speed reduction ratio. With a module of 4 mm, what are the numbers of teeth and pitch diameters of the two gears
A gear train shown below has the following data: Z2- 18T, Z 72T Z 16T and...
A gear train shown below has the following data: Z2- 18T, Z 72T Z 16T and Zs 48T. If gear 2 rotates at 1200 RPM (CWD) and transmit 10 kW power, find the following:- a- the center distance between gears 2 and 5 (gears' module- 5 mm). b- the velocity of gears5 c- bending stress resulted in gear 2 teeth. Assume reasonable face width for gears.
Two helical gears have shafts at 90° and a speed ratio of 3:1. The smaller gear...
Two helical gears have shafts at 90° and a speed ratio of 3:1. The smaller gear has a helix angle of 37.5°, N =20 teeth, and Pon=5. The larger gear has a helix angle of 52.5º. Find the center distance in inches,
2. A shaft supported by two bearings with 2 gears is indicated below W1-50 lb W2...
2. A shaft supported by two bearings with 2 gears is indicated below W1-50 lb W2 100 lb The deflection at W1 is 0.0012 in The deflection at W2 is 0.0003 in Assume: a) Weight of the shaft is negligible Find the: 1) Critical Speed in RPM using the Rayleigh-Ritz equation
Consider the following drive train. Gears are shown by their pitch diameters. Gear 2 is the...
Consider the following drive train. Gears are shown by their pitch diameters. Gear 2 is the pinion Gear diameter not drawn to scale. N4 Ng No 12 + 3 4 6 N2 5 ng N: Question 1 100 pts All gears have a 5 mm module and 25 degree pressure angle The pinion rotates at 100 RPM and has 10 teeth Each simple gear set has a 10:1 gear ratio. Determine: Pinion pitch diameter (mm) overall train ratio [Choose ]...
2. Two meshing gears have face widths of 2 inches and a diametral pitch of 5. The pinion (the smaller of the two) is rotating at 600 rpm and has 28 teeth, and the velocity ratio is to be 4/5. Considering the dynamical effects, determine the power (in hp) that can be transmitted, based on wear strength and using the Buckingham equation. Design Decisions: The gears are made both of steel hardened to a 400 Bhn and have a 25°...
2/1 A spur gearset has a module of 4 mm and a pressure angle of 25°, and a velocity ratio of 2.80. The pinion has 20 teeth. 1) Checok for interference; show your work. 2) Find: a) The number of teeth on the driven gear b)The circular pitch c) The pitch and base diameters d) The theoretical center distance e) The contact ratio
(1) A pair of meshing spur gears having 20 degree full depth teeth and face widths of 2.5-in, a diametral pitch of 4 and both made of steel having a BHN of 400. The pinion is rotating at 600 pm, has 30 teeth and the velocity ratio is 2/3. Assume uniform power source with moderate shock, less rigid mounting with contact across the full face. Find the maximum horsepower that can be transmitted based on strength using the AGMA method....
mechanical engineering design
Problem #2: A pair of helical gears have a module in the normal plane of 5 mm, a normal pressure angle of 20, and a helix angle of 35. The gears mesh with parallel shafts and have 32 and 52 teeth. Determine the transverse module, the pitch diameters, the center distance, and the minimum face width.
A pair of spur gears on 168 mm centers have a 3:1 speed reduction ratio. With a module of 4 mm, what are the numbers of teeth and pitch diameters of the two gears
A gear train shown below has the following data: Z2- 18T, Z 72T Z 16T and Zs 48T. If gear 2 rotates at 1200 RPM (CWD) and transmit 10 kW power, find the following:- a- the center distance between gears 2 and 5 (gears' module- 5 mm). b- the velocity of gears5 c- bending stress resulted in gear 2 teeth. Assume reasonable face width for gears.
Two helical gears have shafts at 90° and a speed ratio of 3:1. The smaller gear has a helix angle of 37.5°, N =20 teeth, and Pon=5. The larger gear has a helix angle of 52.5º. Find the center distance in inches,
2. A shaft supported by two bearings with 2 gears is indicated below W1-50 lb W2 100 lb The deflection at W1 is 0.0012 in The deflection at W2 is 0.0003 in Assume: a) Weight of the shaft is negligible Find the: 1) Critical Speed in RPM using the Rayleigh-Ritz equation
Consider the following drive train. Gears are shown by their pitch diameters. Gear 2 is the pinion Gear diameter not drawn to scale. N4 Ng No 12 + 3 4 6 N2 5 ng N: Question 1 100 pts All gears have a 5 mm module and 25 degree pressure angle The pinion rotates at 100 RPM and has 10 teeth Each simple gear set has a 10:1 gear ratio. Determine: Pinion pitch diameter (mm) overall train ratio [Choose ]...
