Homework Answers
Add Answer to:
Moment and shear Diagrams of problem please hurry! ill give a
thumbs up!
SHOW ALL WORK!...
Please find all reactions with Moment Distribution Method & draw shear/moment diagrams. Please show all work. Thank you in advance! Problem #2: For the indeterminate beam shown below: a) Determin...
Please find all reactions with Moment Distribution Method &
draw shear/moment diagrams. Please show all work. Thank you in
advance!
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw shear and moment diagrams. El is constant. Show your work. 18 kips 24 kips 6 k/ft 16 k/ft 10ft 12 ft 12ft
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw...
Show work please. Problem 3 Draw the shear and moment diagrams for the beam. F1 =...
Show work please.
Problem 3 Draw the shear and moment diagrams for the beam. F1 = 13 kN θ=20 deg F2 30 kN Mo= 20 kNm a=3.0 m b=3.0 m с 2.0 m d=2.0 m F1 I Page 1/2
PLEASE SHOW WORK. WILL UPVOTE! Only need Shear & Moment Diagrams 5) A 30 foot long...
PLEASE SHOW WORK. WILL UPVOTE! Only need Shear &
Moment Diagrams
5) A 30 foot long simply-supported beam supports the unfactored loads shown in the figure. The uniformly distributed dead load, wo, includes the self-weight of the beam, and is constant along the full beam length. Two different uniformly distributed live loads, wuu and wiz are applied as indicated. Concentrated dead, PD, and live, Pt, loads are applied as shown in the figure. Draw factored shear force and factored bending...
For the below beam draw the shear and moment diagram. On work submitted to the ELC...
For the below beam draw the shear and moment diagram. On work
submitted to the ELC show a free body of the beam with all of its
loads as well as the shear and moment diagrams. Label all points.
Use the sign convention used in class. Assume that the
cross-section of the beam is made out of a material with an
allowable stress of 24 ksi. The cross-section is b inches wide and
d inches tall. The b dimension is...
Show your work and draw the shear and moment diagrams, and specify the maximum and minimum...
Show your work and draw the shear and
moment diagrams, and specify the maximum and minimum bending moment
of each beam.
4. am of this holstis supported by shear and monment diagrams of t 25 ft lb 10 lb/ft 3 ft 005 5 ft 91 00T L0OST 10 ft 2 VImax MImax
2.5 kips/ft 15 kips PROBLEM 5.10 Draw the shear and bending-moment diagrams for the beam and...
2.5 kips/ft 15 kips PROBLEM 5.10 Draw the shear and bending-moment diagrams for the beam and loading shown, and determine the maximum absolute value (a of the shear (b) of the bending moment. ft 3ft 6ft
shesr and moment diagram SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the...
shesr and moment diagram
SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below. There is a pin at A and a rocker at B. a. There are 3 sections. Draw the FBD for each section. Also, give the shear and moment equation for each section. у 125 lb/ft 1000 lb A 10 ft 6 ft 10 ft B
\Please help me to do part (c)Part c) Using the shear and moment diagrams created for...
\Please help me to do part (c)Part c) Using the shear and
moment diagrams created for the beam shown in “c” determine the
maximum bending stress created for the largest positive bending
moment and the largest negative bending moment. Consider the beam
to be a W 12 x 79.
Part a) Draw the shear and bending moment diagrams. Clearly show the values, slopes, and degree of curves (e.g., parabola, 3rd degree polynomial). 10 k 20 k 20 k 75 kN...
Problem 2 - Draw the shear and bending moment diagrams for the beam shown below. Clearly...
Problem 2 - Draw the shear and bending moment diagrams for the beam shown below. Clearly label th shear and moment values at all points. (25 points) 20 k 40 k-ft 5 ft 10 ft 10 ft

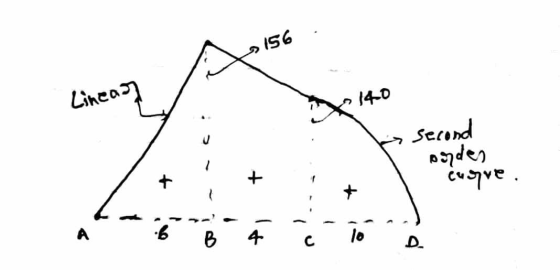

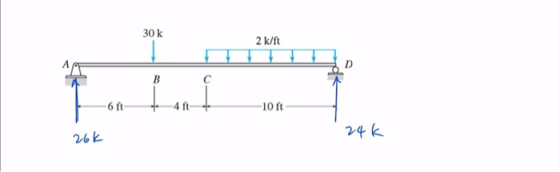

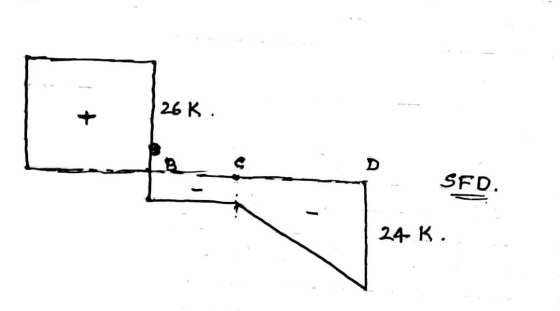

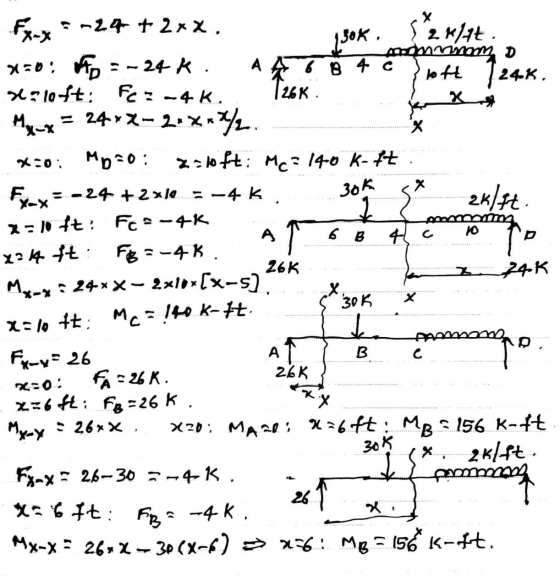

draw moment and shear diagram 30 k 2 k/ft B с -6ft -10 ft 4k ие
draw moment and shear diagram
30 k 2 k/ft B с -6ft -10 ft 4k ие
Please find all reactions with Moment Distribution Method &
draw shear/moment diagrams. Please show all work. Thank you in
advance!
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw shear and moment diagrams. El is constant. Show your work. 18 kips 24 kips 6 k/ft 16 k/ft 10ft 12 ft 12ft
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw...
Show work please.
Problem 3 Draw the shear and moment diagrams for the beam. F1 = 13 kN θ=20 deg F2 30 kN Mo= 20 kNm a=3.0 m b=3.0 m с 2.0 m d=2.0 m F1 I Page 1/2
PLEASE SHOW WORK. WILL UPVOTE! Only need Shear &
Moment Diagrams
5) A 30 foot long simply-supported beam supports the unfactored loads shown in the figure. The uniformly distributed dead load, wo, includes the self-weight of the beam, and is constant along the full beam length. Two different uniformly distributed live loads, wuu and wiz are applied as indicated. Concentrated dead, PD, and live, Pt, loads are applied as shown in the figure. Draw factored shear force and factored bending...
For the below beam draw the shear and moment diagram. On work
submitted to the ELC show a free body of the beam with all of its
loads as well as the shear and moment diagrams. Label all points.
Use the sign convention used in class. Assume that the
cross-section of the beam is made out of a material with an
allowable stress of 24 ksi. The cross-section is b inches wide and
d inches tall. The b dimension is...
Show your work and draw the shear and
moment diagrams, and specify the maximum and minimum bending moment
of each beam.
4. am of this holstis supported by shear and monment diagrams of t 25 ft lb 10 lb/ft 3 ft 005 5 ft 91 00T L0OST 10 ft 2 VImax MImax
2.5 kips/ft 15 kips PROBLEM 5.10 Draw the shear and bending-moment diagrams for the beam and loading shown, and determine the maximum absolute value (a of the shear (b) of the bending moment. ft 3ft 6ft
shesr and moment diagram
SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below. There is a pin at A and a rocker at B. a. There are 3 sections. Draw the FBD for each section. Also, give the shear and moment equation for each section. у 125 lb/ft 1000 lb A 10 ft 6 ft 10 ft B
\Please help me to do part (c)Part c) Using the shear and
moment diagrams created for the beam shown in “c” determine the
maximum bending stress created for the largest positive bending
moment and the largest negative bending moment. Consider the beam
to be a W 12 x 79.
Part a) Draw the shear and bending moment diagrams. Clearly show the values, slopes, and degree of curves (e.g., parabola, 3rd degree polynomial). 10 k 20 k 20 k 75 kN...
Problem 2 - Draw the shear and bending moment diagrams for the beam shown below. Clearly label th shear and moment values at all points. (25 points) 20 k 40 k-ft 5 ft 10 ft 10 ft
draw moment and shear diagram
30 k 2 k/ft B с -6ft -10 ft 4k ие
