Homework Answers

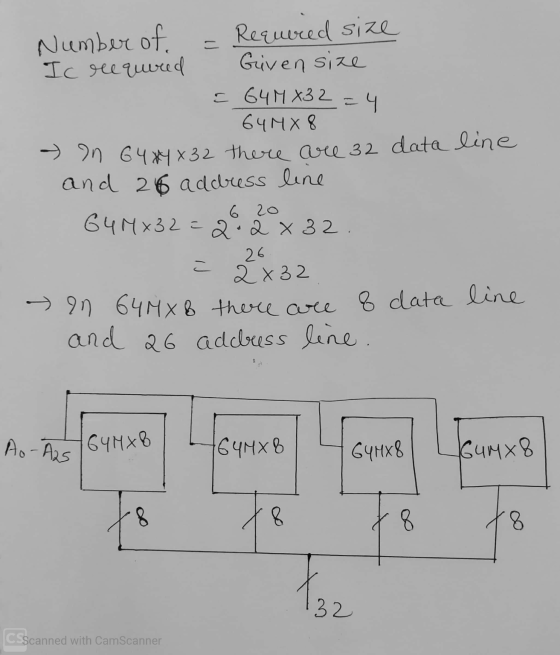

answer: In the 64*32 there are 26 address line and 32 data line
In the 64*8 bit there are 26 address line and 8 date line
the detailed solution is attached here
