Homework Answers

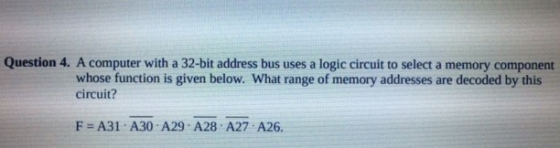

Here, the highest 6 bits of the address are given by :
1010 01
The remaining bits can span the entire range, with each bit taking a 0 or 1.
Thus,
- lowest address in binary = 1010 0100 0000 0000 0000 0000 0000 0000
- highest address in binary = 1010 0111 1111 1111 1111 1111 1111 1111
which is equivalent to the hex range :
0xA4000000 - 0xA7FFFFFF
