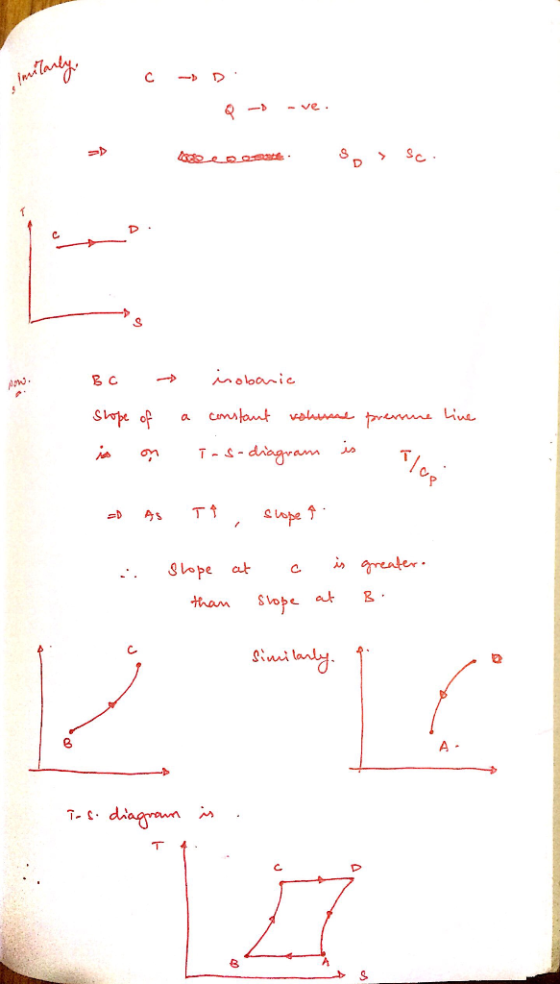

introduction to the thermodynamics of materials

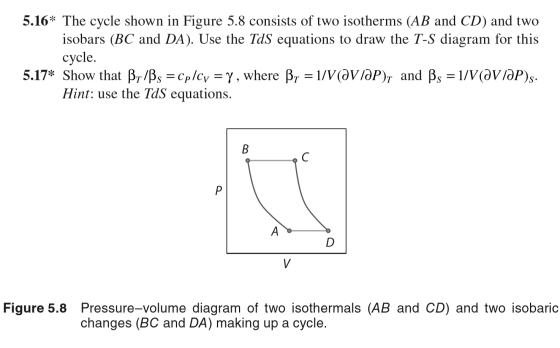

5.16* The cycle shown in Figure 5.8 consists of two isotherms (AB and CD) and two isobars (BC and DA). Use the TdS equations to draw the 7-S diagram for this cycle. 5.17* Show that B, /ßBs = Cp/cy =Y, where Br = 1/V(OV1DP)r and Bs =1/V0V/àP)s Hint: use the TdS equations. B P A D V Figure 5.8 Pressure-volume diagram of two isothermals (AB and CD) and two isobaric changes (BC and DA) making up a cycle.
Homework Answers

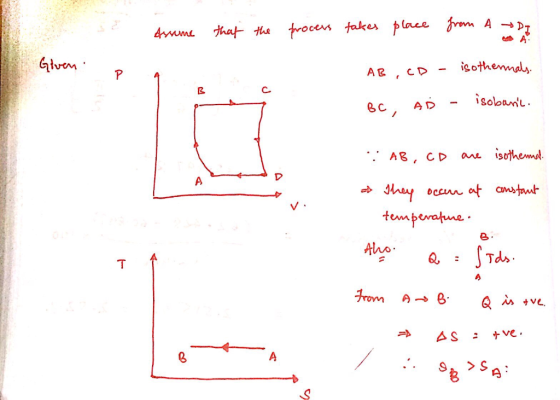

5.16
Problem 1: A beam with a rectangular cross section is loaded as shown in the figure....
Problem 1: A beam with a rectangular cross section is loaded as shown in the figure. The cross section of the beam is 3 mm wide and 8 mm high. a) Calculate the reaction forces R and R, (5 200 N 500 N pts) b) Using the singularity functions write out A в со the load intensity g(x) and obtain the shear V(x) and Moment M(x) equations by R 1100 N integrating g(x). (5 pts). 10 mm 10 mm 10...
3- (SKMMIH3/SME2113) from plastic having modulus of elasticity, E-4.0GPa a) Bar ABCD shown in Figure Q3a is made The bar consists of three segments, AB, BC, and CD. Segment AB is hollow and segm...
3- (SKMMIH3/SME2113) from plastic having modulus of elasticity, E-4.0GPa a) Bar ABCD shown in Figure Q3a is made The bar consists of three segments, AB, BC, and CD. Segment AB is hollow and segments BC and CD are solids If the shortening (contraction) of bar ABCD is limited to 4.0 mm, determine the maximum allowable force P to be applied at C. (8 marks) 90 mm ΟΙ 00 mm 1080 min PL 500 mm 250 mm 250 mm Figure Q3a...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LA...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LAB = LBC = 9.0 ft, LCD = 18.0 ft. AB CD Sum the forces in the y direction to find an expression that includes the reaction forces Ay, Cy, and Dy acting on the beam. Positive values for the reactions are...
8. 10 Points The figure on the right shows the path of an object. In the...
8. 10 Points The figure on the right shows the path of an object. In the region AB and CD, the object moves along a straight line path. In the region BC and DA, the object moves along a partial circular path with radius of R-2.0m and R 3.0m as shown. During the entire time, the object moves with a constant speed of w6.0m/s. For the four point P, p Q, U and V as can be seen in the...
Value for transmissivity is 185，location is B，flow rate is 20 Question 1: No-flow boundary conditions are implemented by: Question 2: Flow Calculation with no abstraction or rech...
Value for transmissivity is 185，location is B，flow rate is
20
Question 1: No-flow boundary conditions are implemented by: Question 2: Flow Calculation with no abstraction or recharge m2/day m/day Condition 1 flow is Condition 2 flow is Question 3: Recharge or abstraction at a node is calculated by: Question 4: Water Level and Flows for Condition 1 are: Water level at pumping/recharge node Flow accross boundary AB Flow accross boundary CD ..,..) is m3/dayFlow accross boundary BC m/dayFlow accross boundary...
Given the State Table Below ?" ?" X-1 AB C 0 0 0O01 0OI011 01 00...
Given the State Table Below ?" ?" X-1 AB C 0 0 0O01 0OI011 01 00 0IOI01 1 01 01OIO0 01 A. Draw a state Diagram. B. Create the "design truth table" for the "next state" and the "output" C. Make a Karnaugh for each "next state" and the "output" When making the Karnaugh maps, "xA" should be along the top and "BC" along the side (The two missing states should be considered "DONT CARES") D. Write the "Next State"...
Yes, this is one problem. Please solve ALL PARTS. Guaranteed thumbs up for the person who solves it. 3 1. Photodiode...
Yes, this is one problem. Please solve ALL PARTS. Guaranteed
thumbs up for the person who solves it.
3 1. Photodiode amplifier circuit You are designinga CF photosensor circuit for a light detection and ranging LiDAR) system in autonomous vehicles. The circuit utilizes a transimpedance amplifier to convert low-level RF photodiode current signal to a usable voltage output. It consists of a photodiode, an amplifier, and feedback capacitor/resistor pair as shown in Figure 1. We will derive simple equations to...
A retaining wall is to be constructed in a normally consolidated clayey sand deposit in the...
A retaining wall is to be constructed in a normally consolidated clayey sand deposit in the figure below. Ground water table is lmbelow the bottom of the excavation. A 20 kN/m2 surcharge pressure is applied over a wide area at the ground surface. Assume the wall moves into the excavation. Consider long-tem analysis (as it is usually the more critical analysis in excavation problems). Ignore capillarity as shown 20 kPa Clayey sand T17 kNm Y-20 kNm 5 m c'-10 kPa...
Vout should be a sinusoid signal of 12Vp-p Dc voltage to uA741 : +/-8.5V Please simulate...
Vout should be a sinusoid signal of 12Vp-p
Dc voltage to uA741 : +/-8.5V
Please simulate as well
please help, im completely lost on this
this is all of the information
Experiment 5. RC Sinusoidal Oscillators PURPOSE: This laboratory provides an introduction to the background, analysis and design of sinusoidal oscillators using RC feedback networks and active devices to achieve the criteria for continuous oscillations to occur. EQUIPMENT REQUIRED : 1 Operational amplifier u.A741 1 CEU development station Resistors and...
Introduction: A manufacturing company that possesses many complexities can be highly challenged when maintaining production goals...
Introduction: A manufacturing company that possesses many complexities can be highly challenged when maintaining production goals and standards in conjunction with a major organizational change. Garment manufacturing is a complex industry for many reasons. The product line is a complex array of styles, seasons, varying life cycles and multidimensional sizing. Many sewn product firms are viewing TQM as the appropriate strategy to meet the double demand of competition and quality; however, many companies are finding sustaining their TQM adoption decision...
Problem 1: A beam with a rectangular cross section is loaded as shown in the figure. The cross section of the beam is 3 mm wide and 8 mm high. a) Calculate the reaction forces R and R, (5 200 N 500 N pts) b) Using the singularity functions write out A в со the load intensity g(x) and obtain the shear V(x) and Moment M(x) equations by R 1100 N integrating g(x). (5 pts). 10 mm 10 mm 10...
3- (SKMMIH3/SME2113) from plastic having modulus of elasticity, E-4.0GPa a) Bar ABCD shown in Figure Q3a is made The bar consists of three segments, AB, BC, and CD. Segment AB is hollow and segments BC and CD are solids If the shortening (contraction) of bar ABCD is limited to 4.0 mm, determine the maximum allowable force P to be applied at C. (8 marks) 90 mm ΟΙ 00 mm 1080 min PL 500 mm 250 mm 250 mm Figure Q3a...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LAB = LBC = 9.0 ft, LCD = 18.0 ft. AB CD Sum the forces in the y direction to find an expression that includes the reaction forces Ay, Cy, and Dy acting on the beam. Positive values for the reactions are...
8. 10 Points The figure on the right shows the path of an object. In the region AB and CD, the object moves along a straight line path. In the region BC and DA, the object moves along a partial circular path with radius of R-2.0m and R 3.0m as shown. During the entire time, the object moves with a constant speed of w6.0m/s. For the four point P, p Q, U and V as can be seen in the...
Value for transmissivity is 185，location is B，flow rate is
20
Question 1: No-flow boundary conditions are implemented by: Question 2: Flow Calculation with no abstraction or recharge m2/day m/day Condition 1 flow is Condition 2 flow is Question 3: Recharge or abstraction at a node is calculated by: Question 4: Water Level and Flows for Condition 1 are: Water level at pumping/recharge node Flow accross boundary AB Flow accross boundary CD ..,..) is m3/dayFlow accross boundary BC m/dayFlow accross boundary...
Given the State Table Below ?" ?" X-1 AB C 0 0 0O01 0OI011 01 00 0IOI01 1 01 01OIO0 01 A. Draw a state Diagram. B. Create the "design truth table" for the "next state" and the "output" C. Make a Karnaugh for each "next state" and the "output" When making the Karnaugh maps, "xA" should be along the top and "BC" along the side (The two missing states should be considered "DONT CARES") D. Write the "Next State"...
Yes, this is one problem. Please solve ALL PARTS. Guaranteed
thumbs up for the person who solves it.
3 1. Photodiode amplifier circuit You are designinga CF photosensor circuit for a light detection and ranging LiDAR) system in autonomous vehicles. The circuit utilizes a transimpedance amplifier to convert low-level RF photodiode current signal to a usable voltage output. It consists of a photodiode, an amplifier, and feedback capacitor/resistor pair as shown in Figure 1. We will derive simple equations to...
A retaining wall is to be constructed in a normally consolidated clayey sand deposit in the figure below. Ground water table is lmbelow the bottom of the excavation. A 20 kN/m2 surcharge pressure is applied over a wide area at the ground surface. Assume the wall moves into the excavation. Consider long-tem analysis (as it is usually the more critical analysis in excavation problems). Ignore capillarity as shown 20 kPa Clayey sand T17 kNm Y-20 kNm 5 m c'-10 kPa...
Vout should be a sinusoid signal of 12Vp-p
Dc voltage to uA741 : +/-8.5V
Please simulate as well
please help, im completely lost on this
this is all of the information
Experiment 5. RC Sinusoidal Oscillators PURPOSE: This laboratory provides an introduction to the background, analysis and design of sinusoidal oscillators using RC feedback networks and active devices to achieve the criteria for continuous oscillations to occur. EQUIPMENT REQUIRED : 1 Operational amplifier u.A741 1 CEU development station Resistors and...
