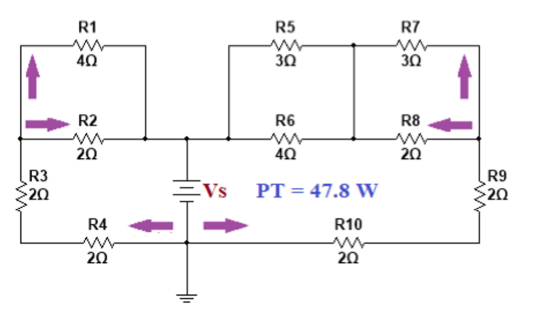

For the circuit below calculate the values of IR2,IR6,IR7,VR3,VR9
For the circuit below calculate the values of IR2,IR6,IR7,VR3,VR9
Homework Answers
Laboratory Measurements Make the circuit 2.1. Measure the voltages and currents and record the measured values...
Laboratory Measurements Make the circuit 2.1. Measure the voltages and currents and record the measured values in Table 2.1. Make the circuit 2.2. Measure the voltages and currents and record the measured values in Table 2.2. Make the circuit 2.3. Measure the voltages and currents and record the measured values in Table 2.3 Circuit 2.1 R1 A R3 1.2kohm 2.2kohm V2 R2 18V 3.3kohm Fig. 2.1 I2- IR3 Table 2.1VRi Calculated (coded) Measured 1- LR1 IR2 Circuit 2.2 R1 R3...
For the circuit shown below, using Ohm's law enter in an equation for IR1, IR2, IR3...
For the circuit shown below, using Ohm's law enter in an equation for IR1, IR2, IR3 IR4, IR5, and IR6,in terms of the voltage at nodes 1, (V1),2, (V2), 3, (V3), 4, (V4), R1, R2, R3, R4, R5, Rf6 A sample answer would be (V1-V2)yR1. If you are getting a syntax error, you might not be typing in the variables correctly. Do not try to add subscripts or any formatting, this will cause a syntax error as well. R1 R1...
4).- (5 Points) Determine V, and Vi 7 ETOV 220 V2 E5V IN THE CIRCUIT BELOW...
4).- (5 Points) Determine V, and Vi 7 ETOV 220 V2 E5V IN THE CIRCUIT BELOW FIND: RR MW SR 5 Points MW R, W0 R, Figure 2-2 1) In Figure 2-2, if you place a voltmeter's red lead on point E and its black lead on point H, you will be measuring. A) VR4 B) VR6 C) VR DVR5 2) To measure the current that flows through R6 in Figure 2-2, the circuit must be opened and the ammeter...
For the circuit shown below, calculate the following values: VR1(rms), VR2(p); IR3(pp) For the circuit shown...
For
the circuit shown below, calculate the following values: VR1(rms),
VR2(p); IR3(pp)
For the circuit shown below, calculate the following values · VRICRms); Veale); Irs(PP) 36 R486kr 24Voms w 4k2 For the circuit shown below, calculate the following values: VR1(RMS); VR2(P); 1R3(PP). upload your work. Ri 24 25 ker Reskor Ryker Life 4K2
Calculate the required values for the series circuit then build and measure the values: Built Correctly...
Calculate the required values for the series circuit then build and measure the values: Built Correctly (20 pts) R1 = 270ohm Serces Same voltage Sane Voltage VTS Vdc R2 = 560 ohm R3 = 820 ohm 두 - sere, R4 = 390 ohm VT = 5V Measured 5 Calculated 1. Total resistance 992.7551 2. Total current=_5mA 3. Voltage drop R1= C 1.35V 4. Current R1 R1= SMA 5. Voltage drop R2= 6. Current R2 IR2= 7. Voltage drop R3=_ 8....
R10 3300 R5 4700 R9 2200 R3 -V1 36800 -20 V ER2 310000 Vx R6 8200...
R10 3300 R5 4700 R9 2200 R3 -V1 36800 -20 V ER2 310000 Vx R6 8200 Calculate voltages VR2, VR3, VRS, VR6, VR9, VR10, and Vx: Calculate currents 12, 13, 15, 16, 19, and 110- -
Consider the circuit as shown below. R-2 92 Use Kirchoff's rules to calculate (a) the current...
Consider the circuit as shown below. R-2 92 Use Kirchoff's rules to calculate (a) the current through each resistor: Le. R1: [IR1] A R2: [IR2] A R3: [IR3] A R4: [IR4] A (b) the power supplied by each DC source;i.e. V1: [P1] Watts v2: [P2] Watts v3: [P3] Watts and (c) the power dissipated in each resistor; L.e. R1: [PR1] Watts R2: [PR2] Watts R3: [PR3] watts R4: [PR4] watts IR1 is equal to ?? Amps Answer: IR2 is equal...
Examine the circuit PROBLEM 4 (12 POINTS) The circuit below has been in this configuration for...
Examine the circuit
PROBLEM 4 (12 POINTS) The circuit below has been in this configuration for a l the following quantities. ong time. Compute R1 R3 I1 R2 Es00 ci 120uf R4 Compute lc Compute IR2 Compute IR4 Compute Vcl
For the Widlar current mirror circuit shown below, design the circuit to provide a current Iout=100µA,...
For the Widlar current mirror circuit shown below, design the
circuit to provide a current Iout=100µA, if
IR2=711µA. Hence, find the value of R3 (in
Ω), given that VT=25mV.
Vcc (+9 V) R3 20907205207 Q4 2N2907 lout R2 VEE (-9 V)
Given the circuit below, draw the output characteristic curve showing the load line, maximum values and actual currents and voltage on circuit your characteristic. Calculate the RB.
Please help me with this homework...Given the circuit below, draw the output characteristic curve showing the load line, maximum values, and
actual currents and voltage on the circuit your characteristic. Calculate the RB
Laboratory Measurements Make the circuit 2.1. Measure the voltages and currents and record the measured values in Table 2.1. Make the circuit 2.2. Measure the voltages and currents and record the measured values in Table 2.2. Make the circuit 2.3. Measure the voltages and currents and record the measured values in Table 2.3 Circuit 2.1 R1 A R3 1.2kohm 2.2kohm V2 R2 18V 3.3kohm Fig. 2.1 I2- IR3 Table 2.1VRi Calculated (coded) Measured 1- LR1 IR2 Circuit 2.2 R1 R3...
For the circuit shown below, using Ohm's law enter in an equation for IR1, IR2, IR3 IR4, IR5, and IR6,in terms of the voltage at nodes 1, (V1),2, (V2), 3, (V3), 4, (V4), R1, R2, R3, R4, R5, Rf6 A sample answer would be (V1-V2)yR1. If you are getting a syntax error, you might not be typing in the variables correctly. Do not try to add subscripts or any formatting, this will cause a syntax error as well. R1 R1...
4).- (5 Points) Determine V, and Vi 7 ETOV 220 V2 E5V IN THE CIRCUIT BELOW FIND: RR MW SR 5 Points MW R, W0 R, Figure 2-2 1) In Figure 2-2, if you place a voltmeter's red lead on point E and its black lead on point H, you will be measuring. A) VR4 B) VR6 C) VR DVR5 2) To measure the current that flows through R6 in Figure 2-2, the circuit must be opened and the ammeter...
For
the circuit shown below, calculate the following values: VR1(rms),
VR2(p); IR3(pp)
For the circuit shown below, calculate the following values · VRICRms); Veale); Irs(PP) 36 R486kr 24Voms w 4k2 For the circuit shown below, calculate the following values: VR1(RMS); VR2(P); 1R3(PP). upload your work. Ri 24 25 ker Reskor Ryker Life 4K2
Calculate the required values for the series circuit then build and measure the values: Built Correctly (20 pts) R1 = 270ohm Serces Same voltage Sane Voltage VTS Vdc R2 = 560 ohm R3 = 820 ohm 두 - sere, R4 = 390 ohm VT = 5V Measured 5 Calculated 1. Total resistance 992.7551 2. Total current=_5mA 3. Voltage drop R1= C 1.35V 4. Current R1 R1= SMA 5. Voltage drop R2= 6. Current R2 IR2= 7. Voltage drop R3=_ 8....
R10 3300 R5 4700 R9 2200 R3 -V1 36800 -20 V ER2 310000 Vx R6 8200 Calculate voltages VR2, VR3, VRS, VR6, VR9, VR10, and Vx: Calculate currents 12, 13, 15, 16, 19, and 110- -
Consider the circuit as shown below. R-2 92 Use Kirchoff's rules to calculate (a) the current through each resistor: Le. R1: [IR1] A R2: [IR2] A R3: [IR3] A R4: [IR4] A (b) the power supplied by each DC source;i.e. V1: [P1] Watts v2: [P2] Watts v3: [P3] Watts and (c) the power dissipated in each resistor; L.e. R1: [PR1] Watts R2: [PR2] Watts R3: [PR3] watts R4: [PR4] watts IR1 is equal to ?? Amps Answer: IR2 is equal...
Examine the circuit
PROBLEM 4 (12 POINTS) The circuit below has been in this configuration for a l the following quantities. ong time. Compute R1 R3 I1 R2 Es00 ci 120uf R4 Compute lc Compute IR2 Compute IR4 Compute Vcl
For the Widlar current mirror circuit shown below, design the
circuit to provide a current Iout=100µA, if
IR2=711µA. Hence, find the value of R3 (in
Ω), given that VT=25mV.
Vcc (+9 V) R3 20907205207 Q4 2N2907 lout R2 VEE (-9 V)
