Question

can you help me wirh this question please

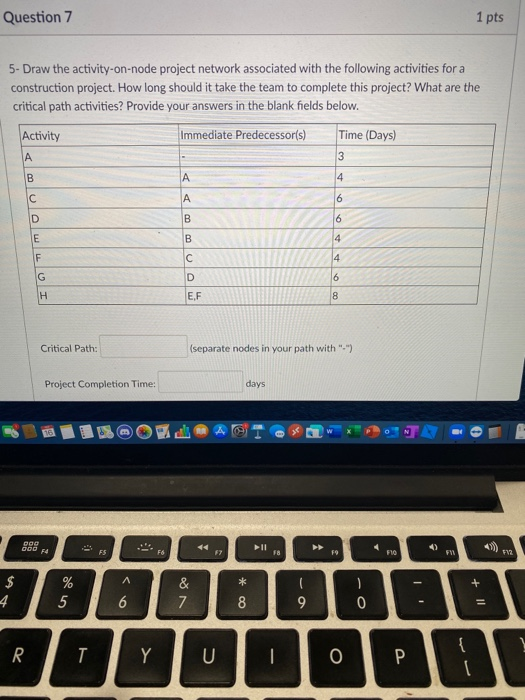

Question 7 1 pts 5- Draw the activity-on-node project network associated with the following activities for a construction project. How long should it take the team to complete this project? What are the critical path activities? Provide your answers in the blank fields below. Immediate Predecessor(s) Time (Days) Activity IA 3 B A 4 IC с A 6 D B 6 E B 4 IF c с 4 G D 6 H EF 8 Critical Path: (separate nodes in your path with "-") Project Completion Time: days DOO 000 Ft 0 II 4) FS F7 F8 19 FO FIL F12 * + $ 4 % 5 & 7 ) 0 6 8 9 { R. т Y U O P

Answer 1

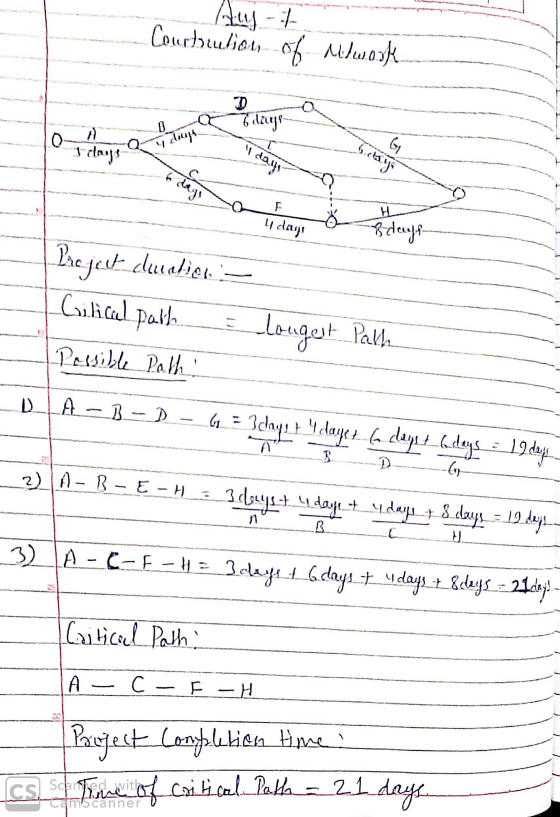

Auj- Courtouution of Mask D flags 0 o rj། I days u I clouge 1 days betag G o desi F H 11 days ftaff Pre jest corabien Gilical path longest Path Possible Path D. A-B-D G = 3caust i daget ( danst ( days = 19 days D -G 2) A - B - E-H 3_354yst 4 dayje + 4 days_+ 8 alayı = 19 dejta n B C 3) LA-E-F-H2_3clayit 6 daysy days+ 8clays = 21 dey.- Gitical Path С — Е H H Project Completion time [ cs, so Time of critical Path = 21 days

all possible paths :

A-B-D-G = 3 days + 4 days + 6days + 6 days = 19 days

A-B-E-H = 3 days + 4 days + 4days + 8 days = 19 days

A-C-F-H = 3 days + 6 days + 4 days + 8 days = 21 days

critical path : A-C-F-H = 3 days + 6 days + 4 days + 8 days = 21 days

critical path is a longest path among all possible paths which has longest time to complete the project..

project completion time = critical path time = longest time to complete a project = 21 days
