See Fig. 30. Find the current I1 (amps). The current direction shown is the assumed current...

See Fig. 30. Find the current I1 (amps). The current direction
   shown is the assumed current direction.  The three resistors in ohms are:
   R1=16, R2=18, R3= 7. The DC voltage supply is V1=11 volts.
Fig. 30
+-------------/\/\/\-----+
|                R3      |
|                        |
+-------------/\/\/\-----+
|               R2       |
|   ______               |
+--| +V1- |---/\/\/\-----+
   |______|     R1   --->
                      I1
0 0
Add a comment Improve this question Transcribed image text
Answer #1

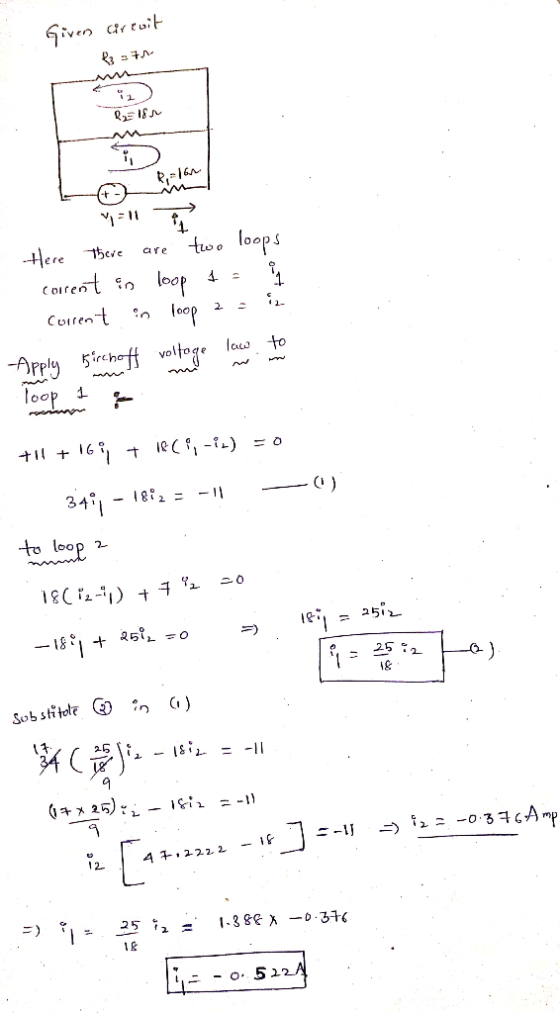

crti .-Here !ちce are two loops Col rent n loop voltoqe a o rch oop 2 12. 51
