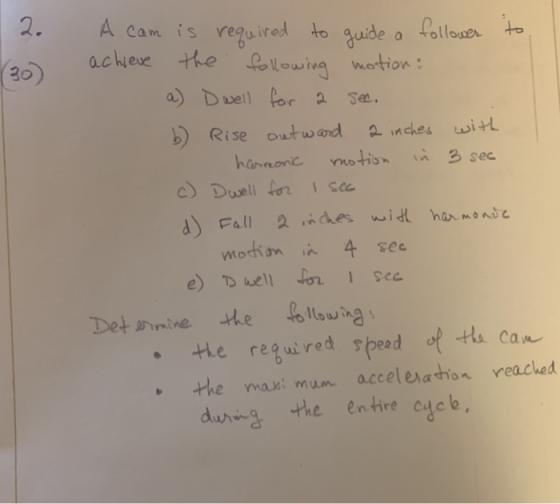

2. A cam is required to guide a follower to achieve...
1. (40 points) A double-dwell cam is to move a follower from 0 to 2" in 120°, dwell for 80°, fall in 90 and dwell for the remainder. The total cycle is 5 seconds. Using cycloidal motion for t...

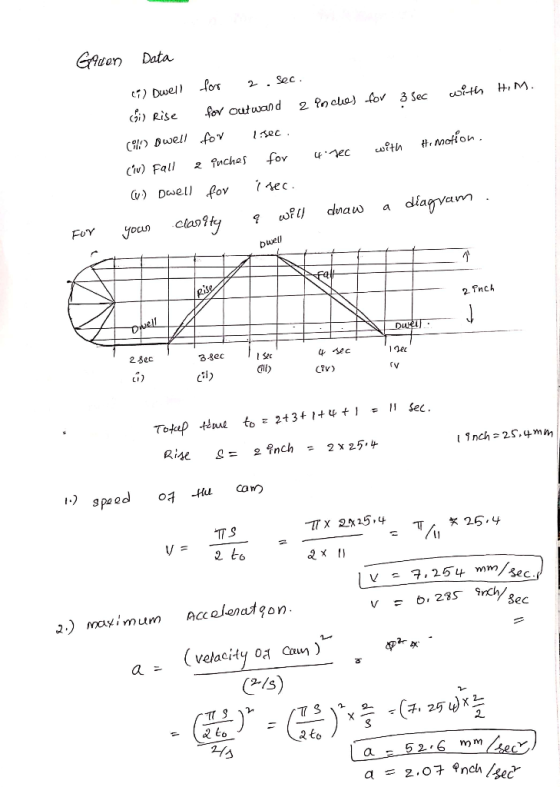

1. (40 points) A double-dwell cam is to move a follower from 0 to 2" in 120°, dwell for 80°, fall in 90 and dwell for the remainder. The total cycle is 5 seconds. Using cycloidal motion for the rise and 3-4-5 polynomial motion for the fall, find the follower displacement corresponding to the cam angle 0 at 90°, 180°, 230° and 320 respectively. Also find the maximum actual acceleration (in inch/sec2) during the entire motion cycle.
1. (40 points)...
A translating cam-follower is to be designed for a Rise-Dwell-Fall-Dwell (RDFD) application in which vibrations must be considered
A translating cam-follower is to be designed for a Rise-Dwell-Fall-Dwell (RDFD) application in which vibrations must be considered. The cam is to move the follower from 0 to 35 mm in 70°, dwell for 100, fall back to 0 mm in 80°, and dwell for the remainder of the cycle. In addition, the cam must rotate at an angular velocity of 60 RPM. The position (s), velocity (v), and acceleration (a) curves during the rise period are defined by the...
1. A follower is required that should rise through a total displacement of 10 inches with half cy...
1. A follower is required that should rise through a total displacement of 10 inches with half cycloidal motion in 130" of cam rotation and dwell at 10 inches for 90. Then the follower should return to the zero position with full simple harmonic motion in 90 of cam rotation and finally dwell for 50 before repeating the cycle. b. In an Excel spreadsheet determine the heights in each of the above segments for 0 360 a range of 0s8s3...
2 (30 p points) A follower rises through a total displacement of 6 inches with full rise cycloida...
2 (30 p points) A follower rises through a total displacement of 6 inches with full rise cycloidal motion in 130 of cam rotation and then dwells at 6 inches for 90. Then the follower returns to the zero position with full fall cycloidal motion in 90 of cam rotation and finally dwells for S0 before repeating the cycle. The cam rotates at a angular velocity of 10 rpm cew and angular acceleration of 3 rad/sec2 cw. 2π o 5...
Clear answer asap please!!! PROBLEM 2 A cam with translating roller follower is shown above. It...
Clear answer asap please!!!
PROBLEM 2 A cam with translating roller follower is shown above. It is observed that the cam axis and the follower axis intersect A portion of the cam curve is a 4-5-6-7 polynomial displacement through a rise of 0.5 in within S0° Determine the displacements (giving the units) when team has rotated 60% a) b) Determine the velocity s' (giving the units) when the n has rotated 60 % e) Determine the pressure angle (in degrees)...
