Calculate the following quantities using the figure below: 1) Vout (units: Vp) 2) VDC (units: V)...

Question

Question

Calculate the following quantities using the figure below:

1) V_out (units: V_p)

2) V_DC (units: V)

3) I_L (units: mA)

4) I_diode (units: mA)

5) f_out (units: Hz

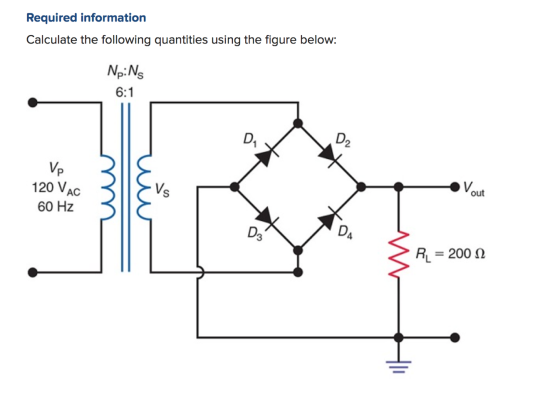

Required information Calculate the following quantities using the figure below: No:N 6:1 D D2 vo 120 VAC Vs Vout 60 Hz D3 DA

engineering Electrical-Engineering

Answer 1

Answer #1

ON Vs Vmax 120 VAC D3 R = 2004 20 osta Vp Vs al- Diodes & Load are in Series Doravy) Npins 6:1 Vp Di 60 HZ Vout → Vs = ypos v

Answer 2

Similar Homework Help Questions

Calculate the following quantities using the figure below: Np:Ns D. out Si R, 50 Ω 120...

Calculate the following quantities using the figure below: Np:Ns D. out Si R, 50 Ω 120 VAc 60 Hz but (units: 0) ん(units: mA) diode (units: mA) out (units: Hz)
In the circuit below, T1 is rated 12V RMS secondary voltage, D1, D2, D3 &D4 are IN4001 rectifying diodes and RL...

In the circuit below, T1 is rated 12V RMS secondary voltage, D1, D2, D3 &D4 are IN4001 rectifying diodes and RL is 1.8ΚΩ. Given that RI-2202, and R2 1.2KQ, use the formula provided to calculate the output voltage (Vo) of the LM317 voltage regulator. Provide an answer in engineering notation, correct to 3 significant figures. 1 A Vo= 1.25V (1 + R2/ R1) Da AC line C CT input 60 Hz NC D, CI 120 V/12 V R2 In the...
In the circuit below, T1 is rated 14.3V RMS secondary voltage, D1, D2, D3 & D4 are IN4001 rectifying diodes and...

In the circuit below, T1 is rated 14.3V RMS secondary voltage, D1, D2, D3 & D4 are IN4001 rectifying diodes and RL is 3.3KQ. Given that R1-5600, and R2-2.2K2, use the formula provided to calculate the output voltage (Vo) of the LM317 voltage regulator. Provide an answer in engineering notation, correct to 3 significant figures. 1 A Vo= 1.25V (1+ R2/ R1) D2 Ds CT AC line nput 60 Hz LM317 NC Di Со RL 120 V/ 14.3 v R2...

For the circuit shown in the figure below, calculate the following quantities. (Assume -4.00 V and...

For the circuit shown in the figure below, calculate the following quantities. (Assume -4.00 V and R-8.00 ?. ) 12.0 V 4.00 2 2.00 ? (a) the current in the 2.00-? resistor (Enter the magnitude.) mA (b) the potential difference between points a and b
A single-phase H-bridge topology below is operated with the input dc voltage Vdc=200 V, modulation index,...

A single-phase H-bridge topology below is operated with the input dc voltage Vdc=200 V, modulation index, ma=0.6 and switching frequency fs=1950 Hz. The fundamental frequency of the generated AC voltage is 50 Hz. a) Calculate the rms value of fundamental component b) Calculate the rms values of most significant harmonics (with at least %10 of amplitude of the biggest harmonics) for the pole voltage v10 indicated on the inverter c) Calculate the rms voltage value for the fundamental and for...
For the circuit shown in the figure below, calculate the following quantities. (Assume epsilon = 5.00...

For the circuit shown in the figure below, calculate the following quantities. (Assume epsilon = 5.00 V and R = 5.50 Ohm.) the current in the 2.00-Ohm resistor (Enter the magnitude.) mA the potential difference between points a and b V

For the circuit shown in the figure below, calculate the following quantities. (Assume E = 9.00...

For the circuit shown in the figure below, calculate the following quantities. (Assume E = 9.00 V and R = 7.50 ) 12.0 V 4.00 2 Hemo 2.00 w + R E (a) the current in the 2.00-n resistor (Enter the magnitude.) mA (b) the potential difference between points a and b V Additional Materials eBook
Chapter 16, Problem 16.025 Calculate vo(t) in the circuit shown in the figure below ifh(t) is...

Chapter 16, Problem 16.025 Calculate vo(t) in the circuit shown in the figure below ifh(t) is 200 cos(105t + 60°) mA, i2(t) is 100 sin( 105t + 90°) mA, and vs(t) = 10 sin(105t) V vcl!) 250 nF 36 Ohnvo() (a) Find the amplitude of vo(t) (b) Find the phase of vo(t) in degrees degrees Chapter 16, Problem 16.011 (Circuit Solution) Find Z in the network in the figure below 2? 1? 2? 2?
For the circuit shown in the figure (ε-3.50 V, R-5.00 Ω), calculate the following quantities. 12,0...

For the circuit shown in the figure (ε-3.50 V, R-5.00 Ω), calculate the following quantities. 12,0 V 4,00 Ω 2.00 Ω (a) Calculate the current in the 2.00 Ω resistor. (Enter the magnitude.) mA (b) Calculate the potential difference between points a and b. The ammeter shown in the figure below reads 2.94 A. Find the following. 15.0 V 7.00 Ω 5.00 Ω 2.00 Ω ε (a) 1A Consider the following figure, where ε,-12 V and ε2-9.2 v. 10.011 6.00...

Table 1: Zener Diode Parameters Description Quantity Value 1.0 W Po Absolute maximum power dissipation Typical...

Table 1: Zener Diode Parameters Description Quantity Value 1.0 W Po Absolute maximum power dissipation Typical zener voltage 5.6 V Minimum zener (knee) current 1.0 mA 45 mA Typical zener current Maximum zener current IZM Zz Zener impedance Zener knee impedance 179 mA 52 600 22 25 °C ZzK ΤΑ Rated ambient temperature 1N4004 Rs = 100 22 220 uF 1N4734A Transformer Vs = 12.6 VRMS 1N4004 60 Hz 2. Going back to Figure 1, remove the load resistance (or,...
