Need help with the 3rd part thanks

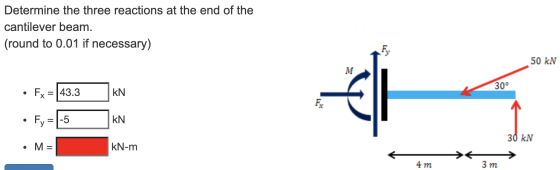

Need help with the 3rd part thanks Determine the three reactions at the end of the...
For the cantilever beam shown, determine the reactions at the fixed end. The length of the beam is L 3 m. Enter forces in kilonewtons and moment in kN·m. n(x)-(3 kN/m) sin( TX A, magnitude KN direction magnitudee direction KN MA magnitude direction kN·m Select-
i need the answer quickly fast as you can
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. Er is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m A 9 m 3 m
I need help with this problem.
A cantilever beam is subjected to a linearly distributed load, with W, = 10 kN/m and to an inclined point load F equal to 20 kN, as shown in the figure. The length of the beam is L=10 m. Make a cut at distance x from the free end of the cantilever, as shown in the figure, and use the method of sections to derive expressions for the internal resultant loadings at the cross-section...
Using force method , determine the reactions of the
supports for the beam shown in Figure ( 5 ) . Then draw shear and
bending moment diagrams for the beam El is constant Use conjugate
beam method to determine deflections ,
6 m 50 KN 200 kN. 9 m - 3 m Fig. (5) BEST WISHES
It’s statics please I need clear answer quickly. Thanks
2 or the beam and loading shown: (a Replace the distributed forces with a 16 kN/m ingle resultant force and location of its application. 6 KN 8 KN/m (b) Determine the reactions at supports A and B. 3 m 6 m
4. Determine the slope and deflection at end point C of the cantilever beam shown in the figure. Use E = 200 GPa, I = 10 x 106 mm 3 kN/m 2 kN.m A B 2 m 2 m
Mechanics of Materilas & Structures (please help me in 40
minutes to 1 hour) urgent. Thanks…
Q6. A space truss as shown in Figure Q6 is supported by a ball and socket at joint D. E and F. A point load of 30 kN is applied at joint A a point load of 40 kN is applied at joint B, and a point load of 50 kN at joint C, as indicated in the figure. (a) Prove that the space...
4. Use singularity function method to solve the problem. The cantilever beam has modulus of elasticity E and bending moment of inertia I. (1) Draw the free body diagram of the beam (2pts). (2) Find the reactions at the supports (3pts). (3) Find the loading (intensity of load) of the beam in singularity function form (4 pts). (4) What is the vertical shear function like? (4pts) (5) Houw much is the moment? (4pts) (6) Express the elastic curve of the...
Determine the forces acting in all the members of the truss
shown in Fig. 6–9a
.
I need help understanding the bold parts below of
the solution. Please explain the methods/math involved with
steps:
Joint C
.Fx=0;
- FCD cos 30 + FCB sin 45=0
Fy=0;
1.5 kN + FCD sin 30 - FCB cos 45=0
These two equations must be solved simultaneously for
each of the two unknowns. Note, however, that a direct solution for
one of the unknown...
The truck exerts three forces shown on the girders of the bridge. Determine the reactions at the supports when the truck is in the position show. The girders are connected together by a short vertical link DC 5 ft 5000 lb 4000 lb 2000 lb at 12 fty 9 с A B S5 ft D -48 ft 10 ft S ft 2 ft Determine the internal normal force, shear force, and moment at point C. 50 KN 30 KN А...
