Homework Answers
Matlab Code below: Hope this helps!
% converting m/s to mph, 1m/s = 2.237 mph
A = 5*(2.237^2)/2.237;
B = 0.4*(2.237^3)/(2.237^2);
V = 0:0.2:250; % this is velocity in mph, since we have changed
constant values to mph.
P = A*V.^2 + B*V.^3;
P_hp = P / 745.7;
plot(V, P_hp);
grid on
grid minor

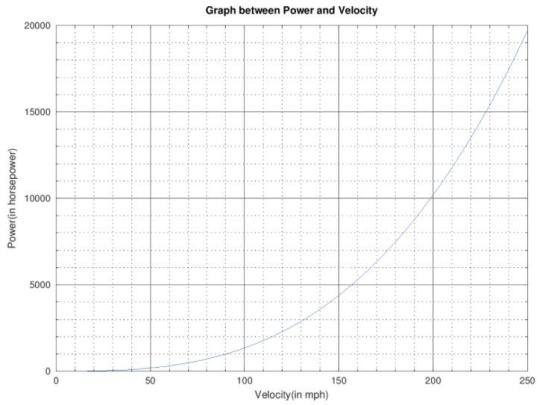

title('Graph between Power and Velocity');
xlabel('Velocity(in mph)');
ylabel('Power(in horsepower)');
print -dpng figure.png

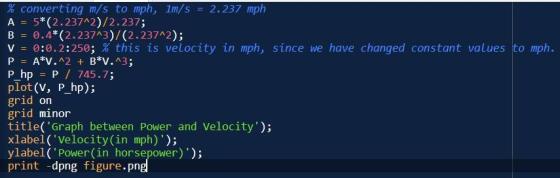

Please refer to the screenshot of the code to understand the
indentation of the code.
Add Answer to:

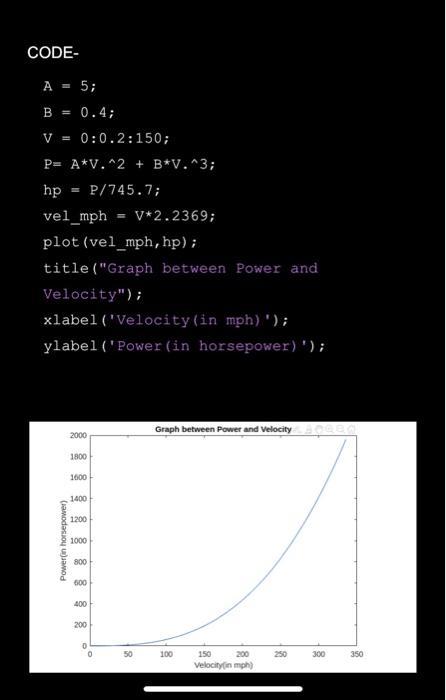

need help with this graph in matlab here is my prior code and
