Question

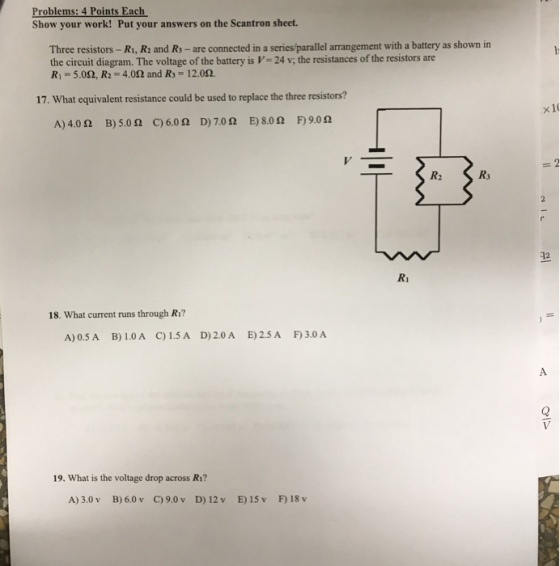

Problems: 4 Points Each Show your work! Put your answers on the Scantron sheet. Three resistors - Ri, R: and Rs-are connected in a series/parallel arrangement with a battery as shown in the circuit diagram. The voltage of the battery is V-24 v, the resistances of the resistors are RI 5.0?, R2 4.0? and R3-1 2.0?. 17. What equivalent resistance could be used to replace the three resistors? x 1 A) 400 B) 5.0 ? C)600 D) 7.0 ? E) 8.0 ? F)9.0 ? R3 412 18. What current runs through Ri? A) 0.5 A B)1.0? ?) 1.5A D) 2.0 A E)2.5 A F)3.0 A 19. What is the voltage drop across R1? A) 3.0 v B) 6.0 v C) 9.0 v D) 12 v E)15v F18 v
0 0
Add a comment Improve this question Transcribed image text
Answer #1

(r4)

Add a comment
