Could you please give the specific reasons and explanations? Not just the right answer, thanks a lot.
Homework Answers
The resource allocation graph is the diagrammatic representation of the state of a system. It denotes the complete information about all the processes which are holding some resources or waiting for some resources.
It also contains the knowledge about all the instances of all the resources whether they are available or being used by the processes. In Resource allocation graph, the process is represented by a Circle while the Resource is represented by a rectangle.
A deadlock happens in operating system when two or more processes need some resource to complete their execution and these resources are held by the other processes.
The principle is that if a resource allocation graph does not have a cycle then the system is not in a deadlock state and if there is cycle then the system may or may not be in a deadlocked state and it depends upon the number of instances of the currently available resources at that time.

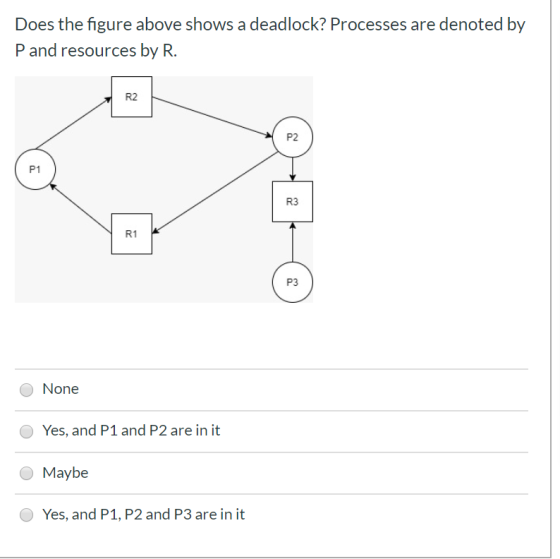

For the above diagram mentioned in the question there is a cycle
P1-> R2-> P2-> R1
So process P1 and process P2 are surely in a deadlocked state so second option is correct.
First and third Option none and maybe is incorrect
Regarding last option which is as given yes P1, P2 and P3 are in it ,is also incorrect since there is no cycle in resource allocation graph for processes P1,P2 and P3..
