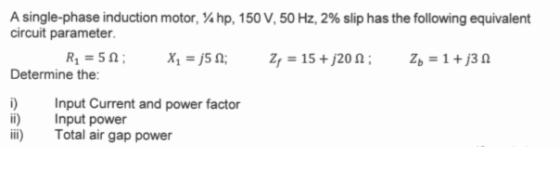

A single-phase induction motor, hp, 150 V, 50 Hz, 2% slip has the following equivalent circuit parameter R = 50; X = j512; 2

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Hello.

If you have any doubt regarding solution then please let me know in the comments.

Thank you.

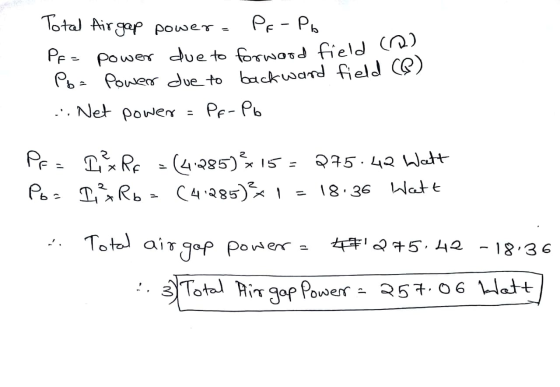

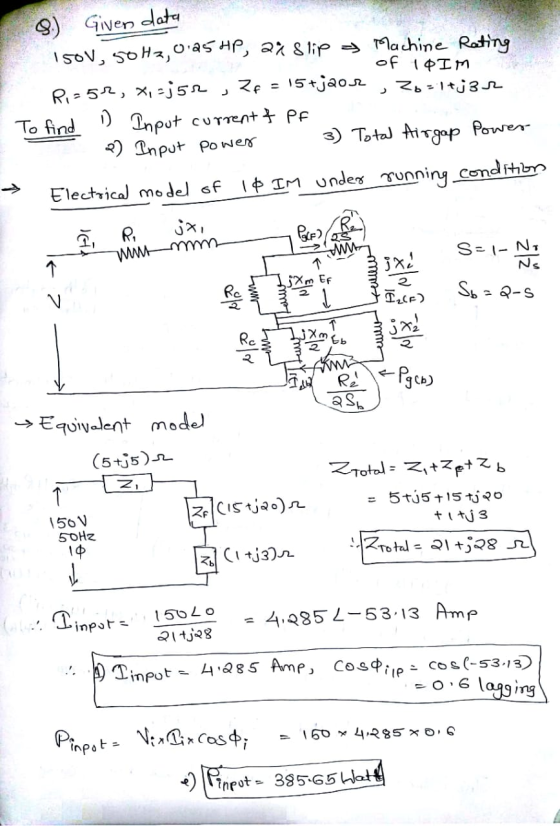

8.) Given data Isov, 50Hz, 0.25 HP, 2% Slip & Machine Rating of 10IM R-52, X,;51, ZF = 15+jaor, Zo=1+j32 To find in Input curTotal Air gap power Pf-P Pf= power due to forward field (2) Pb= Power due to backward field (Q) ... Net power = Pf-Po PF = I
