Homework Answers
Add Answer to:
fulied
فلود

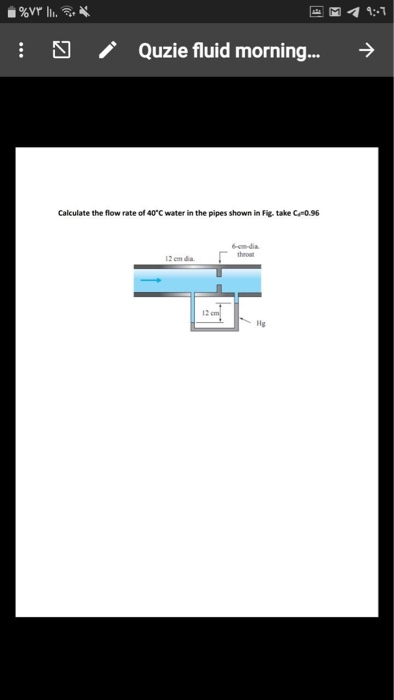

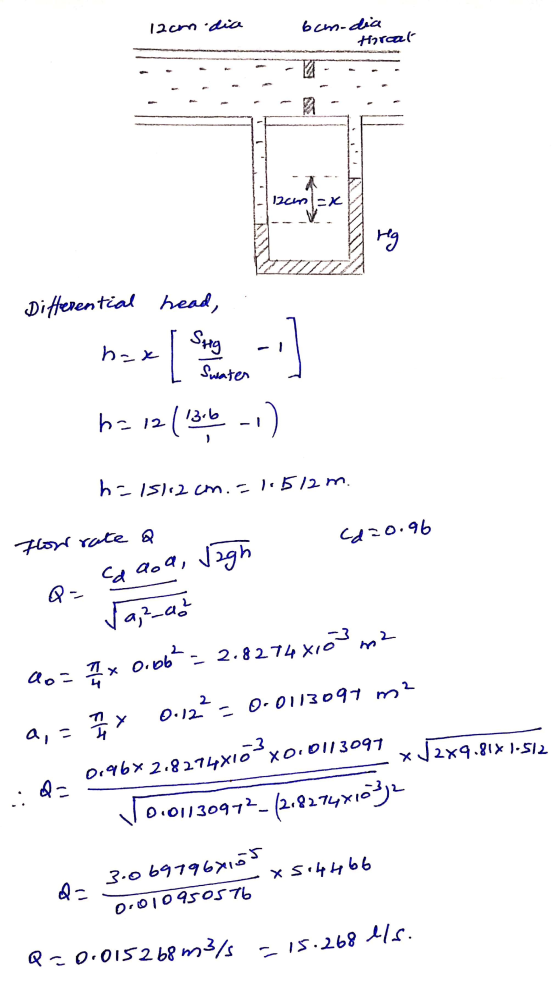

%VP . 9:-1 Quzie fluid morning... Calculate the flow rate of 40'c water in...
MEC 432 1- Estimate the flow rate and the pressures at A, B, C, and D.The...
MEC
432
1- Estimate the flow rate and the pressures at A, B, C, and D.The elevations are shown. Draw the TEL and HGL - el. 12 m el. 10 m C 8 cm dia. Water el. 3 m D 3 cm dia el. O
Problem 5: The water flow through a horizontal pipe is split into two flows as shown...
Problem 5: The water flow through a horizontal pipe is split into two flows as shown in the figure below. Pipes areas are D = 15 cm and D2 = D3 = 10 cm. The flow discharge at pipes 2 and 3 are equal to 100 1s. Calculate the force acting at section 1 on flange bolts. Assume that fluid is ideal. (ywater = 9.810 kN/m², poil = 998 kgm?) 30° gal 30° 0 3
Determine the differential height,&! the water manometer of the oil flow rate
determine the differential height,&! the water manometer
of the oil flow rate
CHE 3315 FLUID MECHANICS PROBLEM SHEET 10: PIPE NETWORKS AND FLOW MEASUREMENT 1. Water flows into the 2-inch-diameter galvonized iron pipe shown below at 0.3 ft3/s. If the pipe branches into two 1-inch diameter pipes ABD and ACD, which are 4 ft and 6 ft long repectively. (a) determine the flow rate through each pipe in m3/s, neglecting minor losses, (b) determine the pressure drop across each branch....
3. Calculate the volume flow rate in units of m/s through the 7.874" diameter tube in...
3. Calculate the volume flow rate in units of m/s through the 7.874" diameter tube in Fig. 2 if the flowing liquid is water and the manometer fluid is mercury. (30 points) Plate 7.874 in D. = 10 cm V, = 8 m/s Figure 1 Figure 2
fluid mechanics please fast 1. (15 points) Water (p-1g/cm) is flowing in pipes shown in Figure...
fluid mechanics please fast
1. (15 points) Water (p-1g/cm) is flowing in pipes shown in Figure below. Use Bernoull's equation to calculate velocity of water at point B. - Fluid velocity in the large diameter pipe is 1m/s. - Pressure at point 2 is measured with U-tube mercury manometer (Pmercury-13,600kg/m) - h1-0.3m, h2-6cm - assume that the acceleration gravity g-10m/s 2 Manometer shows 0.7kPa pressure Ji h1
QUESTION 1 (10 Marks) a) State two assumptions for the Bernoulli equation and explain why that...
QUESTION 1 (10 Marks) a) State two assumptions for the Bernoulli equation and explain why that assumptions been made. (2 marks) b) Analyze the venturi meter in Fig 1 for flow rate of the air jet coming out from the throat as shown. State all your assumptions in doing so. Assume the air density is 1.28 kg/m² [6 marks) c) If the water level is only 1 cm, how much would Vichange? Justify your answer. No calculation needed. [2 marks]...
Water at 20° flows in pipeline system shown below (Fig. 1) at rate of 32400 Vhr....
Water at 20° flows in pipeline system shown below (Fig. 1) at rate of 32400 Vhr. Pipe 1 is 15m long and 0.044 m outer diameter and pipe 2 is 100m long and 0.034m outer diameter. The thickness of both pipes is 2mm. Pipe 1 is a ductile iron uncoated pipe and pipe 2 is ductile iron coated pipe. There are totally 4 elbows in the system (two elbows in each pipe) and the elbows are 90° street elbows. All...
ME Fluid Mechanics Please Help! Problem 3 Water flows from a large reservoir filled to a...
ME Fluid Mechanics Please Help!

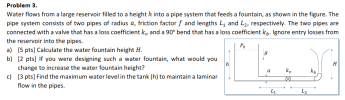

Problem 3 Water flows from a large reservoir filled to a height h into a pipe system that feeds a fountain, as shown in the figure. The pipe system consists of two pipes of radius a, friction factor f and lengths L1 and L2, respectively. The two pipes are connected with a valve that has a loss coefficient k, and a 90% bend that has a loss coefficient kb. Ignore entry losses from the reservoir...
In a pharmaceutical plant a reactant (assume with properties of water at 10°C) and flow rate...
In a pharmaceutical plant a reactant (assume with properties of water at 10°C) and flow rate of 200 g/min must be directed through a pipe across a 300 m bridge. There are two options for he pipe: a 1 cm diameter pipe and a 2 cm diameter pipe. 1) Find the average fluid velocity for each pipe 2) Find the Reynolds number for the flow in each pipe 3) Find the pressure drop due to friction losses across the length...
Water at 20° flows in pipeline system shown below (Fig.1) at rate of 32400 1hr. Pipe...
Water at 20° flows in pipeline system shown below (Fig.1) at rate of 32400 1hr. Pipe 1 is 15m long and 0.044 m outer diameter and pipe 2 is 100m long and 0.034m outer diameter. The thickness of both pipes is 2mm. Pipe 1 is a ductile iron uncoated pipe and pipe 2 is ductile iron coated pipe. There are totally 4 elbows in the system (two elbows in each pipe) and the elbows are 90° street elbows. All pipes...
MEC
432
1- Estimate the flow rate and the pressures at A, B, C, and D.The elevations are shown. Draw the TEL and HGL - el. 12 m el. 10 m C 8 cm dia. Water el. 3 m D 3 cm dia el. O
Problem 5: The water flow through a horizontal pipe is split into two flows as shown in the figure below. Pipes areas are D = 15 cm and D2 = D3 = 10 cm. The flow discharge at pipes 2 and 3 are equal to 100 1s. Calculate the force acting at section 1 on flange bolts. Assume that fluid is ideal. (ywater = 9.810 kN/m², poil = 998 kgm?) 30° gal 30° 0 3
determine the differential height,&! the water manometer
of the oil flow rate
CHE 3315 FLUID MECHANICS PROBLEM SHEET 10: PIPE NETWORKS AND FLOW MEASUREMENT 1. Water flows into the 2-inch-diameter galvonized iron pipe shown below at 0.3 ft3/s. If the pipe branches into two 1-inch diameter pipes ABD and ACD, which are 4 ft and 6 ft long repectively. (a) determine the flow rate through each pipe in m3/s, neglecting minor losses, (b) determine the pressure drop across each branch....
3. Calculate the volume flow rate in units of m/s through the 7.874" diameter tube in Fig. 2 if the flowing liquid is water and the manometer fluid is mercury. (30 points) Plate 7.874 in D. = 10 cm V, = 8 m/s Figure 1 Figure 2
fluid mechanics please fast
1. (15 points) Water (p-1g/cm) is flowing in pipes shown in Figure below. Use Bernoull's equation to calculate velocity of water at point B. - Fluid velocity in the large diameter pipe is 1m/s. - Pressure at point 2 is measured with U-tube mercury manometer (Pmercury-13,600kg/m) - h1-0.3m, h2-6cm - assume that the acceleration gravity g-10m/s 2 Manometer shows 0.7kPa pressure Ji h1
QUESTION 1 (10 Marks) a) State two assumptions for the Bernoulli equation and explain why that assumptions been made. (2 marks) b) Analyze the venturi meter in Fig 1 for flow rate of the air jet coming out from the throat as shown. State all your assumptions in doing so. Assume the air density is 1.28 kg/m² [6 marks) c) If the water level is only 1 cm, how much would Vichange? Justify your answer. No calculation needed. [2 marks]...
Water at 20° flows in pipeline system shown below (Fig. 1) at rate of 32400 Vhr. Pipe 1 is 15m long and 0.044 m outer diameter and pipe 2 is 100m long and 0.034m outer diameter. The thickness of both pipes is 2mm. Pipe 1 is a ductile iron uncoated pipe and pipe 2 is ductile iron coated pipe. There are totally 4 elbows in the system (two elbows in each pipe) and the elbows are 90° street elbows. All...
ME Fluid Mechanics Please Help!
Problem 3 Water flows from a large reservoir filled to a height h into a pipe system that feeds a fountain, as shown in the figure. The pipe system consists of two pipes of radius a, friction factor f and lengths L1 and L2, respectively. The two pipes are connected with a valve that has a loss coefficient k, and a 90% bend that has a loss coefficient kb. Ignore entry losses from the reservoir...
In a pharmaceutical plant a reactant (assume with properties of water at 10°C) and flow rate of 200 g/min must be directed through a pipe across a 300 m bridge. There are two options for he pipe: a 1 cm diameter pipe and a 2 cm diameter pipe. 1) Find the average fluid velocity for each pipe 2) Find the Reynolds number for the flow in each pipe 3) Find the pressure drop due to friction losses across the length...
Water at 20° flows in pipeline system shown below (Fig.1) at rate of 32400 1hr. Pipe 1 is 15m long and 0.044 m outer diameter and pipe 2 is 100m long and 0.034m outer diameter. The thickness of both pipes is 2mm. Pipe 1 is a ductile iron uncoated pipe and pipe 2 is ductile iron coated pipe. There are totally 4 elbows in the system (two elbows in each pipe) and the elbows are 90° street elbows. All pipes...
