Question

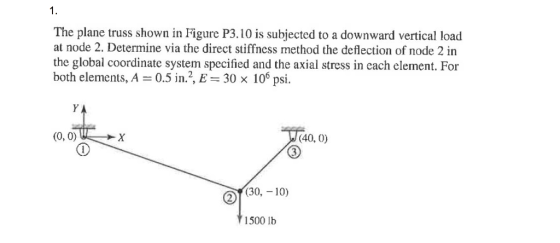

1. The plane truss shown in Figure P3.10 is subjected to a downward vertical load at node 2. Determine via the direct stiffncss method the deflection of node 2 in the global coordinate system specified and the axial stress in each element. For both elements, A 0.5 in.2, E 30 x 106 psi. S1. (0,0) и х (40. 0) of30,-10) 1500 lb

0 0
Add a comment Improve this question Transcribed image text
