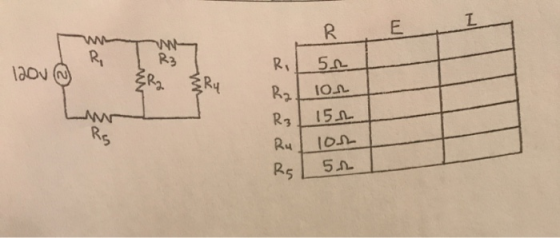

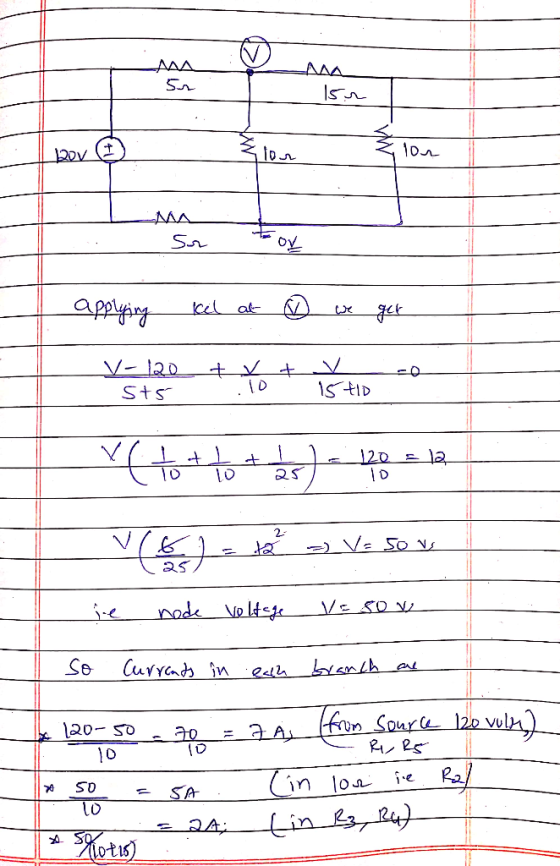

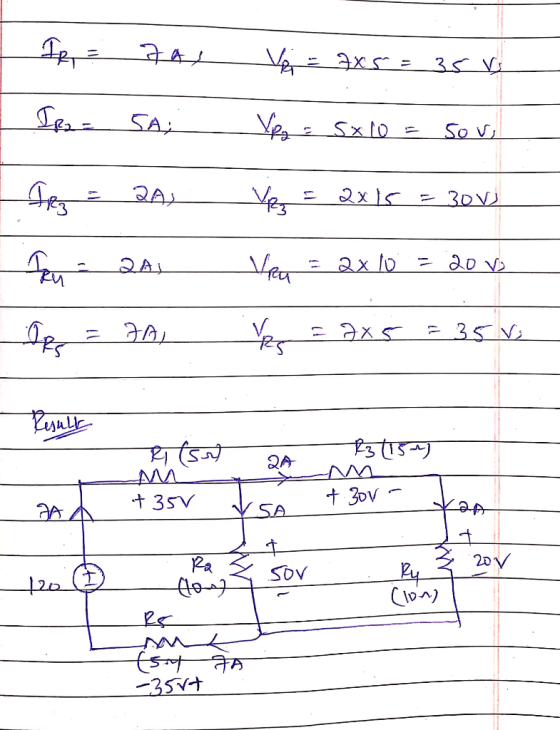

![. MA sor Sor toy applying kcl at ♡ we get sts 1. Isto vt tot to be a photo (6] = to a V. so w ie node voltage Vesov so Curren](http://img.homeworklib.com/questions/4bdb6350-9660-11eb-85fe-0b9c772862e3.png?x-oss-process=image/resize,w_560)
If you have any doubts please comment below I'll definitely respond to your comments....
Thank you
Add Answer to:
I need help solving for voltage(E) and Current(I). All work
will be helpful to me so...
PLEASE HELP ME WITH THE CALCULATIONS, I NEED THE VOLTAGE THEORY AND VOLTAGE IDEAL CALCULATIONS. R1...
PLEASE HELP ME WITH THE CALCULATIONS, I NEED THE VOLTAGE THEORY
AND VOLTAGE IDEAL
CALCULATIONS.
R1 ww 100kn VOM DC 100kOhm (DMM,OSC) R2 10kn R3 R4 0.000 V1 5 V 100kn 1.0M R2 10k V(ideal) When R(VOM)= o0 2 V (theory) R3-100k R4 1MQ Reff R2*R(VOM) (R2+R(VOM)) 10*50(10+50) 8.33 k V(theory) V1 Reff (R1+Reff) V(ideal)=V1*R2/(R1+R2)|
I need help solving this problem! I do not understand the underlying concepts so a detailed...
I need help solving this problem! I do not understand the
underlying concepts so a detailed explanation with work shown would
be greatly appreciated!
For the circuit in Figure 1, you need to calculate the current I2 and the voltage...
For the circuit in Figure 1, you need
to calculate the current I2 and the voltage
across the current source. (10 marks).
B1. For the circuit in Figure 1, you need to calculate the currently and the voltage across the current source. (10 marks). R2 = 6.222 12 R 512 R4 8.212 2.5 A R3 34.7.12 E 10 V
please show work when solving for this problem. thank you Consider the circuit shown in the...
please show work when solving for this problem. thank
you
Consider the circuit shown in the Figure. Ri= 2.00 Q, R,= 10.0 1, Rg = 5.000, R4 = 4.00 9, Rş= 3.00 2,8 = 8.00 V. a Calculate the equivalent resistance of the circuit. b) Calculate the total current in the circuit. c) Calculate the voltage drop across the R1 resistor d) Calculate the voltage across the Rs resistor. e) Calculate the current in the Rş resistor. R2 RA R3...
help me plz with this 1 ) Problem #4 Given that data R = 1.02S2, R2...
help me plz with this
1 ) Problem #4 Given that data R = 1.02S2, R2 = 1.5k 2, R3 = 4.0k1, R1 = 3.0k2, and AV, = 20V (a) Find the equivalent resistance and source current (b) Find the current through each resistor (c) Find the voltage across each resistor (d) Find the power lost through each resistor Note:Show ALL work, and organize your data in a table. N R3 R4
Hi I need help with answers 11-15. thank you The next three questions are about this...
Hi I need help with answers 11-15. thank you
The next three questions are about this circuit. The voltage of
the battery is 12 V, and the values of the resistances are:
R1 = 5 ohms, R2 = 10 ohms, R3 = 15
ohms, and R4 = 20 ohms.
The next three questions pertain to the following situation.
11) R1 and R4
are in:
parallel
series
neither
12) Compare the magnitude of the
voltage across R2 and R4
V2 > V4
V2...
hi i need help with questions 11-15 !! Apps YouTube M Gmail 9 Maps I PHYS...
hi i need help with questions 11-15
!! Apps YouTube M Gmail 9 Maps I PHYS 101 Physic Suure physchow obrepository The next three questions are about this circuit. The voltage of the battery is 12 V, and the values of the resistances are: R, 5 ohms, R, 10 ohms, Ry - 15 ohms, and R 20 ohms R2 R R4 R3 11) R, and Rare in: parallel series neither 12) Compare the magnitude of the voltage across R2 and...
I need help solving for number 2... I already have the answer so please teach me...
I need help solving for number 2... I already have the answer
so please teach me how to solve it. I want to understand.
the follwing dati dre for a system no P (AT) 0.000 0.120 0 180 0.110 0,350 0.350 ① . How does the rate of the fod rx n compare w tke rate of the reverse rxn affer 45 seconds? Aftee 902 Gets lower Pressure her pressere 45 → 90 :
need help solving this problem. show work so i can understand please. 6. At 25°C, a...
need help solving this problem. show work so i can understand
please.
6. At 25°C, a steel rod is 2 cm in diameter. It is to fit a hollow steel ring of diameter 1.995 cm. What temperature should the ring be heated to if the rod is to just fit in it? Alternatively, can the rod be subjected to some temperature change to get the same effect? Take the coefficient of linear expansion of steel=1.2 X 10-5/°Celsius
I had trouble understanding the previous posts to this question, could you explain how after how...
I had trouble understanding the previous
posts to this question, could you explain how after how the answer
is gotten as well as the formulas utilized (Voltage/Current laws
etc)? Much will appreciated if could be done so. Thanks!
2) In the circuit below, R = 3612, R2 = 4092, R2 = 8092, R = 24092, and E = 120 V w R1 R4 w E R2 WW R3 a) Find the equivalent resistance in the circuit b) Find the current...
PLEASE HELP ME WITH THE CALCULATIONS, I NEED THE VOLTAGE THEORY
AND VOLTAGE IDEAL
CALCULATIONS.
R1 ww 100kn VOM DC 100kOhm (DMM,OSC) R2 10kn R3 R4 0.000 V1 5 V 100kn 1.0M R2 10k V(ideal) When R(VOM)= o0 2 V (theory) R3-100k R4 1MQ Reff R2*R(VOM) (R2+R(VOM)) 10*50(10+50) 8.33 k V(theory) V1 Reff (R1+Reff) V(ideal)=V1*R2/(R1+R2)|
I need help solving this problem! I do not understand the
underlying concepts so a detailed explanation with work shown would
be greatly appreciated!
For the circuit in Figure 1, you need
to calculate the current I2 and the voltage
across the current source. (10 marks).
B1. For the circuit in Figure 1, you need to calculate the currently and the voltage across the current source. (10 marks). R2 = 6.222 12 R 512 R4 8.212 2.5 A R3 34.7.12 E 10 V
please show work when solving for this problem. thank
you
Consider the circuit shown in the Figure. Ri= 2.00 Q, R,= 10.0 1, Rg = 5.000, R4 = 4.00 9, Rş= 3.00 2,8 = 8.00 V. a Calculate the equivalent resistance of the circuit. b) Calculate the total current in the circuit. c) Calculate the voltage drop across the R1 resistor d) Calculate the voltage across the Rs resistor. e) Calculate the current in the Rş resistor. R2 RA R3...
help me plz with this
1 ) Problem #4 Given that data R = 1.02S2, R2 = 1.5k 2, R3 = 4.0k1, R1 = 3.0k2, and AV, = 20V (a) Find the equivalent resistance and source current (b) Find the current through each resistor (c) Find the voltage across each resistor (d) Find the power lost through each resistor Note:Show ALL work, and organize your data in a table. N R3 R4
Hi I need help with answers 11-15. thank you
The next three questions are about this circuit. The voltage of
the battery is 12 V, and the values of the resistances are:
R1 = 5 ohms, R2 = 10 ohms, R3 = 15
ohms, and R4 = 20 ohms.
The next three questions pertain to the following situation.
11) R1 and R4
are in:
parallel
series
neither
12) Compare the magnitude of the
voltage across R2 and R4
V2 > V4
V2...
hi i need help with questions 11-15
!! Apps YouTube M Gmail 9 Maps I PHYS 101 Physic Suure physchow obrepository The next three questions are about this circuit. The voltage of the battery is 12 V, and the values of the resistances are: R, 5 ohms, R, 10 ohms, Ry - 15 ohms, and R 20 ohms R2 R R4 R3 11) R, and Rare in: parallel series neither 12) Compare the magnitude of the voltage across R2 and...
I need help solving for number 2... I already have the answer
so please teach me how to solve it. I want to understand.
the follwing dati dre for a system no P (AT) 0.000 0.120 0 180 0.110 0,350 0.350 ① . How does the rate of the fod rx n compare w tke rate of the reverse rxn affer 45 seconds? Aftee 902 Gets lower Pressure her pressere 45 → 90 :
need help solving this problem. show work so i can understand
please.
6. At 25°C, a steel rod is 2 cm in diameter. It is to fit a hollow steel ring of diameter 1.995 cm. What temperature should the ring be heated to if the rod is to just fit in it? Alternatively, can the rod be subjected to some temperature change to get the same effect? Take the coefficient of linear expansion of steel=1.2 X 10-5/°Celsius
I had trouble understanding the previous
posts to this question, could you explain how after how the answer
is gotten as well as the formulas utilized (Voltage/Current laws
etc)? Much will appreciated if could be done so. Thanks!
2) In the circuit below, R = 3612, R2 = 4092, R2 = 8092, R = 24092, and E = 120 V w R1 R4 w E R2 WW R3 a) Find the equivalent resistance in the circuit b) Find the current...
